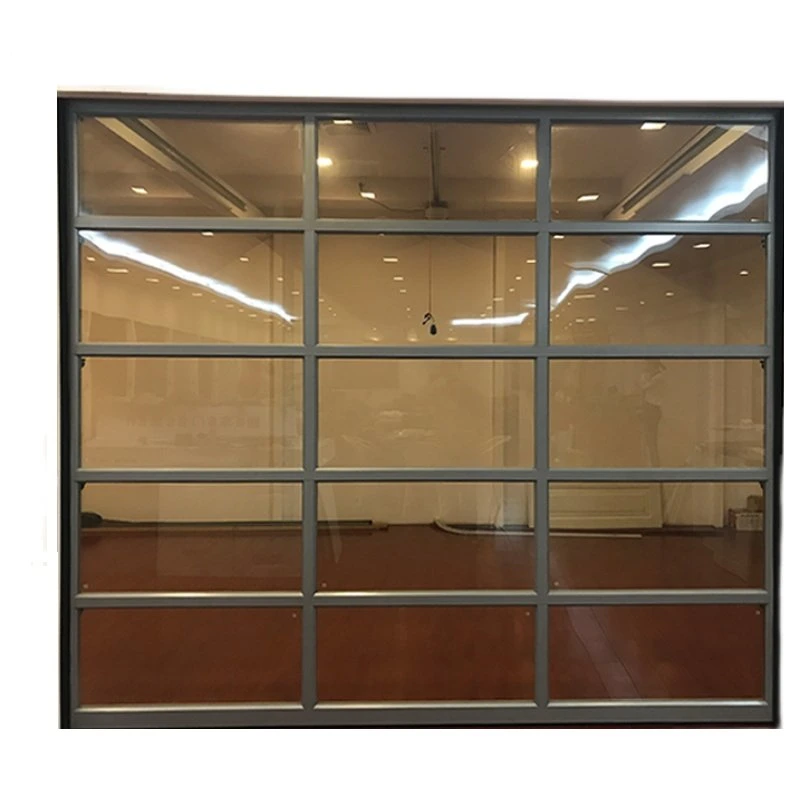

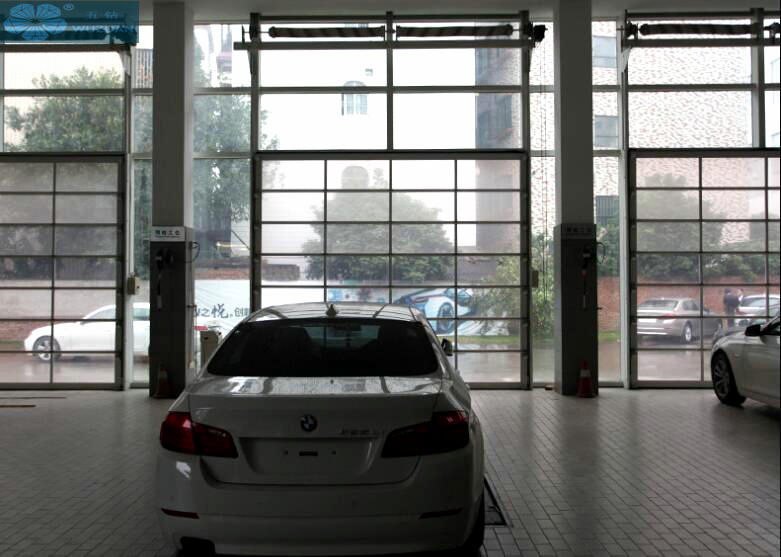

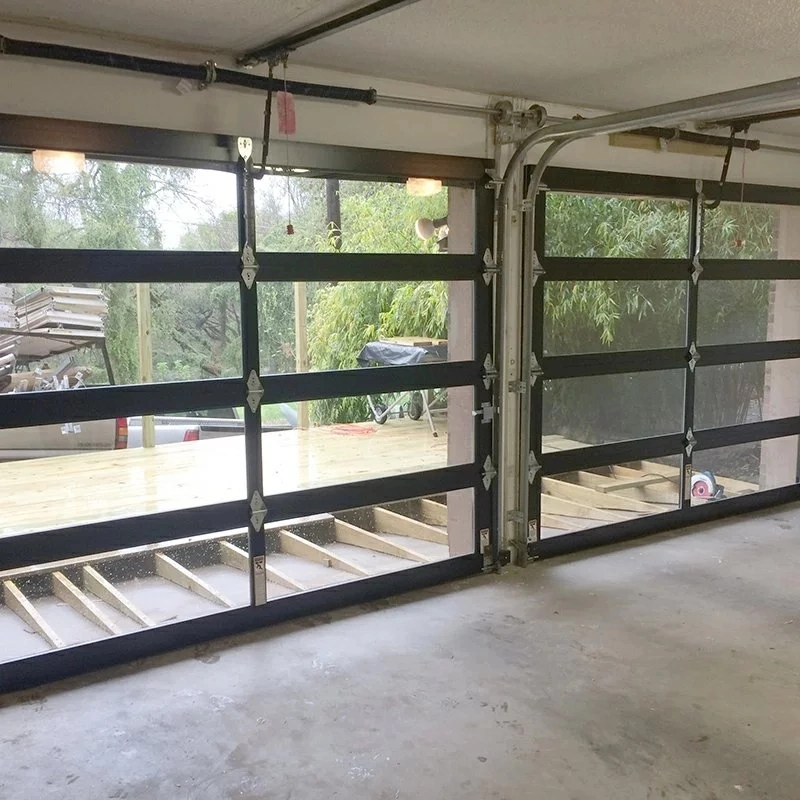

Aluminum Alloy Electric Modern Sliding Sectional Automatic Tempered Glass Panel Organic Glass Sectional Doors

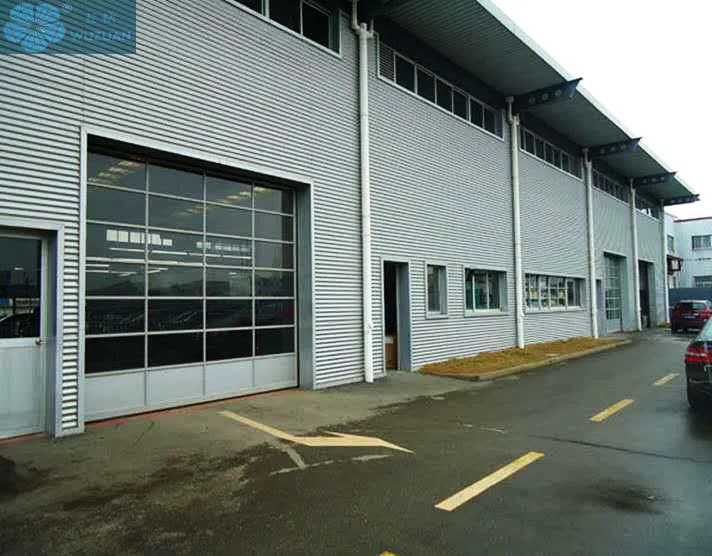

Scope of application: The perspective sliding doors are widely used in various modern industrial factory, auto 4S shops and other places, with beautiful appearance, smooth opening, safe and reliable, low noise, high density, good sealing and thermal insulation performance.
It is made of double layer high quality hot dip galvanized steel sheet and imported polyurethane energy saving material. The door structure combines a new type of aluminum alloy with high quality polycarbonate PC board, adapting perfectly to various commercial and industrial building types.
| Color of Frame | The standard color is transparent, available in many other custom colors. |

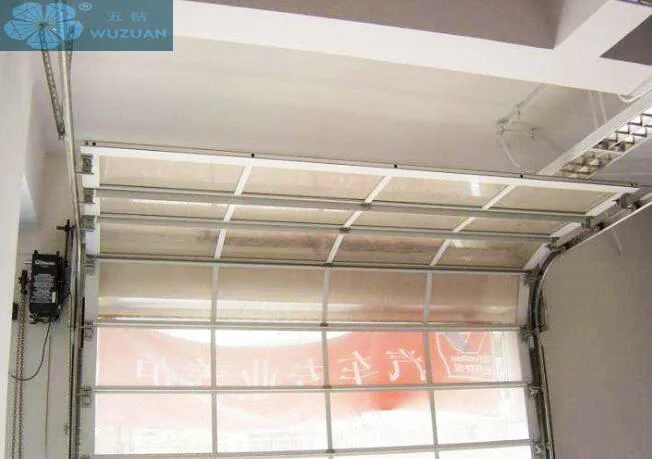

| Balance system | External torsion spring system supporting over 30,000 working cycles. |
| Sealing | U-shaped rubber sealing strip combined with high-quality aluminum for waterproof and dust-proof performance. |

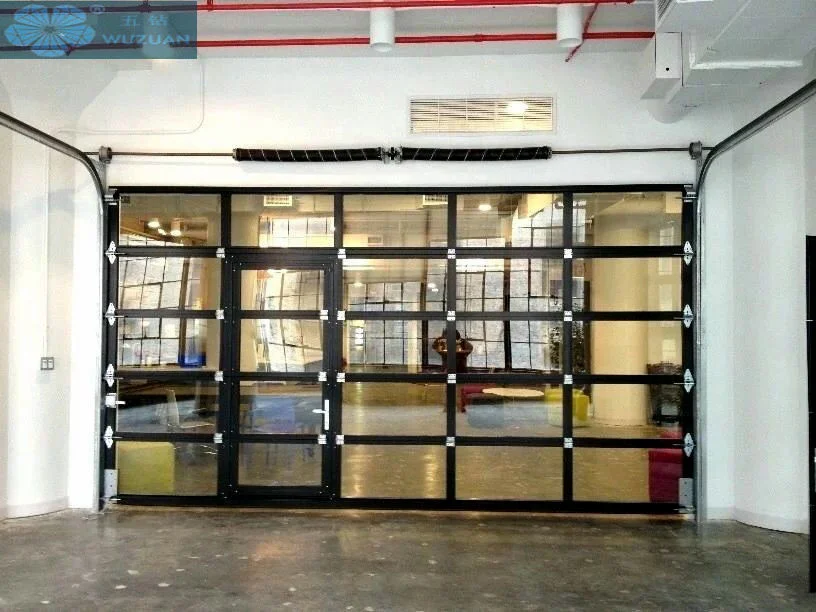

| Channel Door | Optional high strength alumina integral hinge, width 750mm-900mm. |
| Observation Window | Optional oval or rectangular double layer organic glass with rubber frame. |
| Max Dimension | W12000mm, H8000mm |
| Operating Speed | 20cm-40cm/s |
| Power Supply | 220V/380V ±10%, 50/60HZ |
| Panel Thickness | 40mm / 50mm |
| Wind Resistance | Beaufort scale 11 grade (28m/s) |
| Sound Insulation | ≤ 60dB |
| Safety Devices | Airbag protection, anti-fall device, wire rope anti-break device |
We utilize superior quality raw materials and high-quality components, adhering to the "excellence, precision production" concept. Our products ensure easy operation, security, and durability. Customers satisfaction is our eternal goal, and we are sincerely willing to cooperate with enterprises worldwide to realize win-win situations.
