5 Years Warranty Automatic Glass Sliding Door Drive

1 / 5

5 Years Warranty Automatic Glass Sliding Door Drive

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

F-150W

Material

Aluminum Alloy

Type

Sliding

Open Style

Sliding

Opening Type

Induced

Special Function

Soundproof

Color

Silver

Certification

CCC, ISO9001, RoHS, CE

Single Leaf Width

700mm to 1500mm

Bi-Parting Width

650mm to 1350mm

Single Leaf Weight

150kg

Bi-Parting Weight

150kg x 2

Automatic Glass Sliding Door Drive

Core Advantages:

✔ 17 Years of industry export experience

✔ Japanese ruby capacitor for superior controller stability

✔ High-speed opening up to 650mm/s

✔ 75W Brushless DC motor with copper wire coil (15:1 ratio)

✔ Heavy duty capacity: Max weight 150kg per leaf

✔ 5 Years Warranty performance guarantee

Main Technical Features:

● DC24V Brushless Motor: Ensures silent and smooth operation.
● Smart Microprocessor: Easy settings and automatic parameter adjustment.
● Safety First: Automatic safety stop when hitting obstacles during opening; Auto-reverse during closing.
● Adjustable Performance: Variable opening/closing speed, distance, and auto-close delay time.
● Emergency Ready: Manual opening during power failure; optional backup battery support.
● Multi-Function Switch: Supports Auto, Open, One-way, Lock, and Half-open modes.

Technical Parameters

Parameter	Single Door	Double Door
Weight Capacity	≤ 150kg	≤ 150kg * 2
Door Width	600 - 1500mm	600 - 1350mm
Opening Speed	≤ 600mm/s	≤ 600mm/s
Closing Speed	≤ 500mm/s	≤ 500mm/s
Power Supply	AC 80-250V 50-60HZ
Open Time (Delay)	0.5 - 10S (Adjustable)
Motor Type	24V Brushless Motor
Working Temp	-20°C to +50°C
Manual Force	≤ 45N	≤ 45N

Product Components

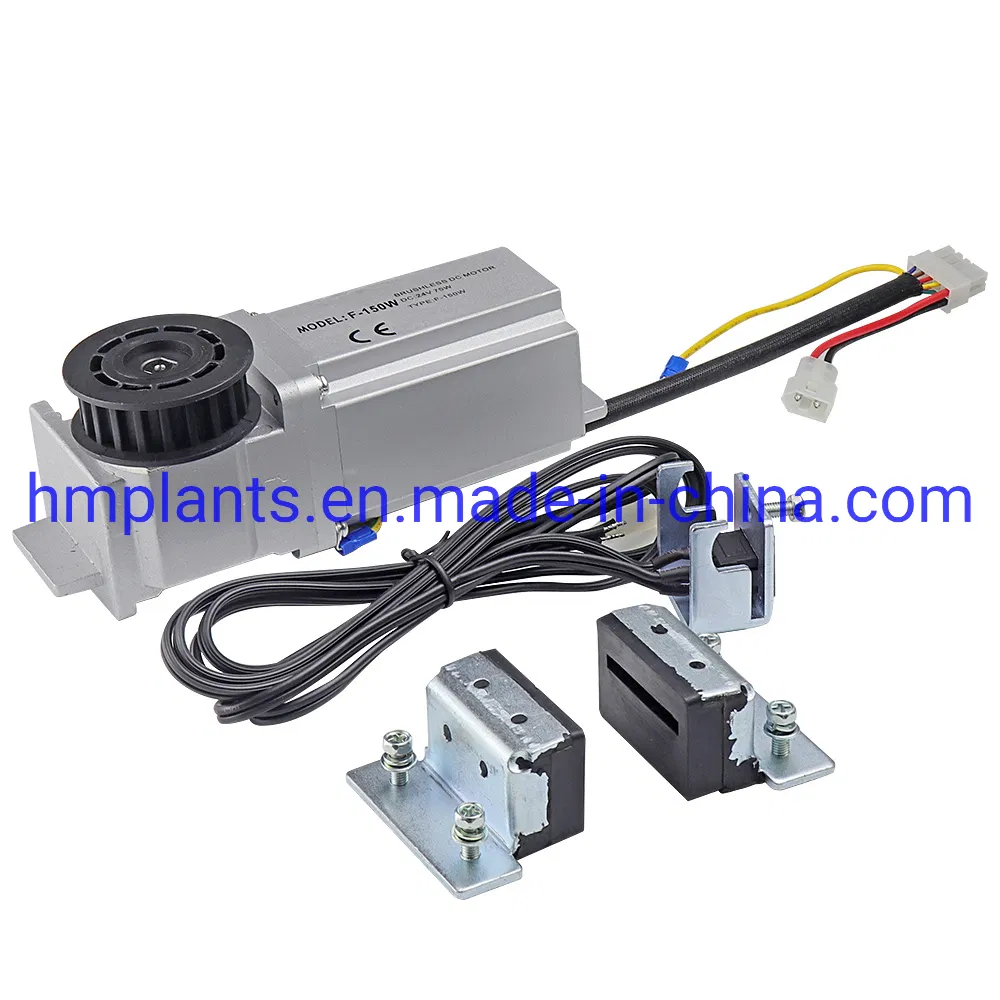

F-150W Motor & Controller Units:

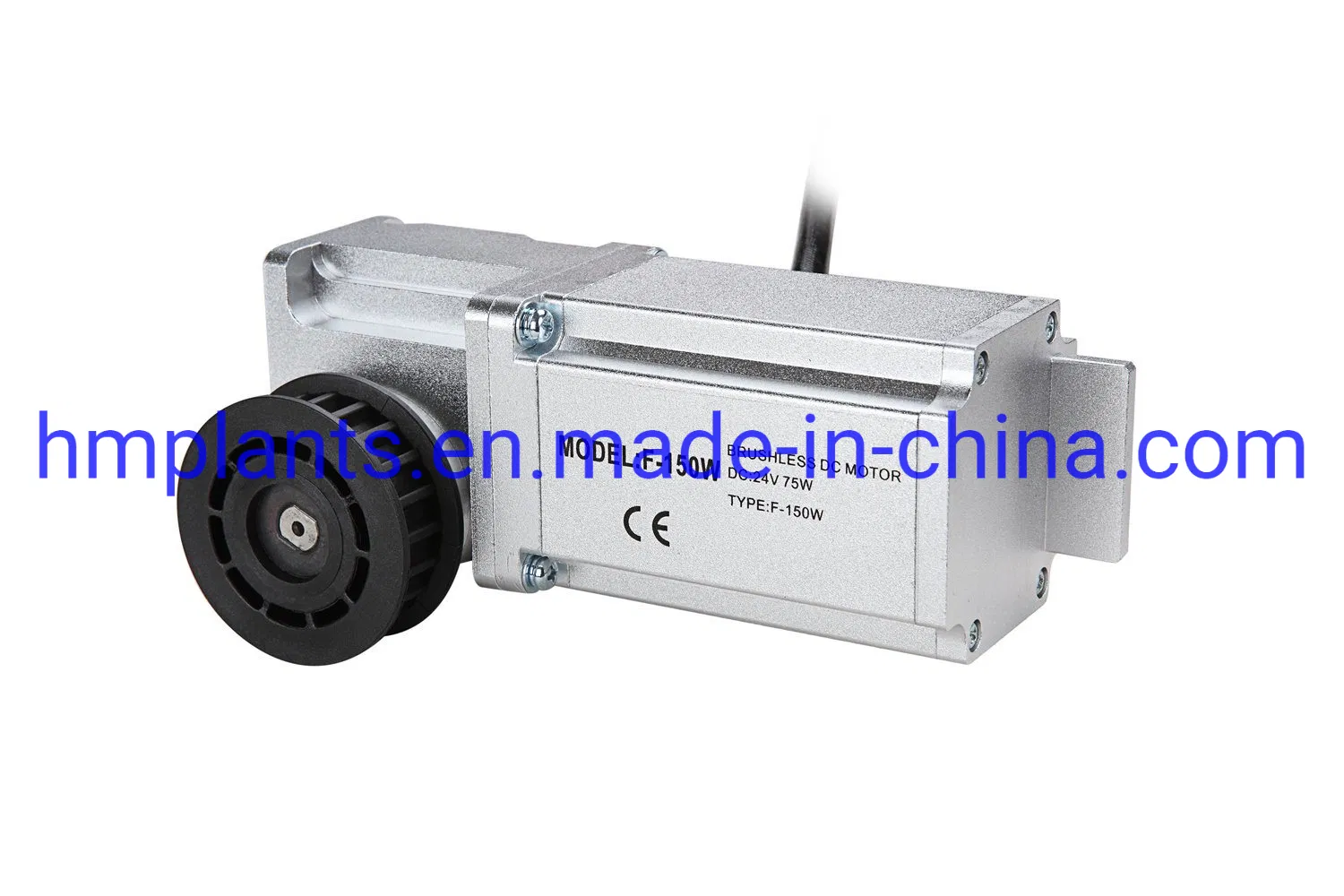

High Performance Motor

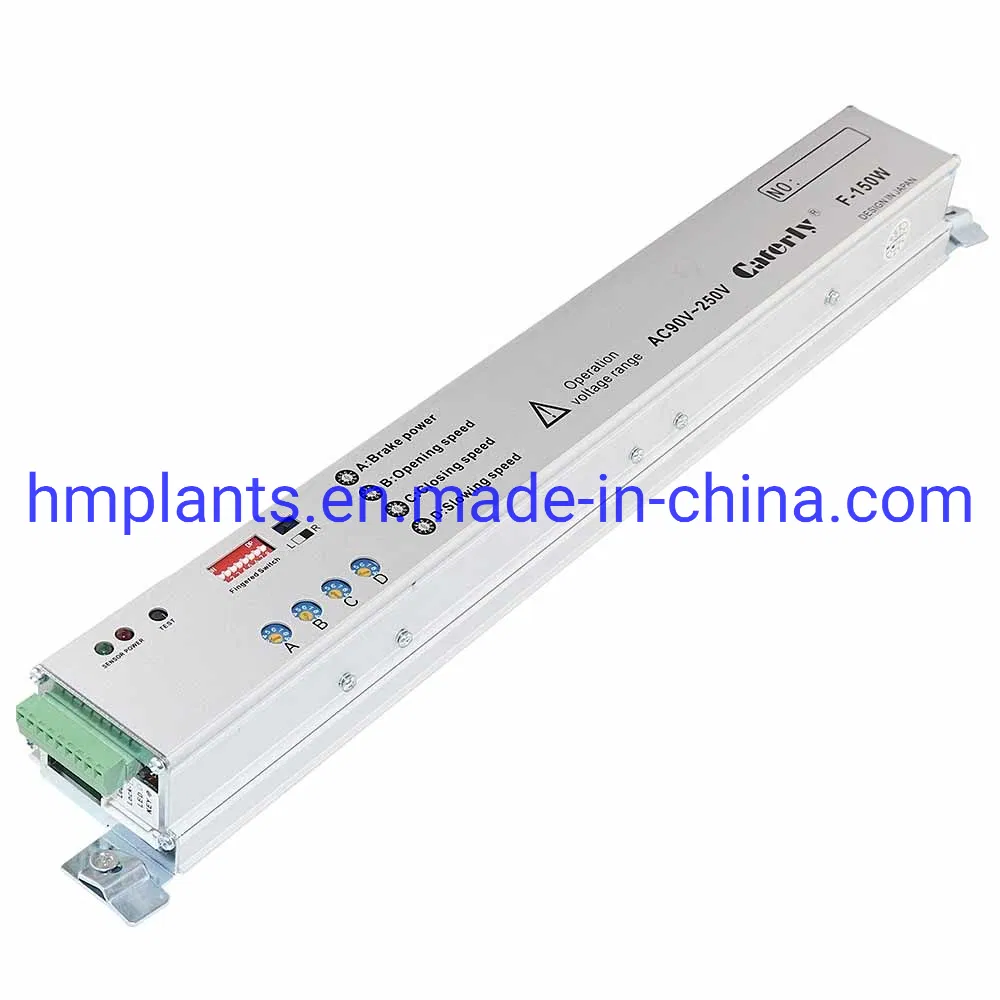

Micro-computer Controller

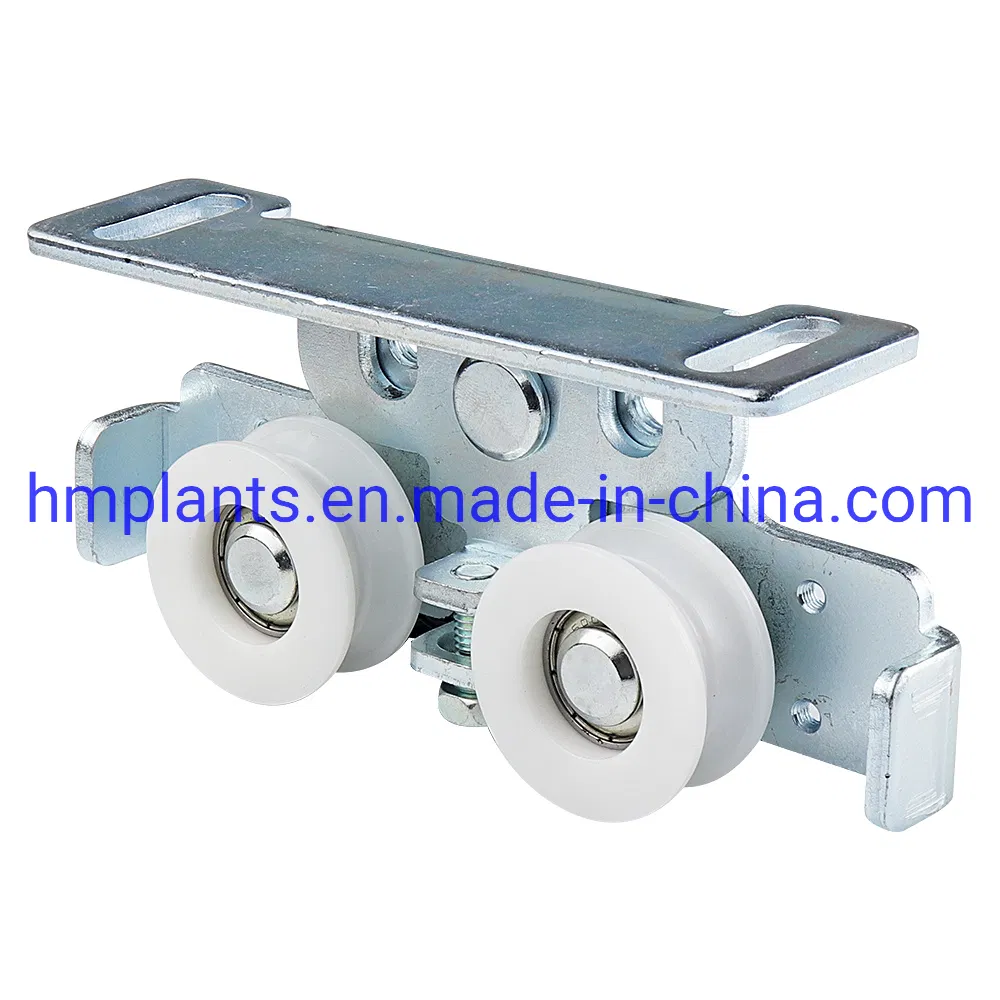

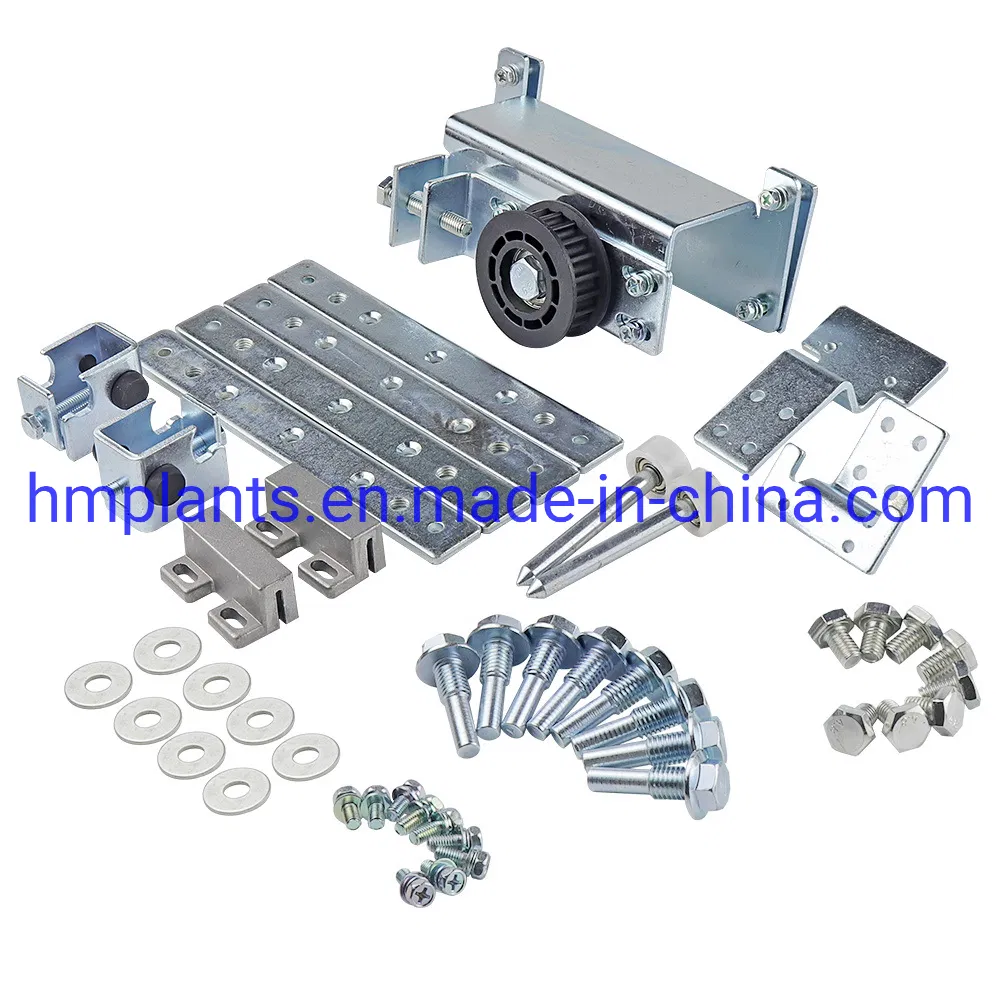

Hardware & Carriage Wheels:

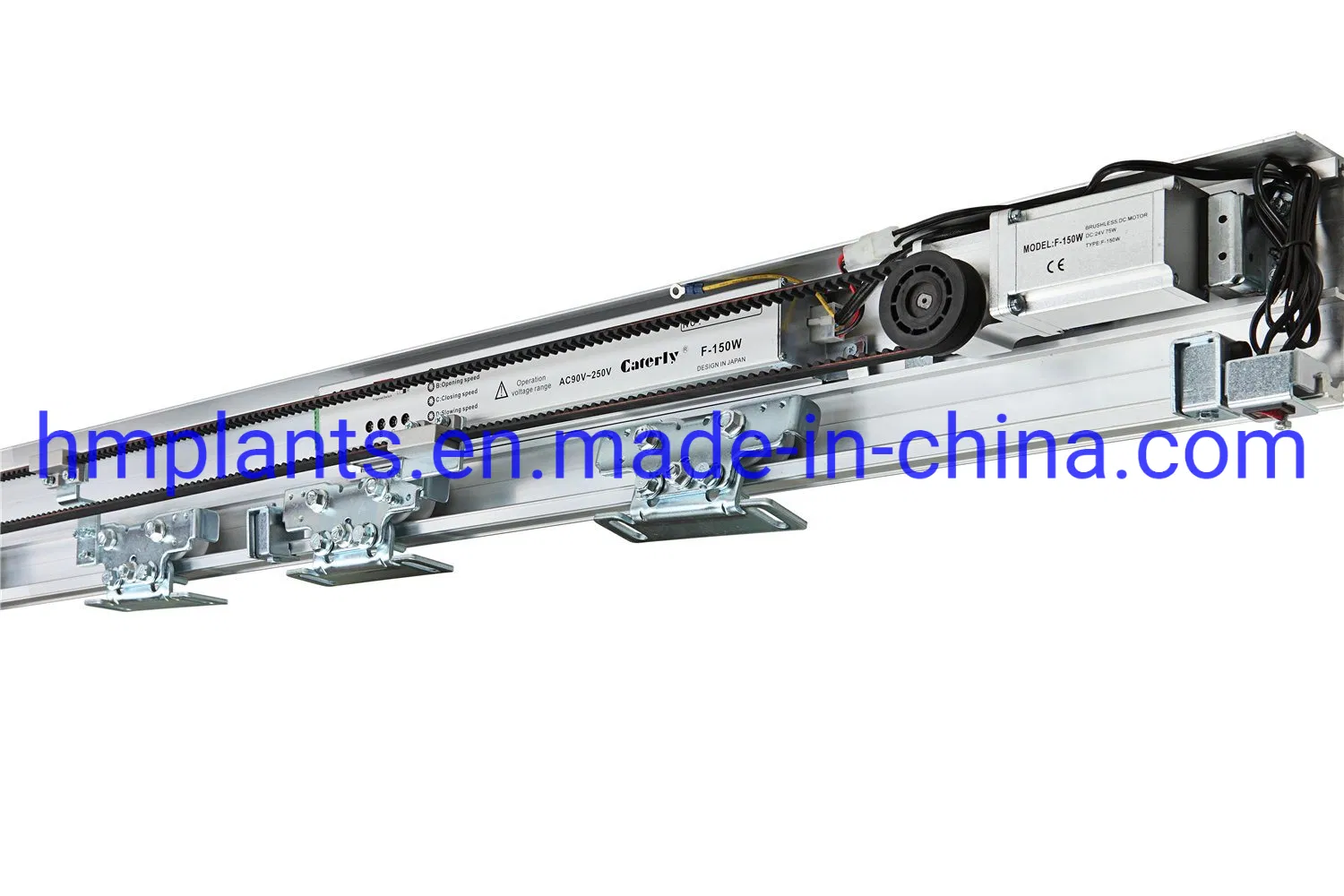

Operator Installation View:

Track and Full Assemblies:

Frequently Asked Questions

Q1: What is the maximum weight the F-150W can handle?

The system can support a maximum weight of 150kg for a single door leaf, or 150kg x 2 for bi-parting double doors.

Q2: How long is the warranty period for this door drive?

We offer a comprehensive 5-year warranty on the F-150W automatic glass sliding door drive system.

Q3: Does the system still work during a power failure?

In the event of a power failure, the doors can be opened manually. Additionally, there is an option to install backup batteries for continuous automatic operation.

Q4: Can the opening and closing speeds be adjusted?

Yes, both the opening and closing speeds, as well as the hold-open delay time, are fully adjustable via the microprocessor controller.

Q5: What safety features are included for pedestrian protection?

The system includes an intelligent safety stop and auto-reverse function. If the door encounters an obstacle while closing, it will immediately reverse to prevent injury.

Q6: What certifications does this product hold?

The F-150W system is fully certified with CE, RoHS, ISO9001, and CCC standards, ensuring global quality compliance.
