Automatic Mall Glass Sliding Door System Automatic Door Manufacture (Will-Panasonic)

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Model NO.
Will-Panasonic
Certification
ISO9001, RoHS, CE
Position
Commercial
Surface Finishing
Finished
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Length
2000mm to 6000mm
Warranty
24monthes
Production Capacity
2000sets Every Month
Origin
China

Product Description

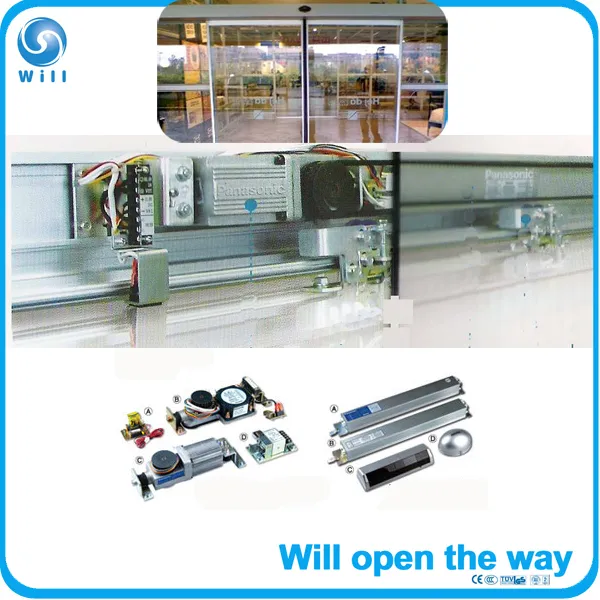

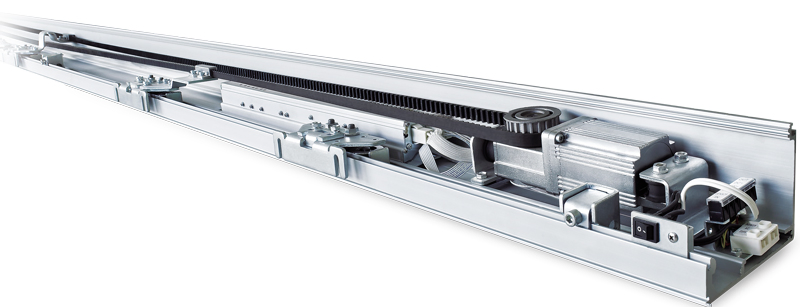

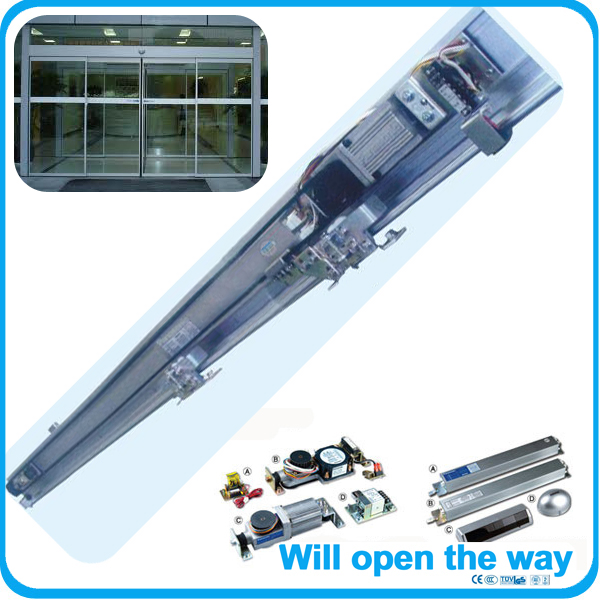

Automatic Door Operator Sliding Door Operator with Brushless Motor Will Panasonic

Key Features: 10 million times of tests passed, super durable

  • Wide voltage range (AC110-260V)
  • Low power consumption: 68W at work / 3W at leisure
  • Intelligent design, easy to install and adjust
  • Digital programs, running parameters can be revised easily

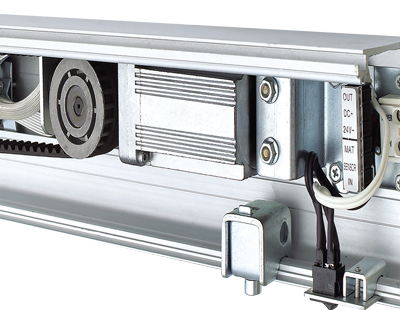

  • Brushless motor, worm-geared, higher efficiency and larger torque
  • Multiple triggering modes: microwave sensor, infrared, mechanical keys, finger printer, firewarning

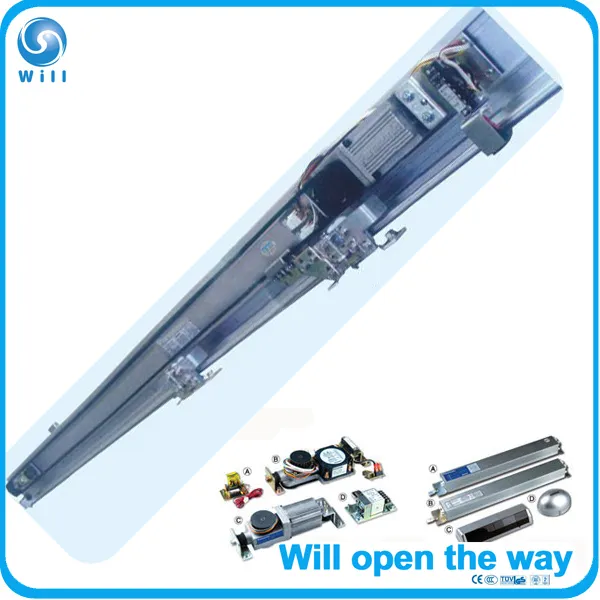

Standard Configuration
  • Motor & Controller
  • Remote Controllers
  • Basic control module

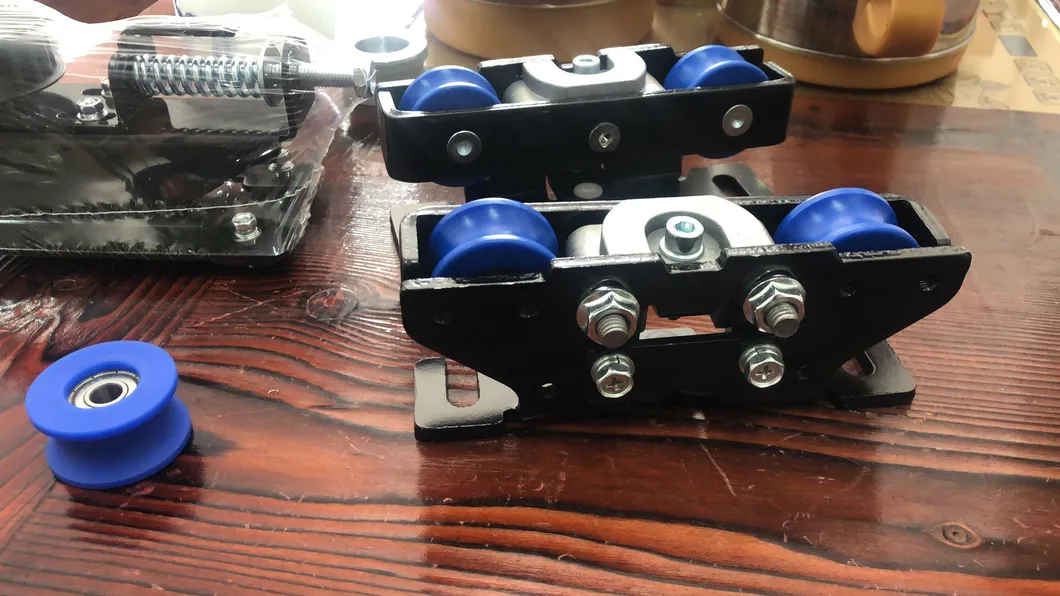

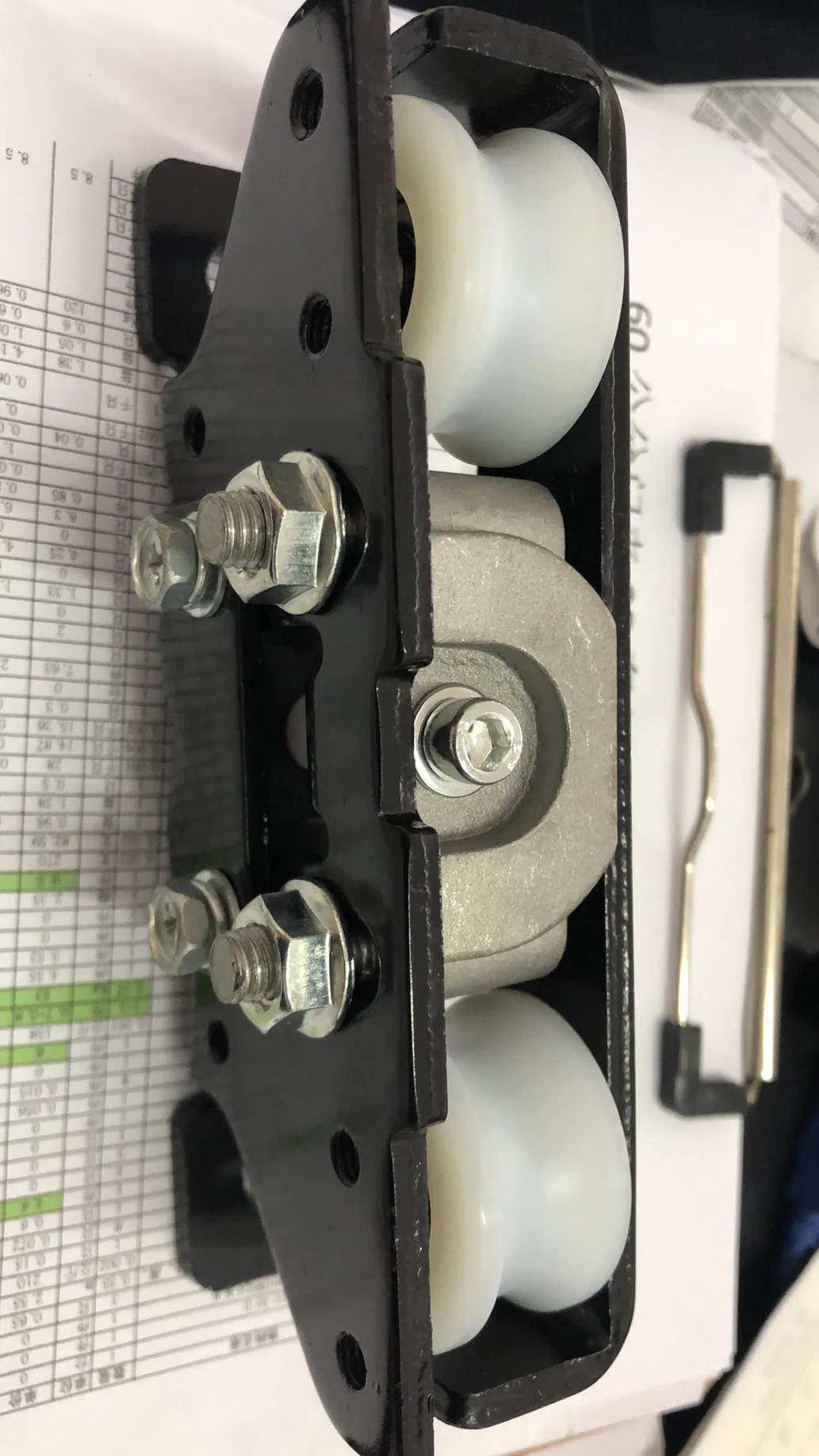

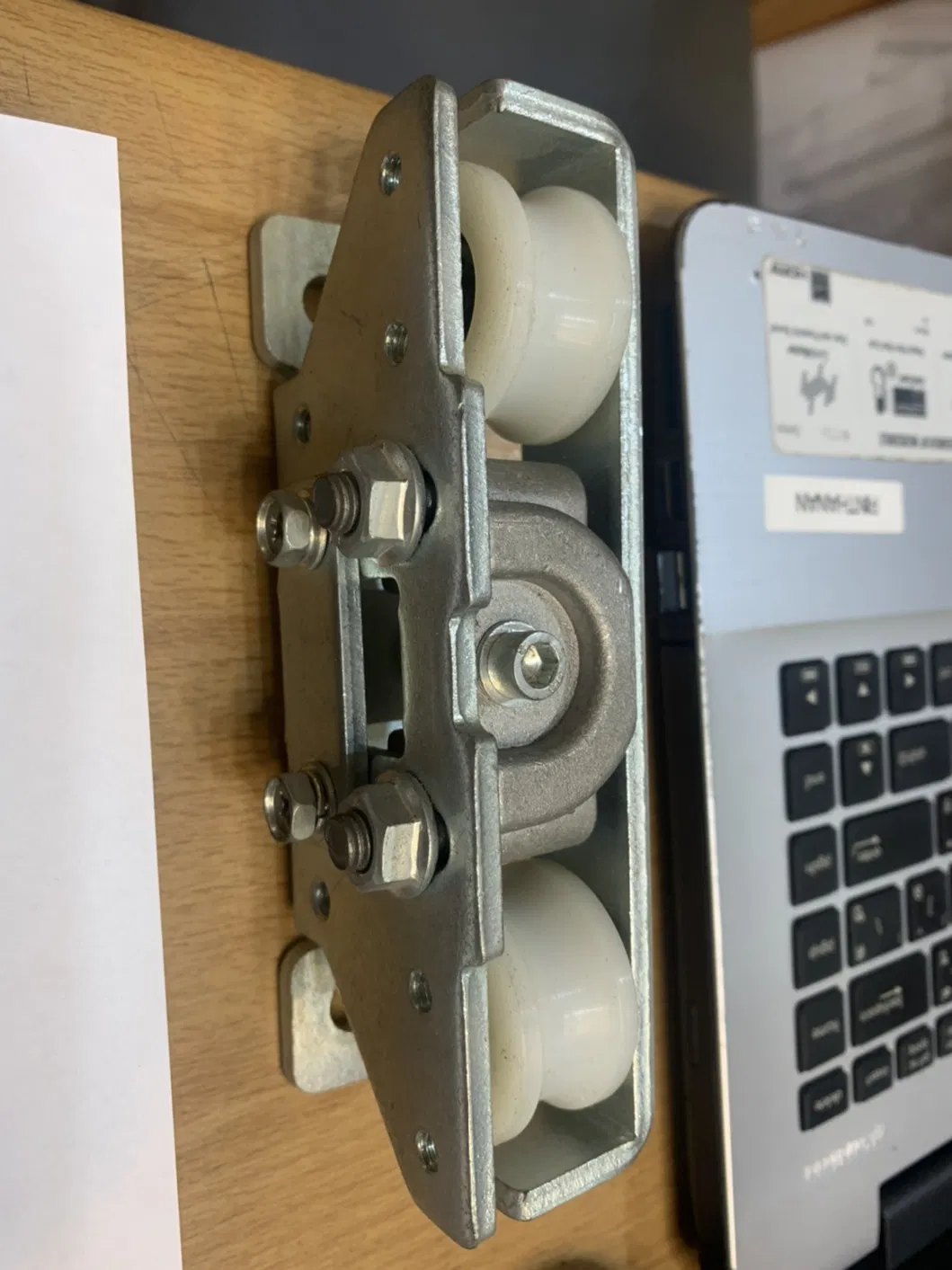

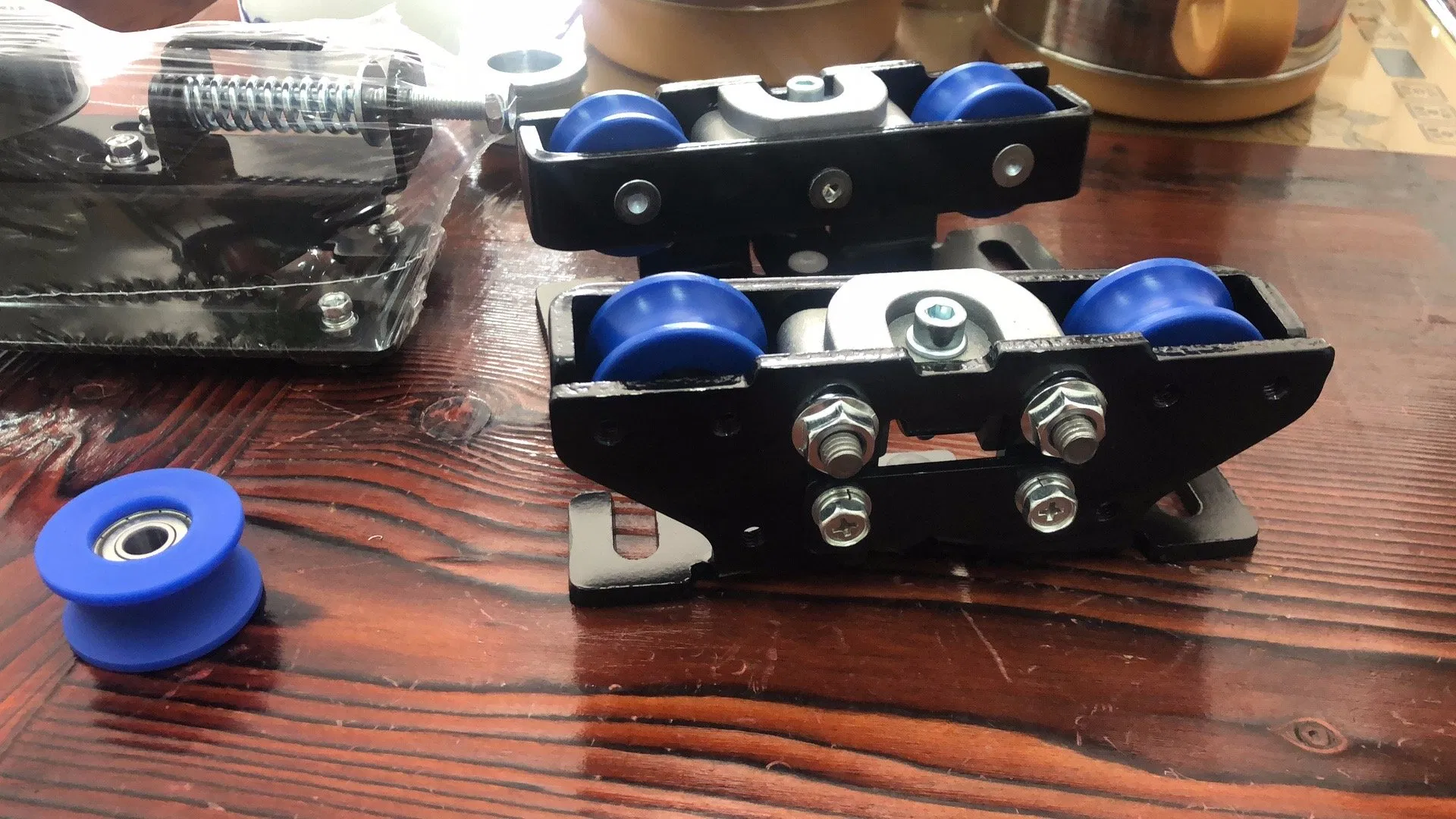

  • Track & Carrier
  • Return Pully & End stop
  • Belt connection & Tensioning device

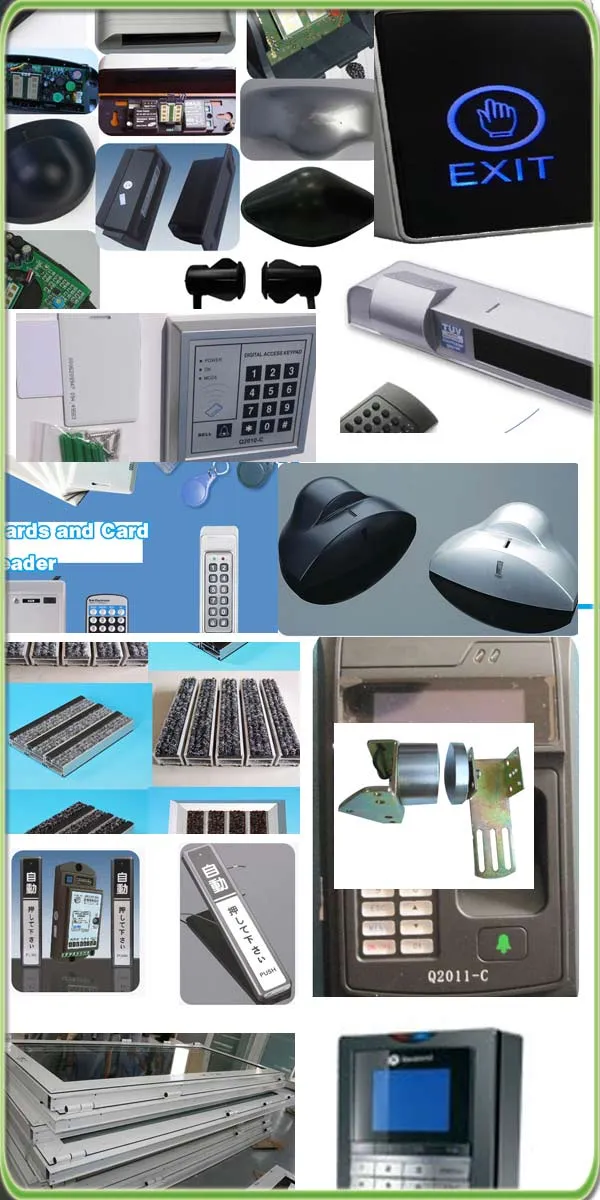

Optional Parts
  • Motion Sensor
  • Lock latch
  • Battery Backup
  • Beam safety photocell

Specifications

Weight of gate (Single/Bi-part)1X200KG / 2X120KG
Width of gate (Single/Bi-part)900-6100MM
Master Controller32 digital microprocessor
Motor TypeBrushless Dunker motor 99.5W 60VDC
Opening/Closing Speed300-700mm/s
Max Open Strength150N
Rail Dimensions8CM Height / 16CM Depth
Power ConsumptionAround 100W
Noise LevelLow noise design (<70dB)
Warranty24 Months

Functional Modes

  • Off: System powered down
  • Automatic: Standard motion detection operation
  • Permanent Open: Door stays in open position
  • Partial: Reduced opening width
  • Exit only: One-way traffic control

Frequently Asked Questions

What is the warranty period for this automatic door operator?
The product comes with a comprehensive 24-month warranty.
Does the system support different power voltages?
Yes, the system is designed with a wide voltage range of AC110V to 260V, making it compatible with both 110V and 220V power supplies.
What is the maximum door weight this operator can handle?
It can handle a single gate up to 200KG or a bi-parting door system up to 2X120KG.
Is the motor used in this system durable?
The system uses a high-quality German Dunkermotoren brushless motor, which has passed 10 million cycles of testing for extreme durability.
How energy-efficient is the Will-Panasonic door operator?
It is highly efficient, consuming only 68W while in operation and dropping to just 3W during standby/leisure mode.
What safety sensors can be integrated with this system?
The operator supports various triggering and safety modes including microwave sensors, infrared sensors, and beam safety photocells.
