(Normal type, Wind resistant type, Freezer type)

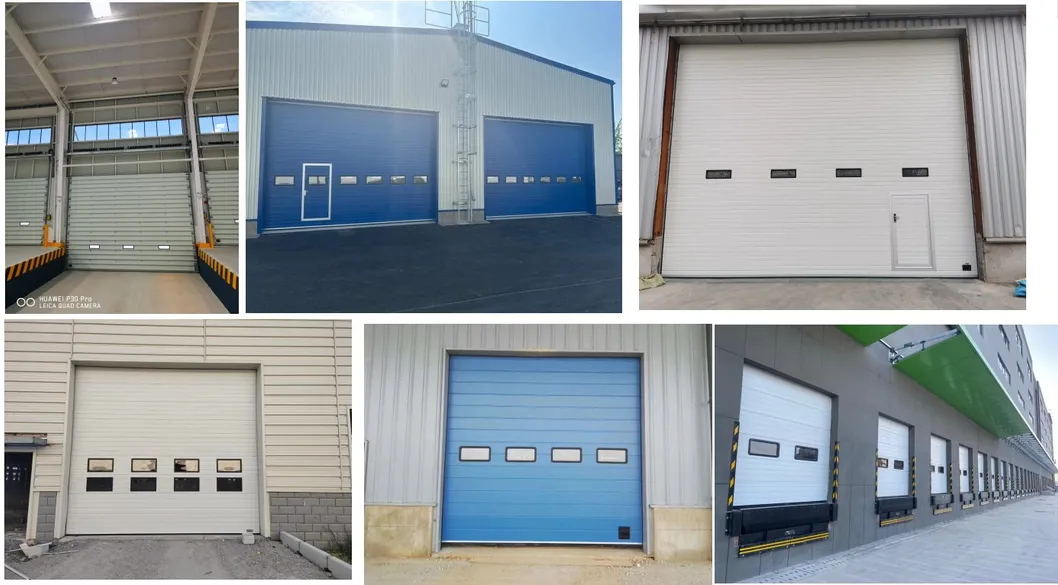

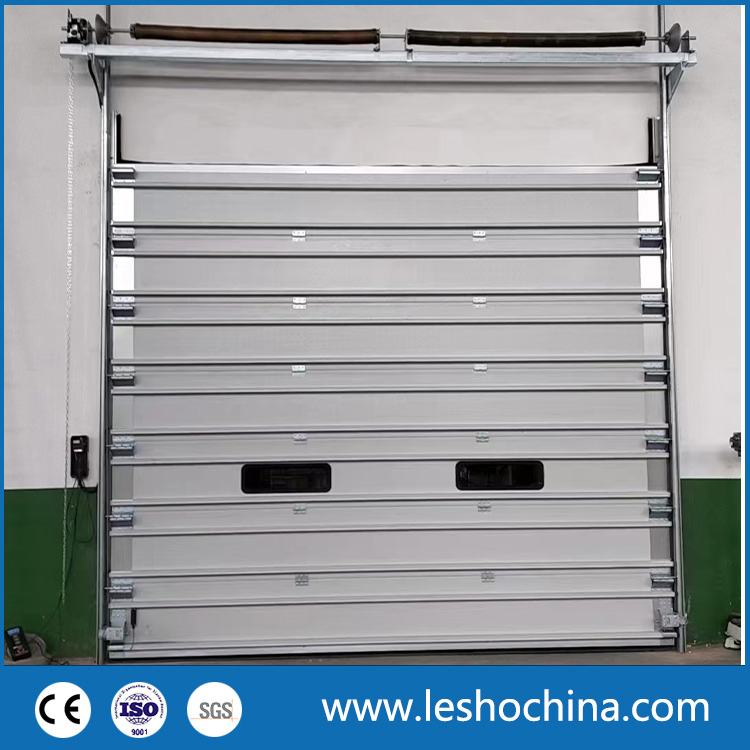

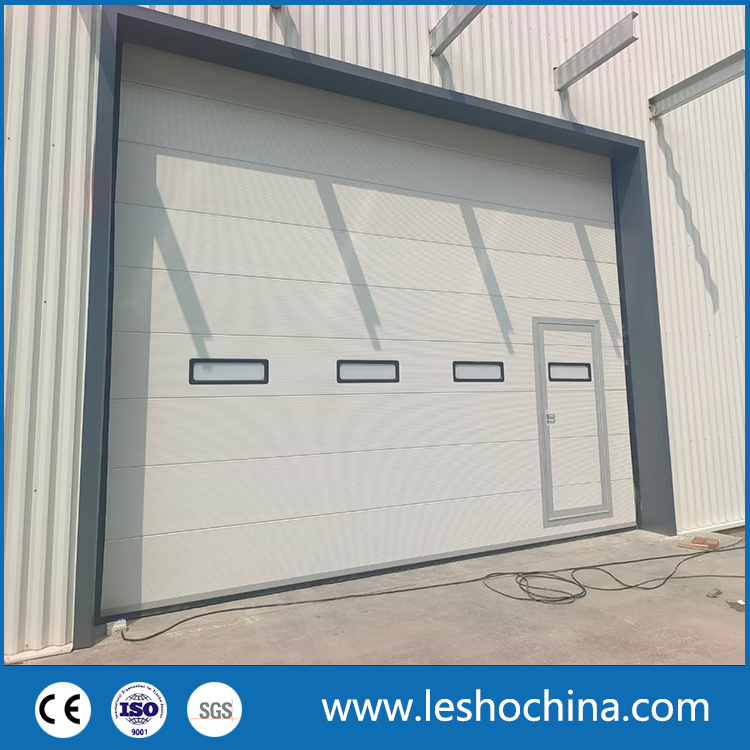

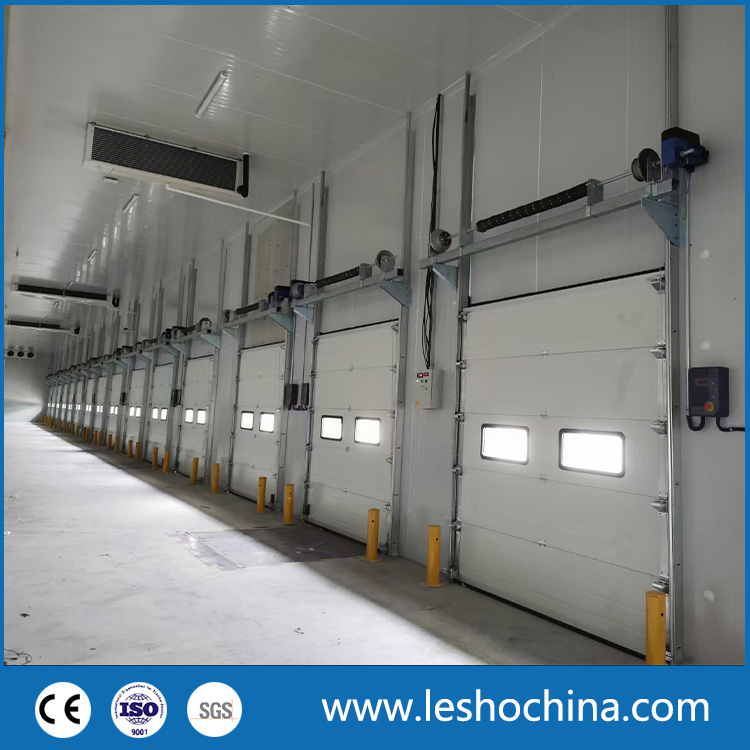

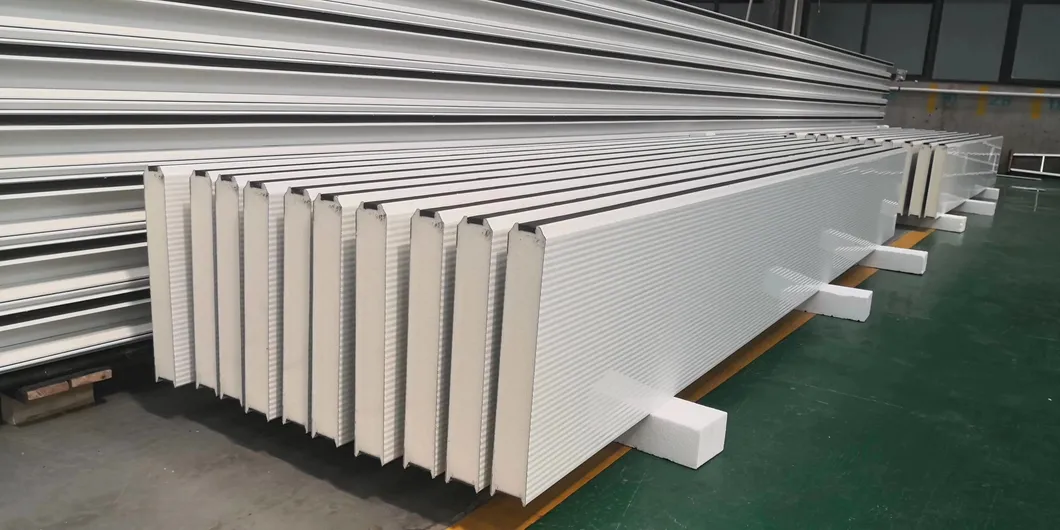

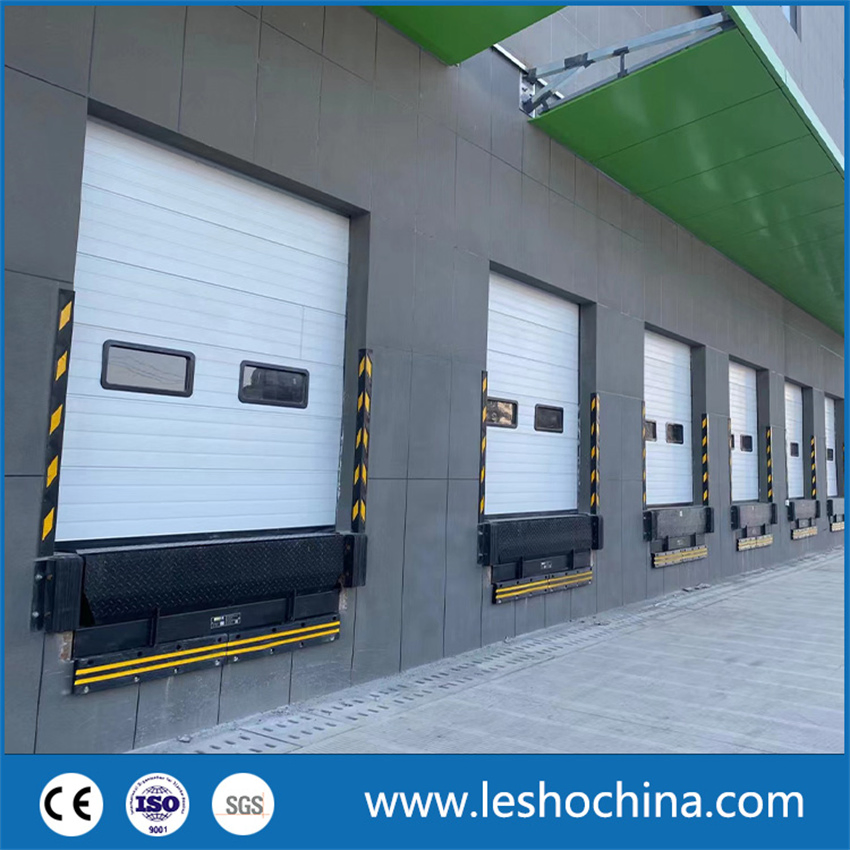

Widely used in various industrial occasions because of their scientific torsion spring balance system and multiple safety devices. Its double-layer PIR sandwich door panel gives it excellent thermal insulation, wind resistance, and flame-retardant properties. Ideal for factories, logistics loading areas, medicine, food, electronics, and printing workshops.
| Application location | Both interior and exterior |
| Power supply | 1-phase 220V or 3-phase 380V, 50/60HZ |
| Protection of Electric | IP 54 |
| Max Dimension | W11.4*H4.5m (Anti-wind) / W8000*H8000mm (Normal) |
| Running Speed | 0.3m/s |

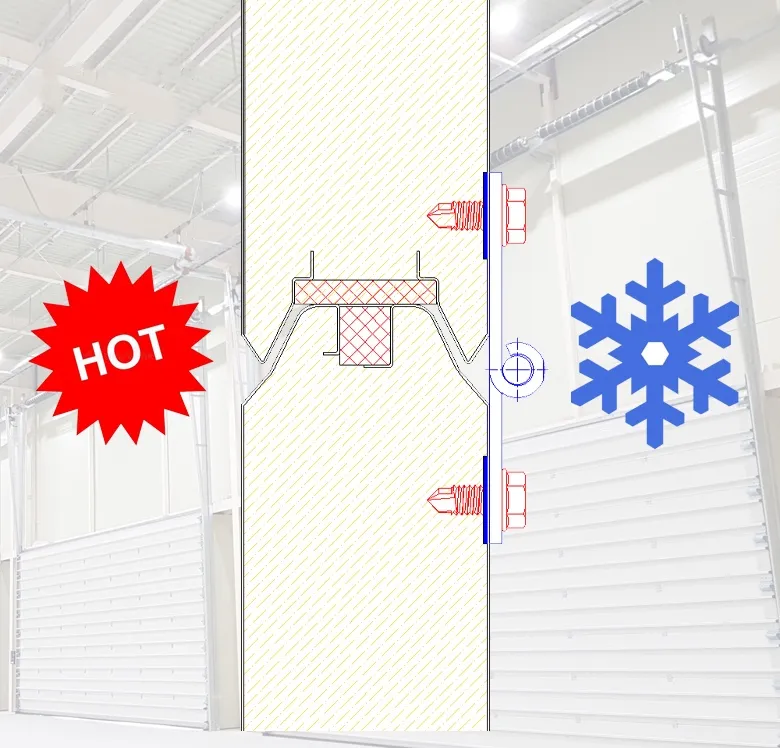

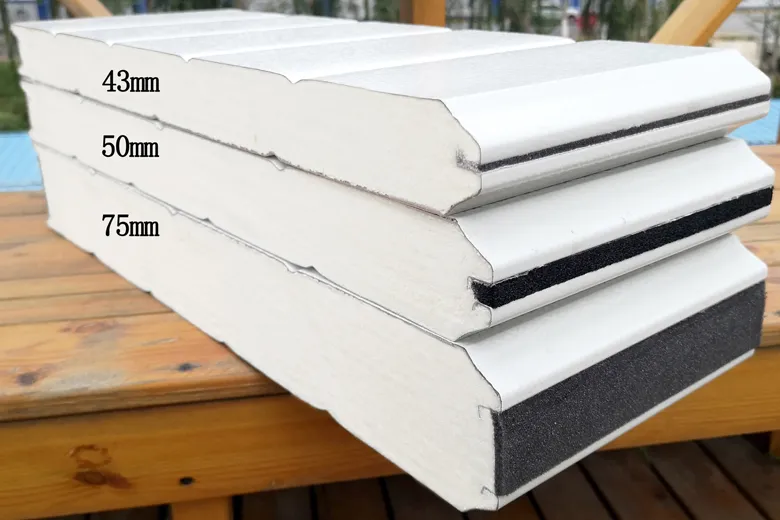

| Thermal insulation | 40mm (0.51 W/m2K), 75mm (0.30 W/m2K) |
| Wind resistant | Beaufort scale 10-12 (28m/s-35m/s) |
| PU Foaming density | 45kg/m³ |
| Fire Rated PU Foam | B1 |
| Sound Insulation | R= 24 dB |

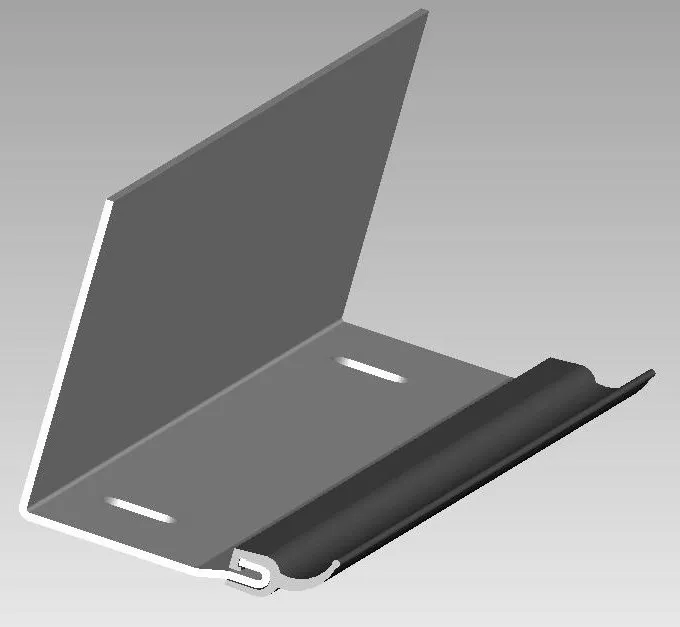

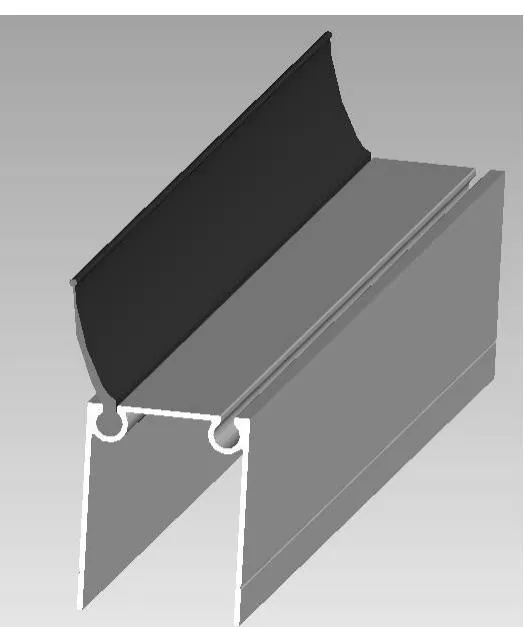

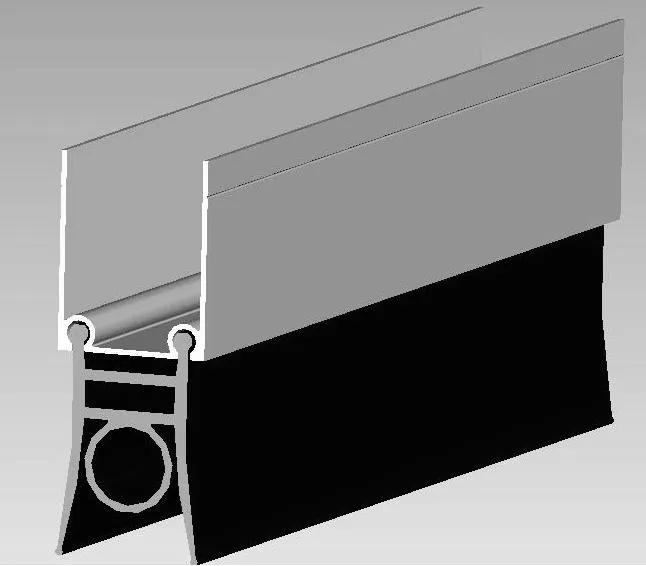

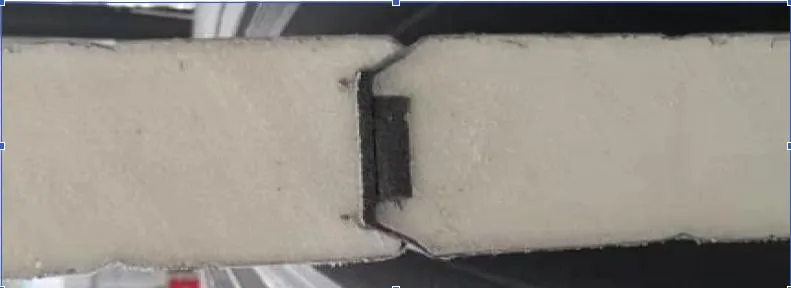

EPDM Rubber Seal: All around the door equipped with EPDM Seal rubber, it will not deform in bad weather, offering excellent air tightness and rejecting dust and insects.

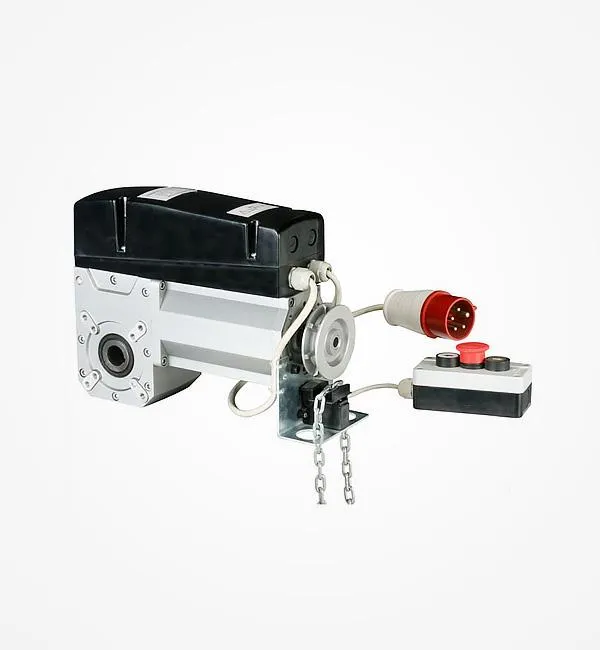

Intelligent Control: Options include Push Button, Remote Control, Radar, Infrared Sensors, Inductive Loop, and Interlocking systems.

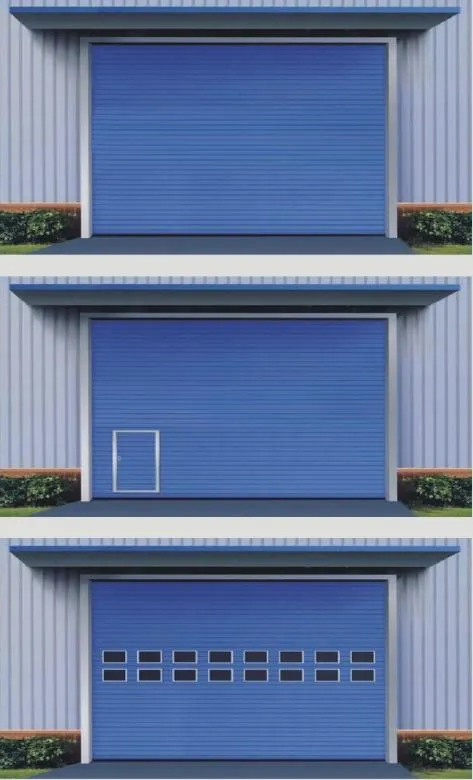

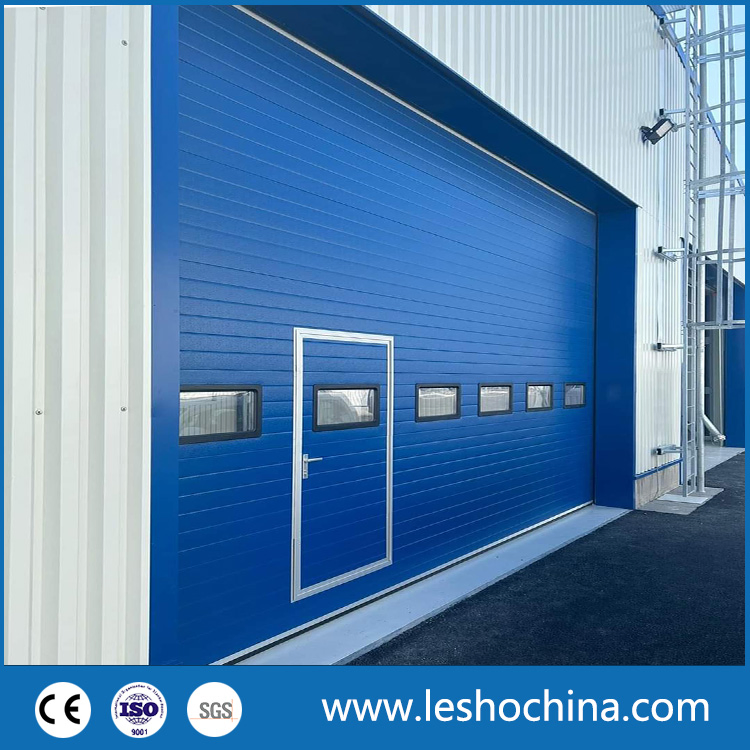

Vision panels for better lighting and small swing personal doors for foot traffic are available to maximize energy efficiency.
