Product Description

Basic Information
Model NO.
KA120
Open Style
Sliding
Opening Type
Induced
Special Function
Shopping Entrance
Color
Transparent
Certification
ISO9001, CE
Position
Interior
Surface Finishing
Finished
Motor
24V, 60W Brushless Motor
Holding Weight
120kg * 2
Door Type
Frame / Frameless Door
Power Supply
110V - 220V
Application
Hotel, Bank, Airport, Supermarket, Shop
Production Capacity
1000 sets / Month
Product Description
KA-120 automatic sliding glass door controller is designed for sliding pedestrian doors, holding a maximum of 120Kg. It is engineered for standard use in both interior and exterior locations and remains a consistent top-seller. Through years of continuous improvement, its technology and quality have reached a highly mature stage.
Automatic Sliding Glass Door Controller

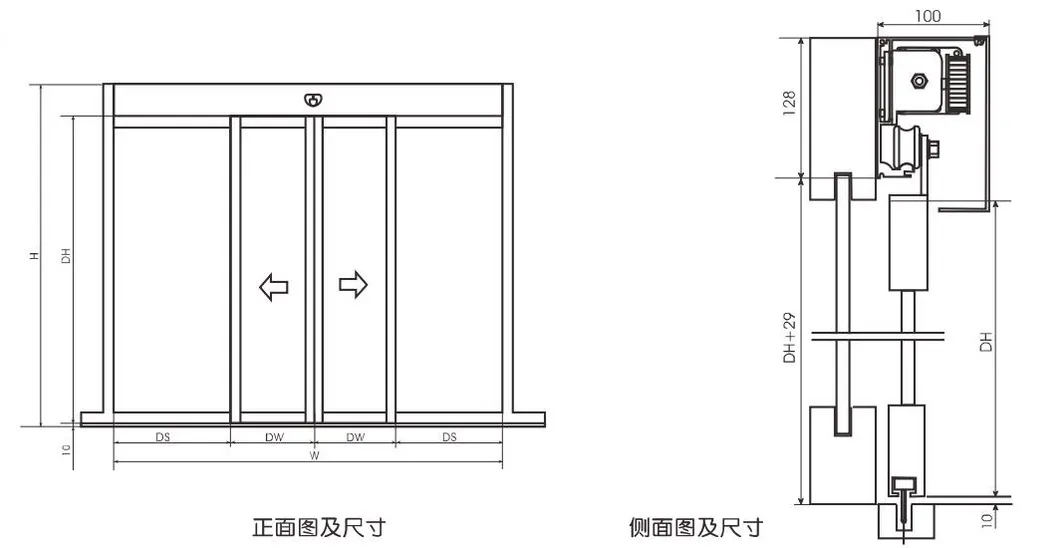

Sectional View

Featuring a height of 125mm and a depth of 100mm track, the design is focused on simplicity and ease of installation.

Sectional View of Door Controller
Microcontroller Features
Feature Description Support
Microprocessor controllerYes
Programs: Off, Automatic, Permanent Open, Partial Opening, Exit OnlyYes
Emergency openYes
Self-learning capabilityYes
Automatic reverse on obstructionYes
Connection for electro-mechanical lockingYes
Connection for light barriersYes
Setting of basic parameters with DIP switchYes
Emergency opening or closing (via battery pack)Yes
24V / 12V output for external consumptionYes
Adjustable speed, open time, and initiate forceYes
Technical Data
Parameter Single Door Bi-Parting Door
Door Width 700mm - 1300mm 600mm - 1250mm
Door Weight ≤ 120kg ≤ 100kg x 2
Opening Speed 15 - 50cm/s (adjustable) 15 - 45cm/s (adjustable)
Closing Speed 10 - 45cm/s (adjustable) 10 - 45cm/s (adjustable)
Hold on Time 0 - 20s (adjustable)
Power Supply 110V, 60Hz / 220V, 50Hz
Profile Size 4200mm(L) x 150mm(H) x 78mm(W)
FAQ
What is the maximum weight capacity of the KA-120?
The KA-120 can handle a single door leaf up to 120kg or double door leaves up to 100kg each.
Is the door speed adjustable?
Yes, both the opening speed (up to 50cm/s) and closing speed are fully adjustable to suit your specific needs.
Does the system support emergency operations?
Absolutely. It includes emergency stop functionality, automatic reverse when an obstruction is detected, and can perform emergency opening/closing with a battery pack.
Can this be used for frameless glass doors?
Yes, the KA-120 system is compatible with both framed and frameless glass door configurations.
What types of environments is this controller suitable for?
It is ideal for high-traffic interior and exterior locations such as hotels, banks, airports, supermarkets, and retail shops.
How are the basic parameters configured?
Basic parameters like door programs and logic can be easily set using integrated DIP switches on the microprocessor controller.
