China New Automatic Commercial Industrial Garage Sliding Bulletproof Security Stainless Steel Sectional Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

⚙️ Basic Information
Model NO.
ISD-147
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Insulated and Cold Storage
Color
Customized
Certification
TUV, CCC, ISO9001, RoHS, CE
Wind Resistant
Standard 450PA, Higher to 700PA
Panel Thickness
Anti-Pinch: 40mm
Production Capacity
50,000 Sqm/Month
Industrial Sectional Door
📦 Packaging & Delivery
Package Size
200.00cm * 300.00cm * 150.00cm
Gross Weight
500.000kg
Package Type
Carton Box / Wooden Cases
🖼️ Product Showcase

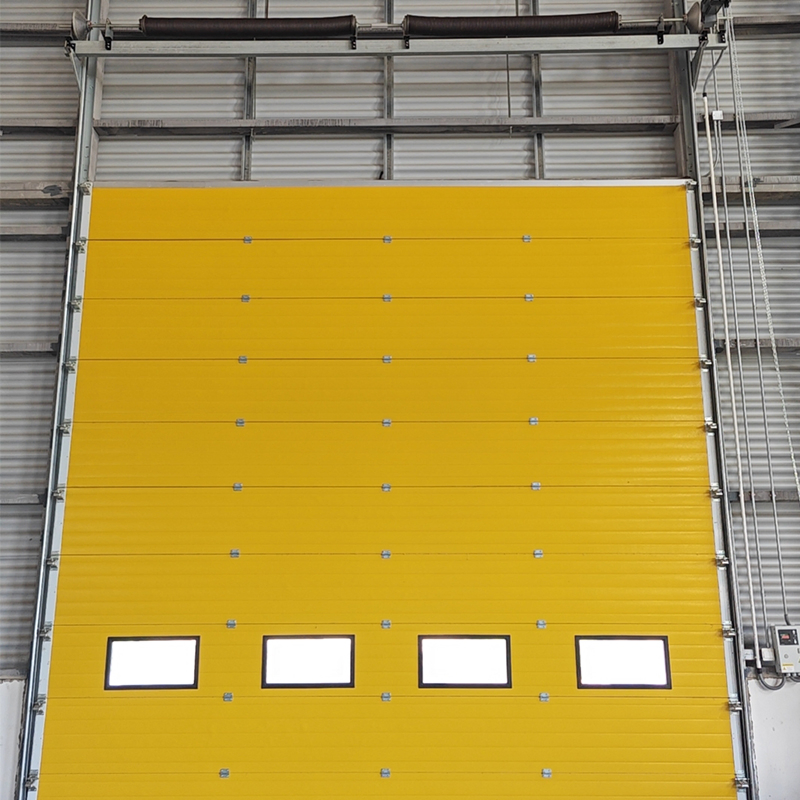

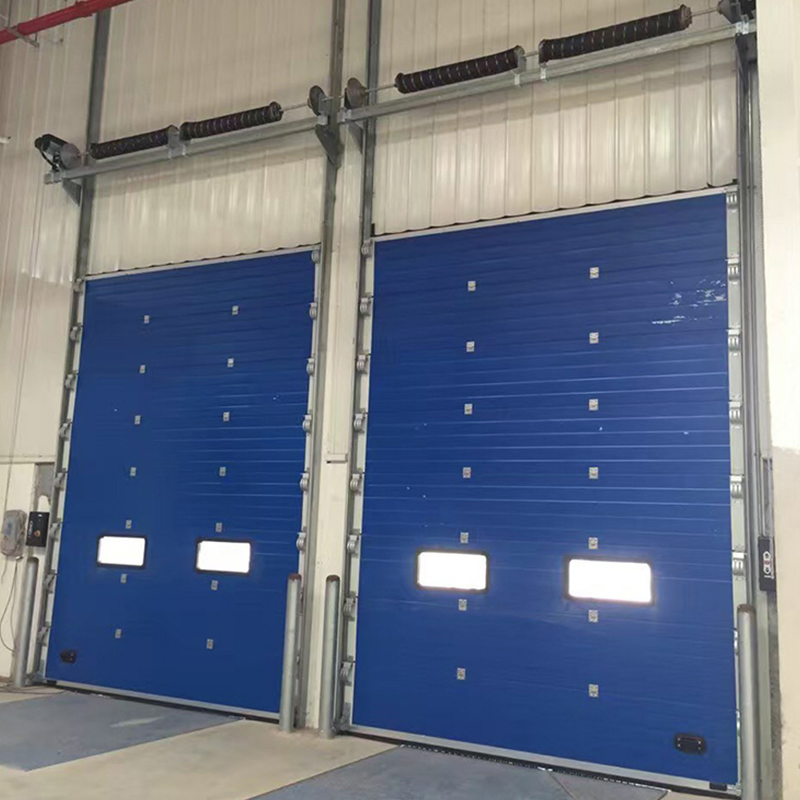

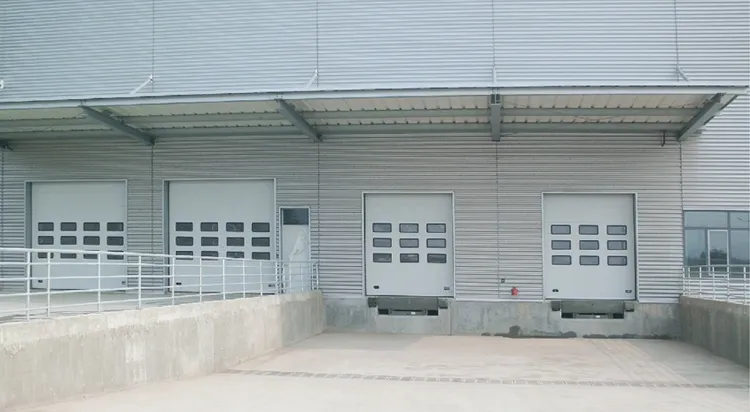

Product Show 1
Product Show 2

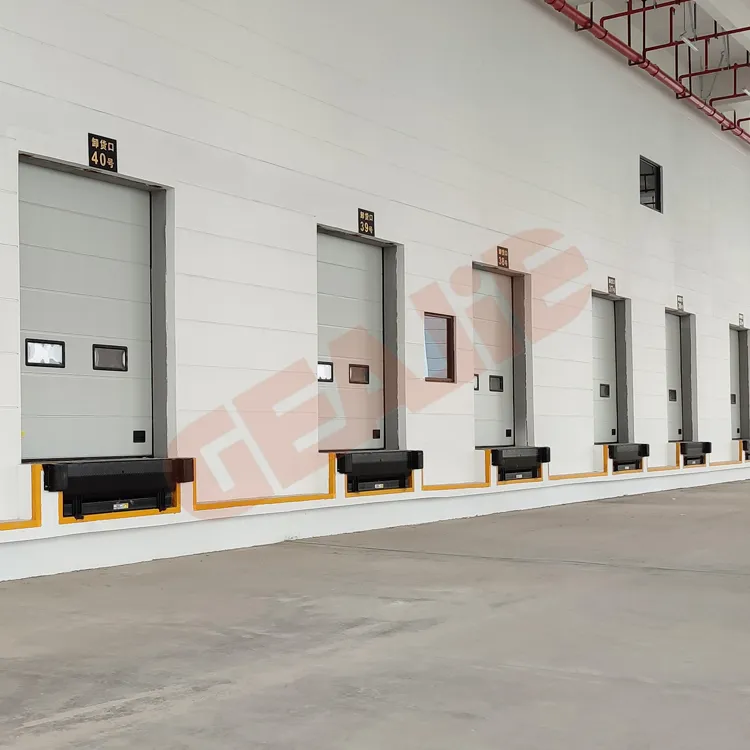

Showcase 3

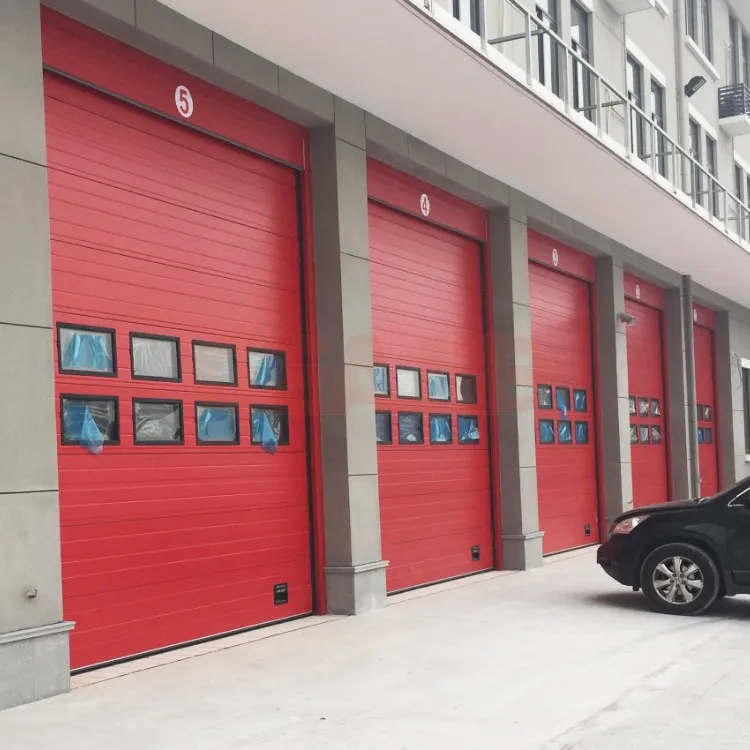

Showcase 4

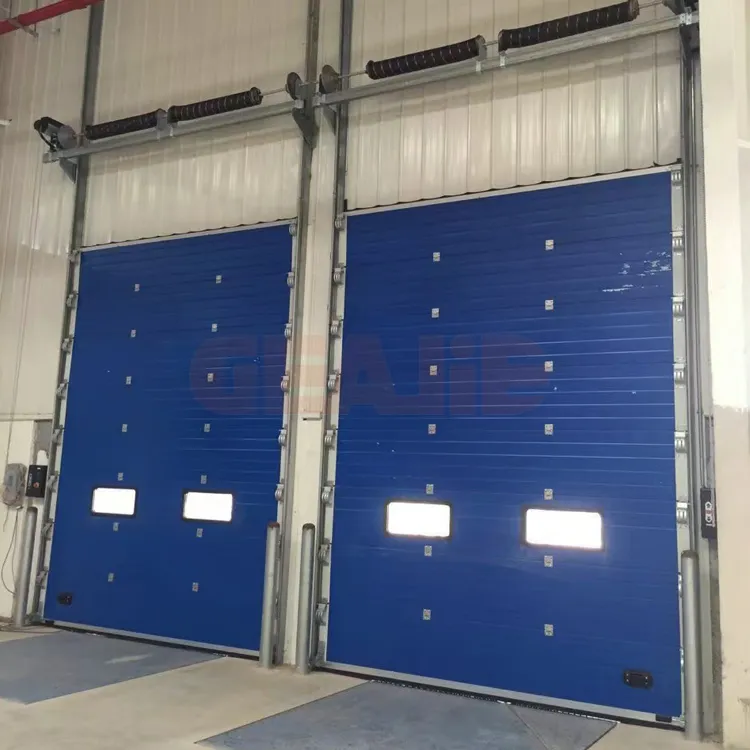

Showcase 5

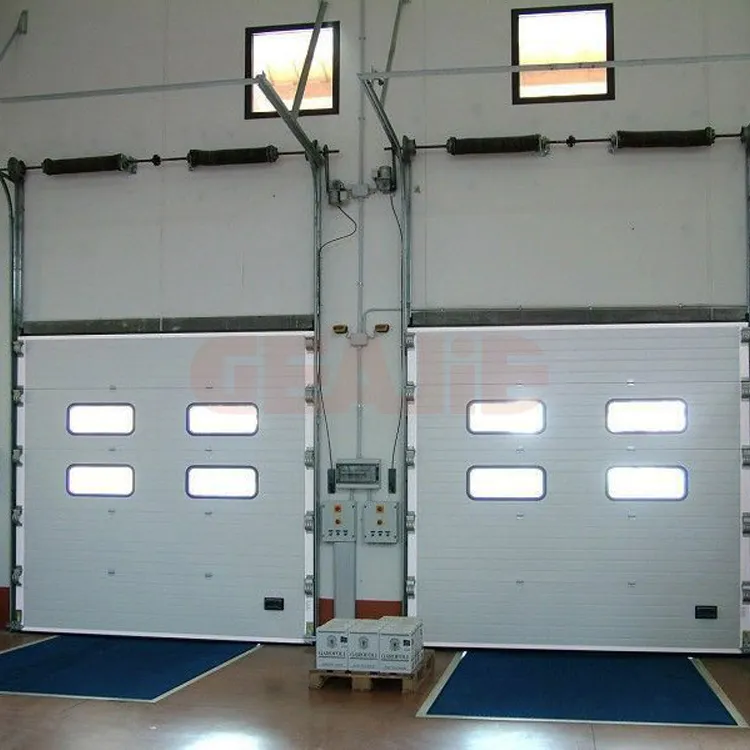

Showcase 6

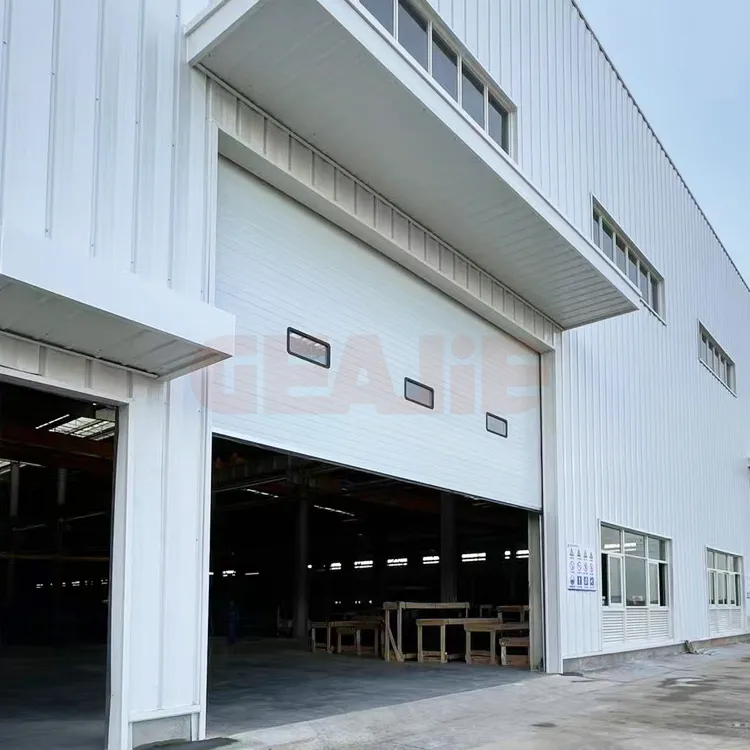

Showcase 7
📋 Material Specifications
Feature Specifications
Size RangeW:6000-12000mm, H:2000-8000mm
Speed0.25m/s
Panel MaterialGalvanized steel or aluminum plate
Panel Thickness40mm (Anti-pinch) / 43mm (Insulated bridge)
Safety DevicesWire rope breakage protection, torsion spring breakage protection, wireless airbag
Wind ResistanceStandard 450Pa, up to 700Pa
Color OptionsRAL9002, RAL9016, RAL1023, RAL5005, RAL3002, Customizable
⚡ Motor Technical Parameters
Model 10DI 10C 14 H-F
Output Torque100Nm100Nm140Nm
Output Shaft Speed24 rpm24 rpm14 rpm
Rated Power0.37KW0.37KW0.55KW
Protective LevelIP 54IP 54IP 54
Motor Details

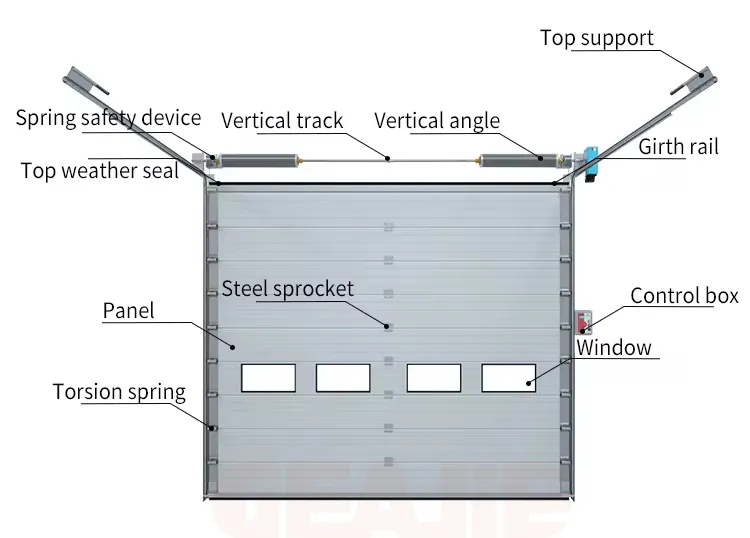

🏗️ Structural Drawing & Components

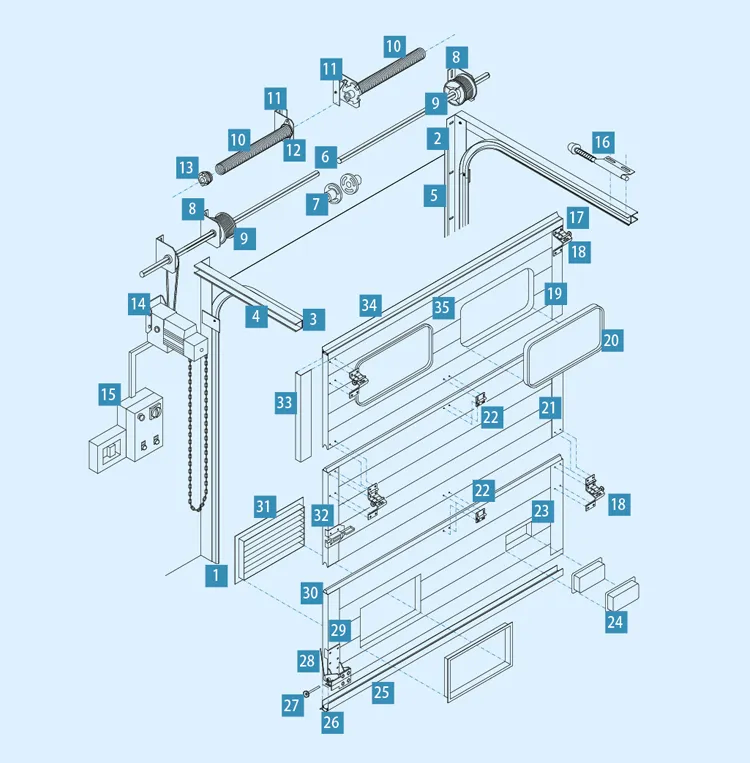

Structural Drawing
1. Rail
19. Top door panel
2. Vertical rail support
20. Lighting window
3. Horizontal rail
21. Middle door panel
5. Side sealing strips
23. Bottom door panel
6. Door shaft
26. Bottom sealing strip
11. Spring anti-breakage
27. Roller
14. Motor
29. Cable breakage device
15. Control box
34. Top sealing strips
🌟 Product Advantages

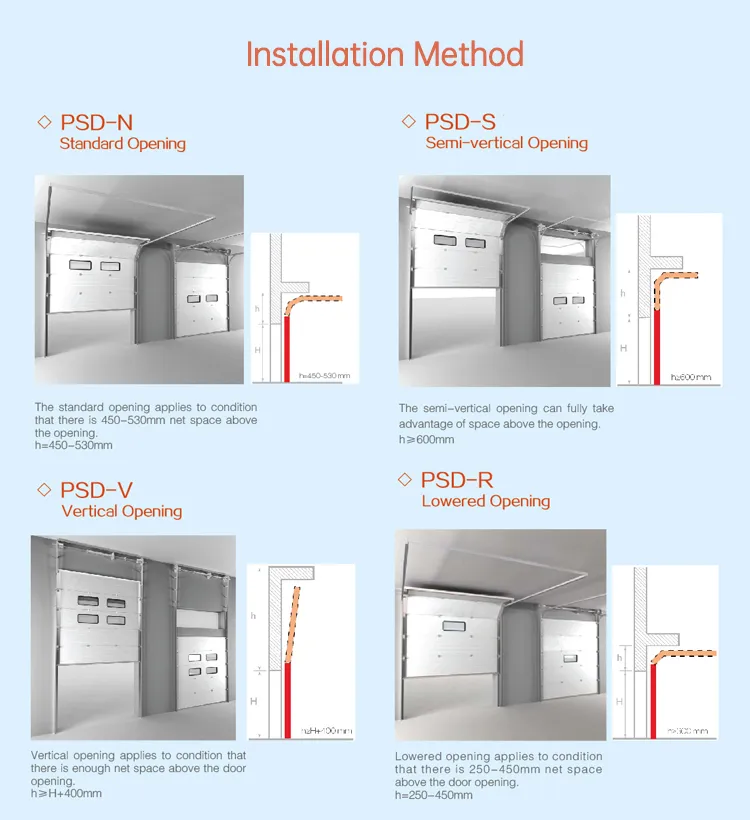

Customizable Lifting: Multiple lifting methods (straight, standard, high/low lintel) to fit site civil structures.
Smooth Operation: Unique roller shaft design distributes force to wheels on both sides, extending service life.
High-Quality Panel: Double-sided hot-dip galvanized steel with high-density polyurethane insulation and anti-pinch design.
Excellent Sealing: Equipped with EPDM rubber seals on all sides for superior weather resistance.
Safety First: Features spring brake, accident dropping safety steel cords, and wireless airbags.
Production Factory
❓ Frequently Asked Questions
Q1: What is the minimum order quantity (MOQ)?
A: 1 set is acceptable for our industrial door products.
Q2: What is the maximum size available for these doors?
A: The maximum width is 6.5M and the maximum height is 6M. Dimensions are fully adjustable.
Q3: Do you provide installation support?
A: Our products are designed for very easy installation. We provide technical guidance to ensure a smooth setup.
Q4: What safety features are included?
A: Standard features include wire rope breakage protection, torsion spring protection, and bottom wireless safety airbags.
Q5: What are the main applications for these doors?
A: They are ideal for factories, warehouses, logistics parks, garages, and hotels where insulation and security are required.
Q6: Are the colors customizable?
A: Yes, we offer standard colors like RAL9002 and RAL5005, but custom RAL colors can be requested.
