ScotiaFire Doors
1 / 5
Standard Dimensions:

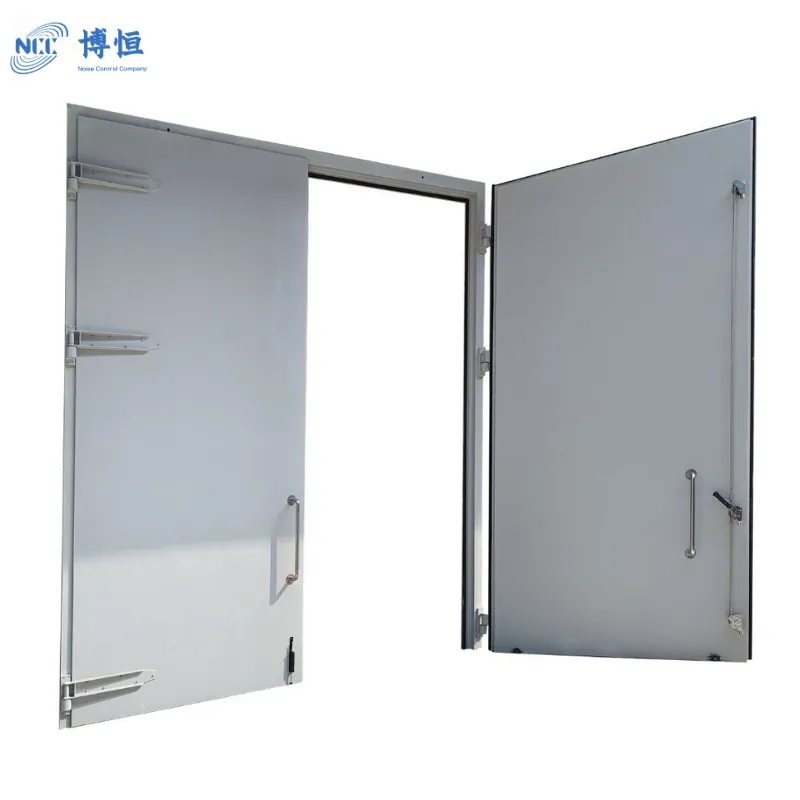

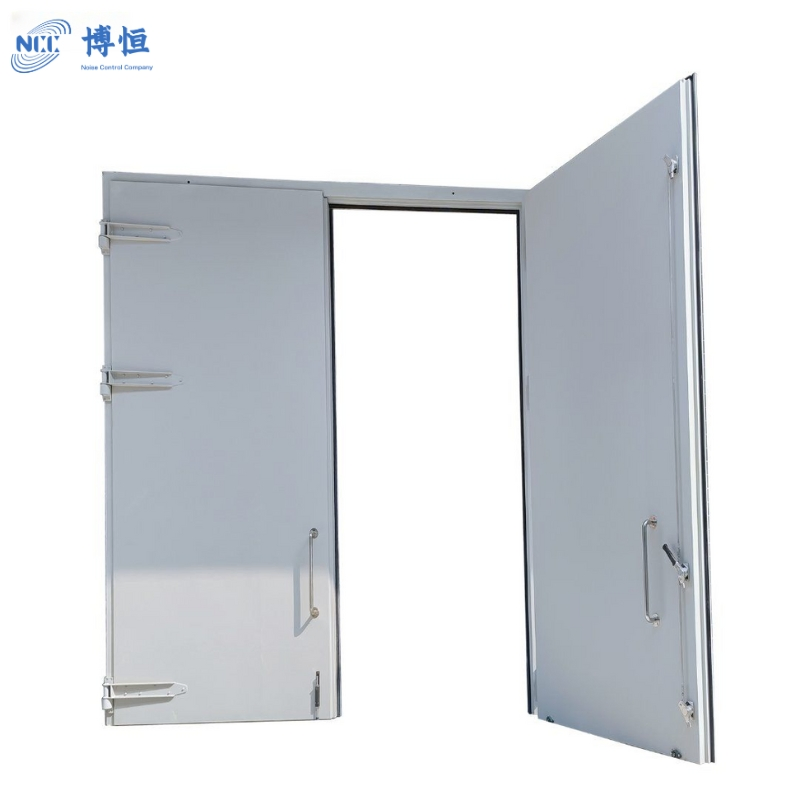

Double-door: 1500*2100mm

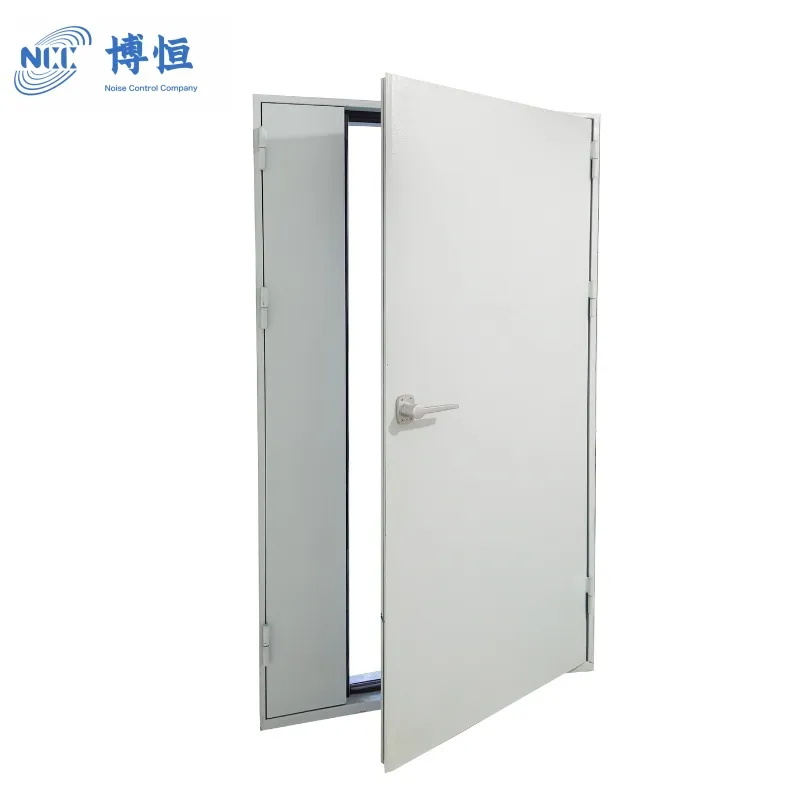

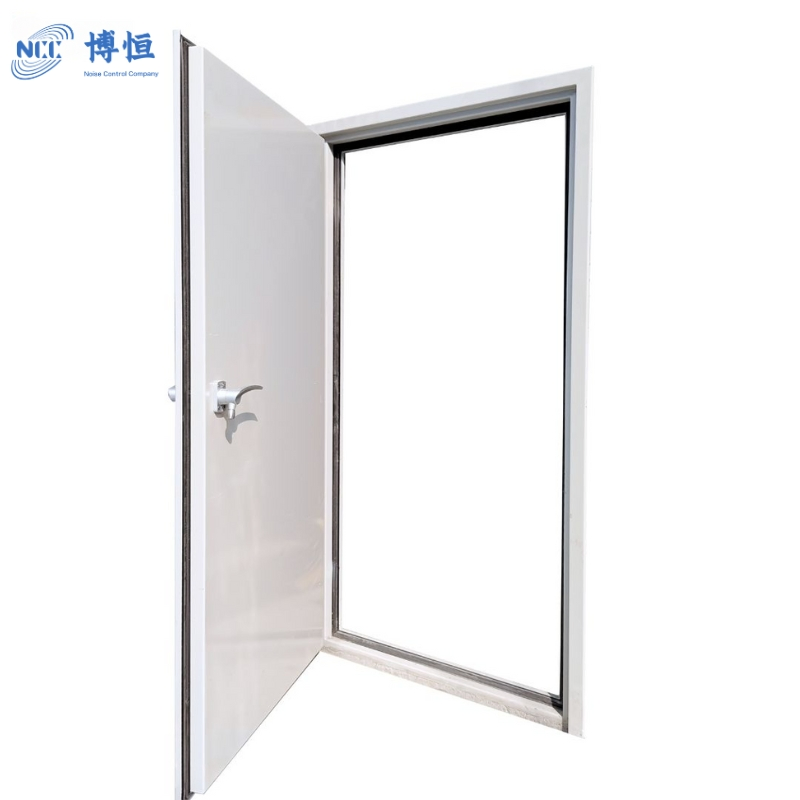

Single-door: 900*2100mm
Standard Thickness: 64mm, 89mm (Customizable)
Frame Construction: 2.0 mm Galvanized steel plate for maximum durability and acoustic integrity.
✅ High Performance: STC31-STC64 sound insulation rating.

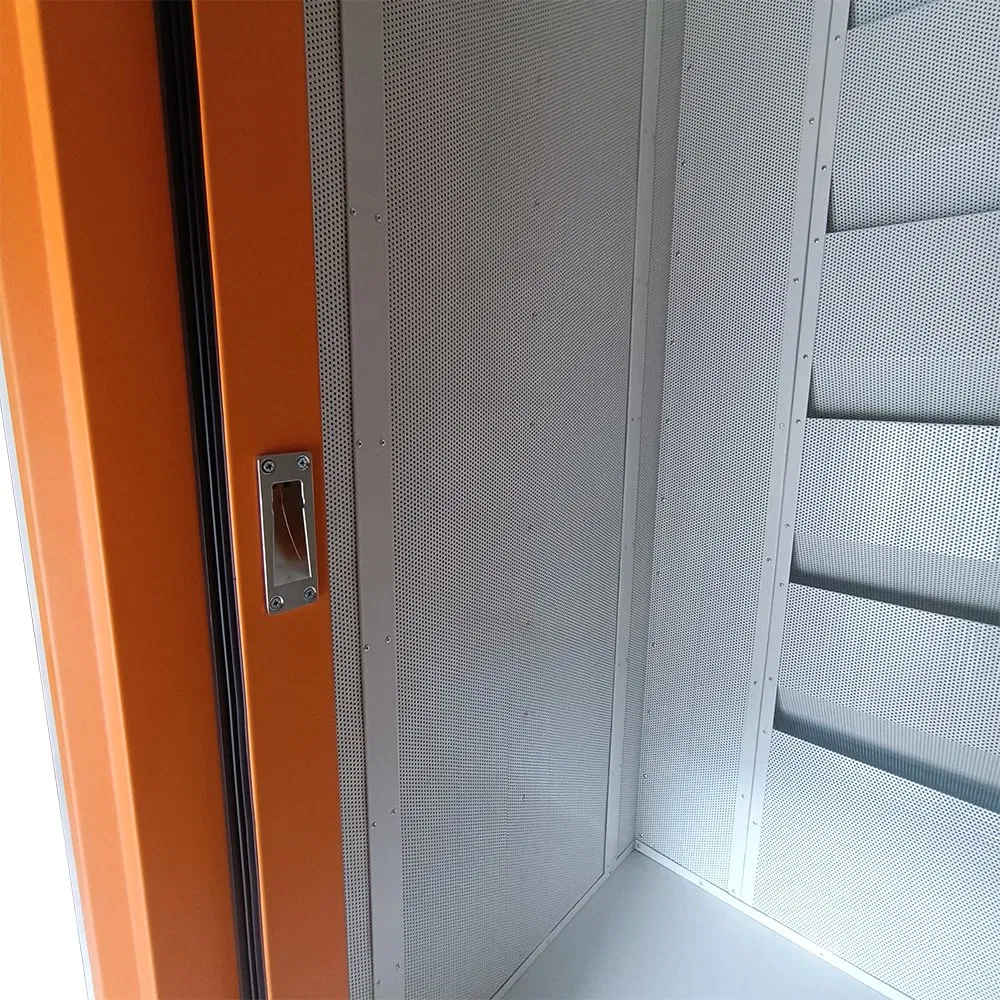

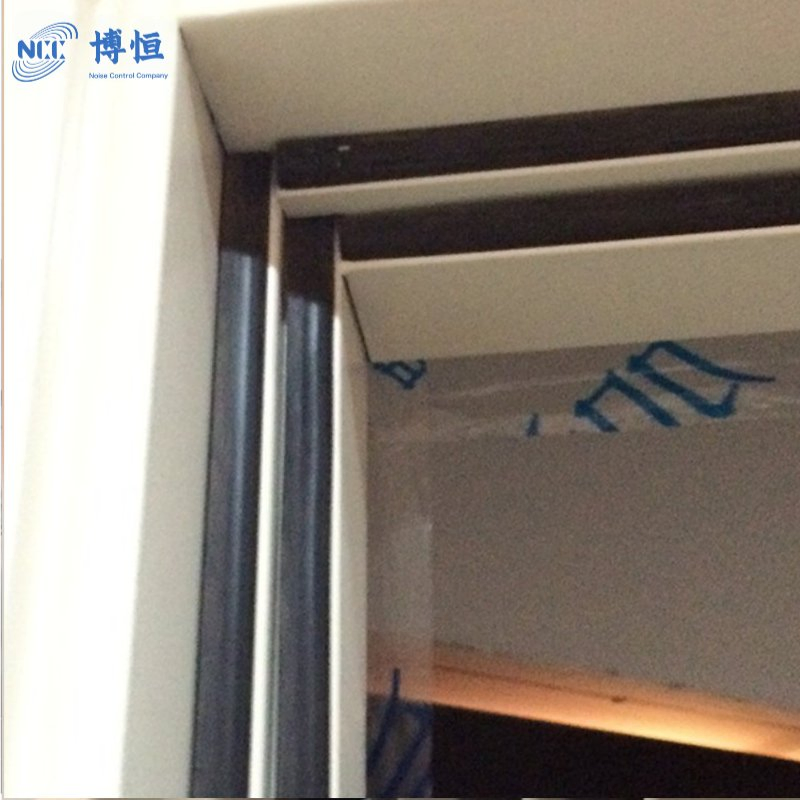

✅ Magnetic Sealing: Ensures gentle, noiseless door closure with superior airtightness.

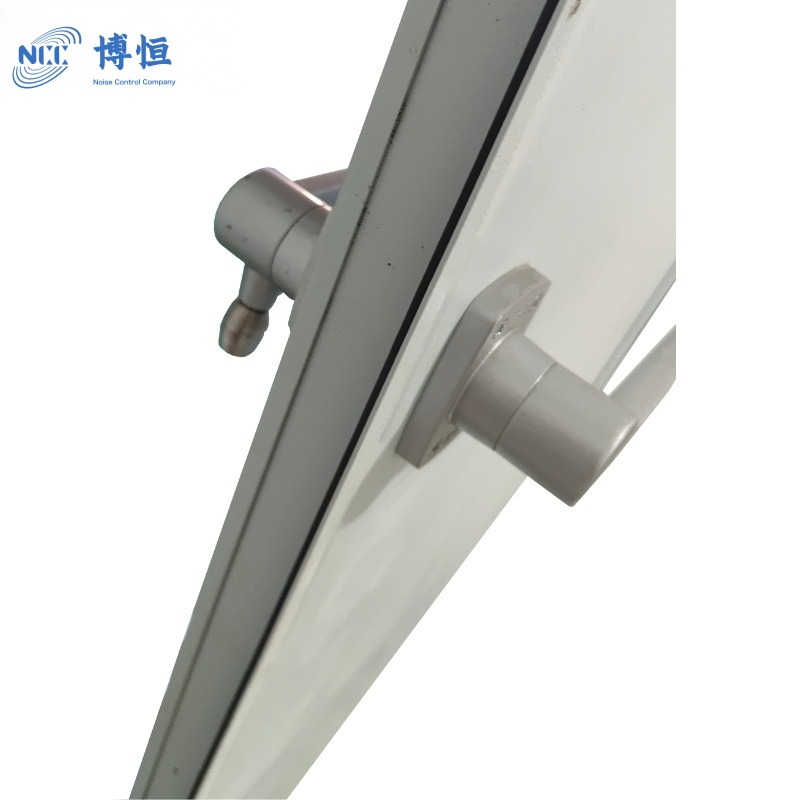

✅ Lift Hinge: Automatic ground contact sealing without needing a high threshold.
✅ Durable Build: All-metal construction ensures longevity in heavy-use environments.
✅ Easy Installation: Separable door frame design accommodates various wall thicknesses.
| Door Mode | STC Rating | Leaf Thickness | 125Hz (dB) | 500Hz (dB) | 2k Hz (dB) | Weight |
|---|---|---|---|---|---|---|
| Sound-Lock M-50 | 50 | 70mm | 27 | 40 | 42 | 58kg/m² |
| Sound-Lock M-53 | 53 | 70mm | 31 | 52 | 54 | 60kg/m² |
| Sound-Lock M-54 | 54 | 90mm | 32 | 54 | 52 | 65kg/m² |
| Sound-Lock M-61 | 61 | 90mm | 35 | 58 | 60 | 80kg/m² |
| Sound-Lock M-64 | 64 | 127mm | 35 | 60 | 67 | 86kg/m² |

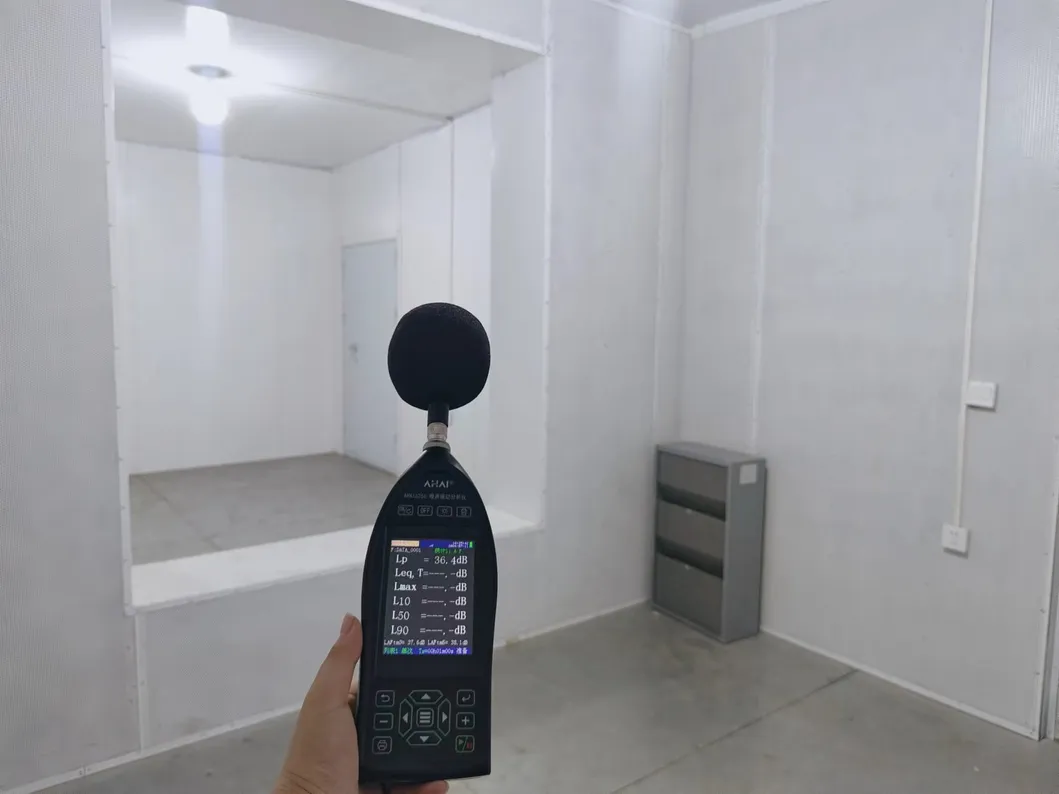

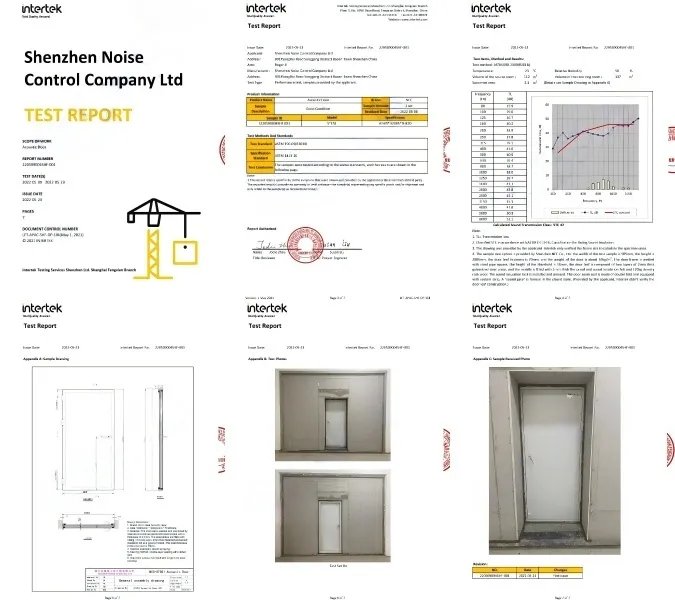

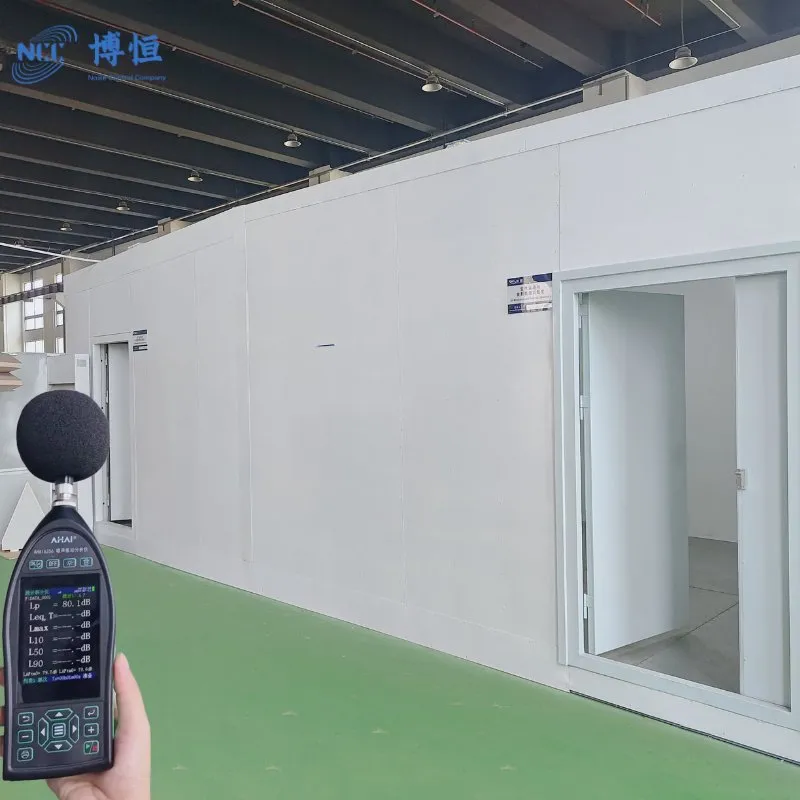

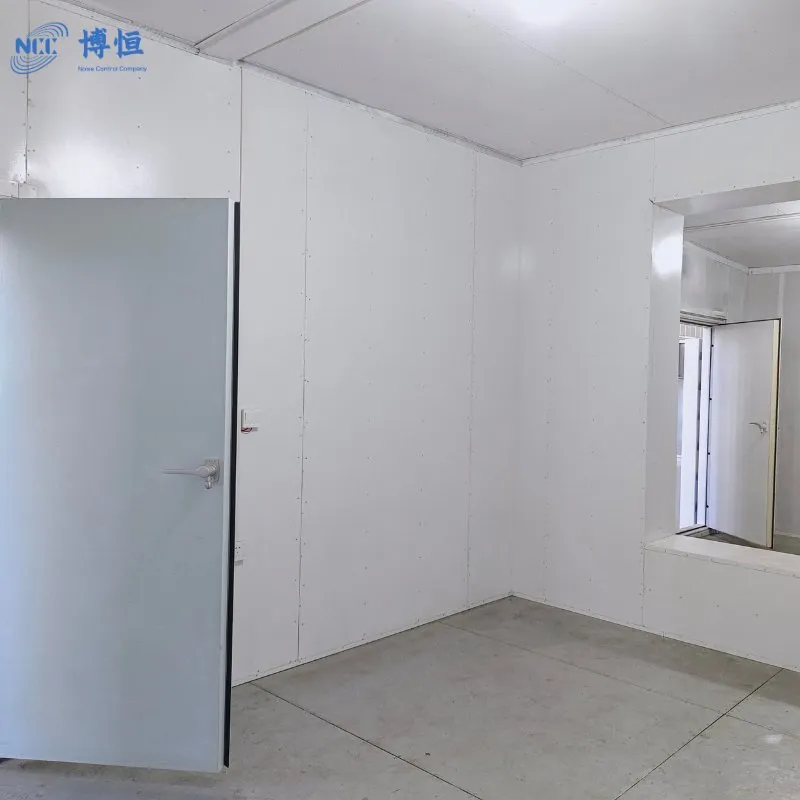

Our acoustic solutions undergo rigorous pre-production testing. Utilizing advanced apparatus, we ensure every batch meets exacting requirements. Laboratory measurements show noise reduction from external 80.1 dB down to 36.4 dB internally.
