| Model NO. | ISD-11 | Material | Aluminum Alloy |
| Type / Open Style | Sliding | Opening Type | With Remote Control |
| Special Function | Insulated and Cold Storage | Color | Customized / RAL Optional |
| Certification | TUV, CCC, ISO9001, RoHS, CE | Wind Resistant | Standard 450PA, Higher to 700PA |
| Panel Thickness | 40mm (Anti-Pinch) | Speed | 0.25m/S |
| Size Range | W:1500-6000mm H:2000-6000mm | Application | Factory, Garage, Hotel, Warehouse |

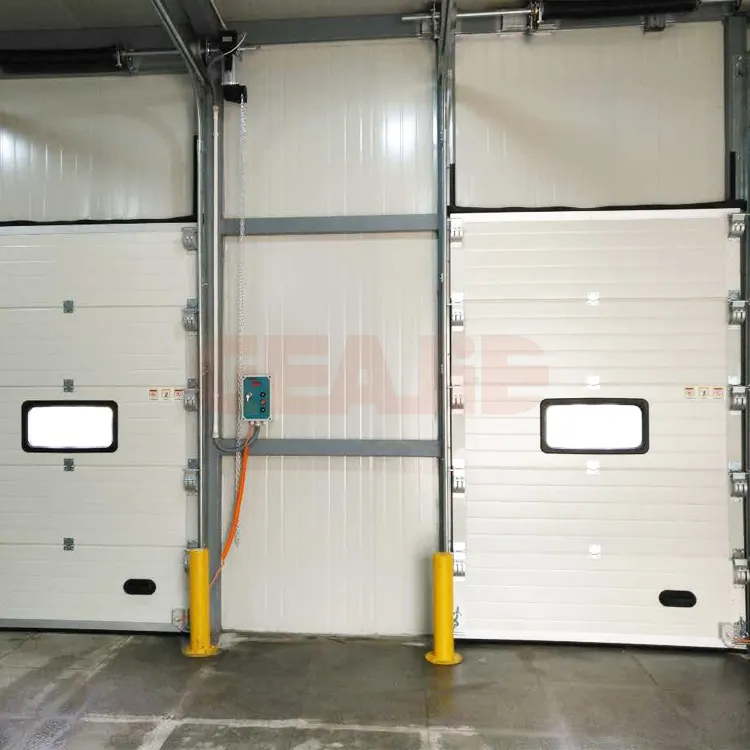

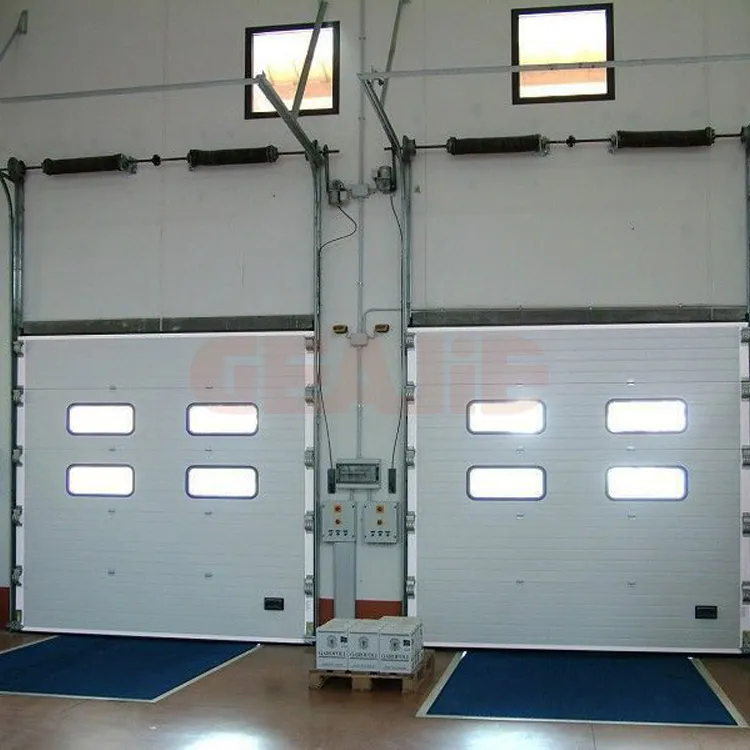

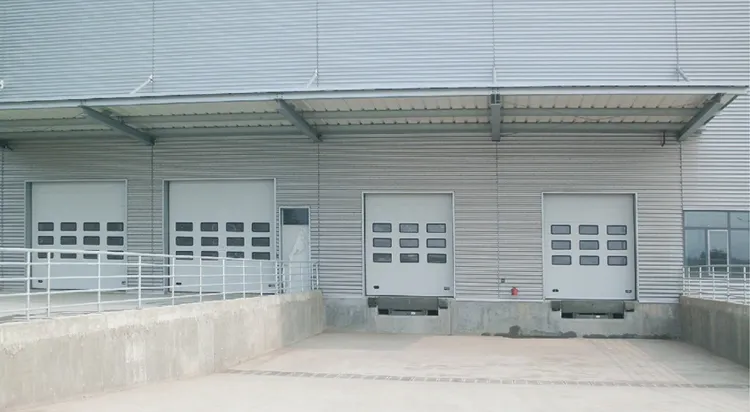

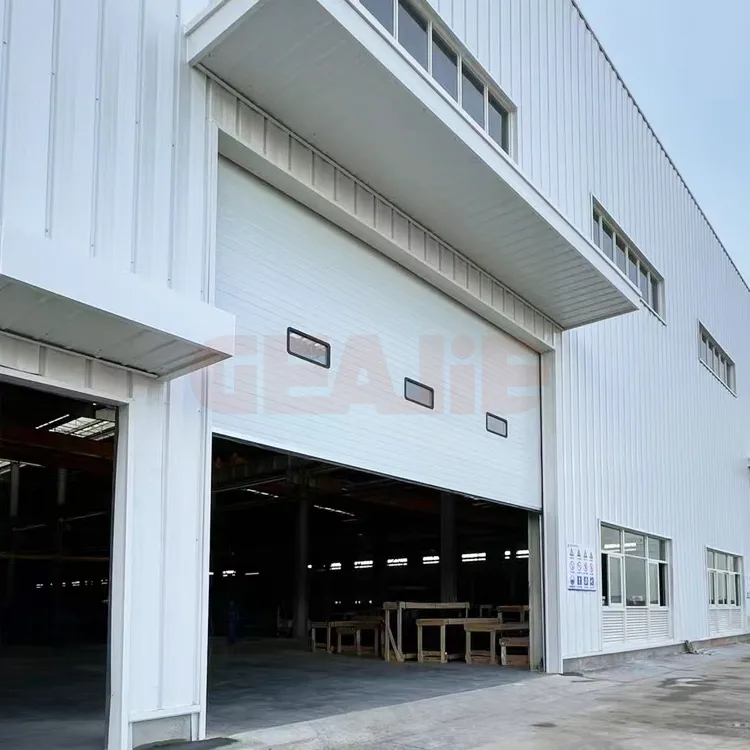

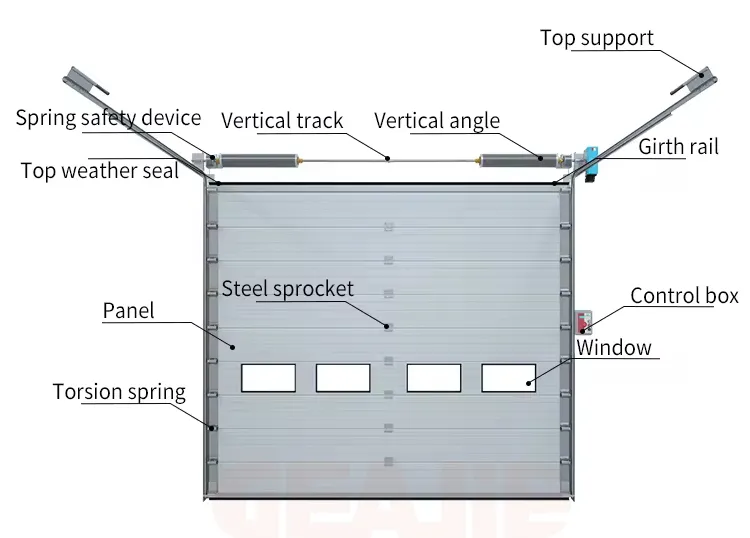

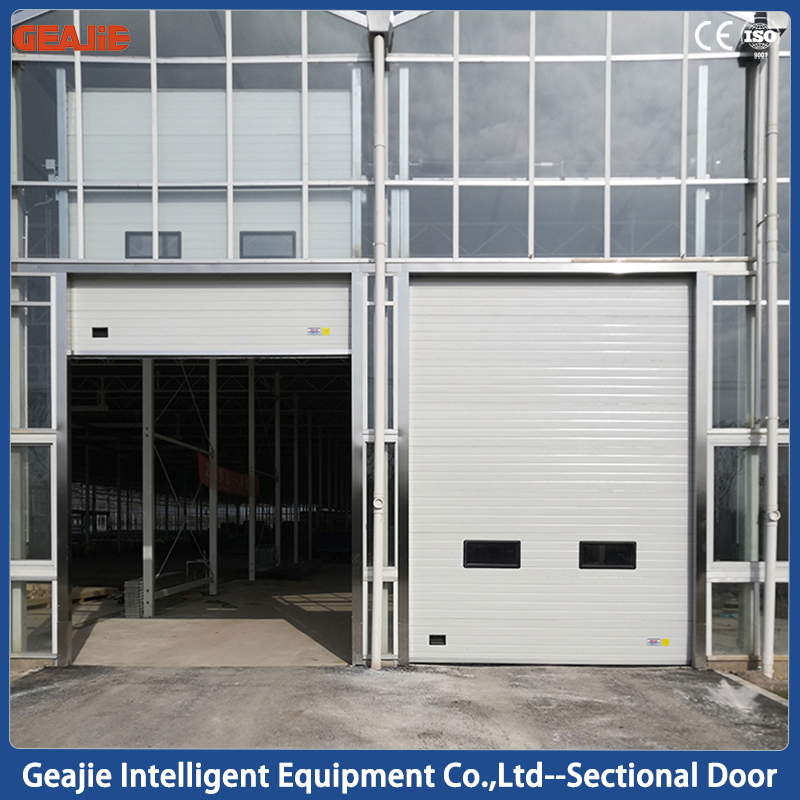

Industrial Sectional Door
Excellent insulation and closeness performance, good anti-wind structure, safe and reliable operation guarantee! Our industrial sectional doors can provide a variety of lifting methods according to the actual civil structure on site: such as straight type, standard lifting, high lintel lifting, and low lintel lifting.
| Material Description | |
|---|---|
| Door Panel Material | Two layers of 0.4mm powder coated galvanized steel plate, PU foaming density 48±2kg/m3 |
| Thickness Options | Standard 40mm; Optional 50mm / 75mm / 100mm |
| Safety Devices | Spring brake device (anti-broken), Wireless airbag, Cable breakage protection |
| Guide Rail | Special design three angle wheel brace; Mute nylon wheel (≤60db) |
| Sealing | EPDM sealing rubber on top, bottom, and sides |
| Parameters | Model 10DI | Model 10C | Model 14 H-F |
|---|---|---|---|
| Output Torque | 100Nm | 100Nm | 140Nm |
| Rated Power | 0.37KW | 0.37KW | 0.55KW |
| Protective Level | IP 54 | IP 54 | IP 54 |
| Rated Voltage | 1*AC 230/440V | 3*AC 230/440V | 1*AC 230V |
