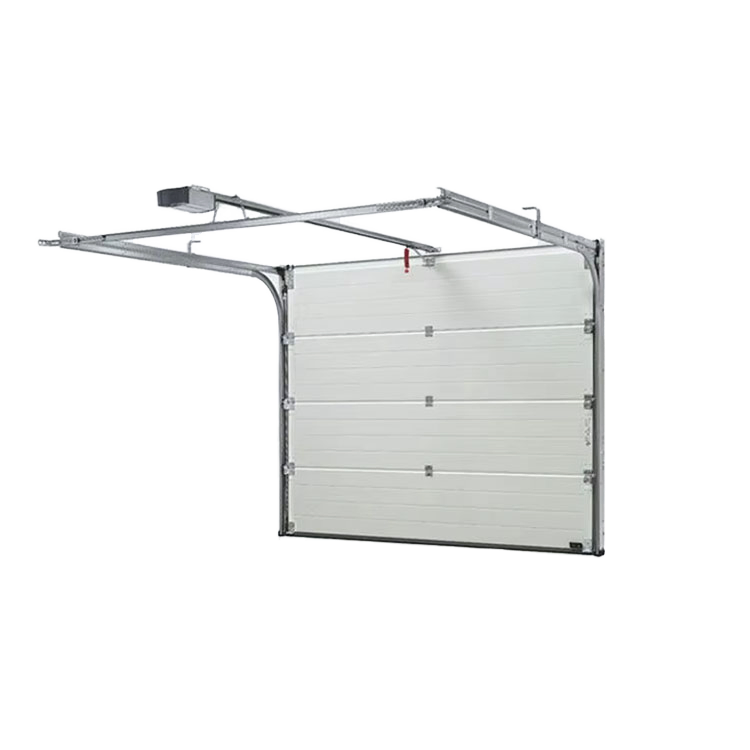

Industrial Commercial Horizontal Sectional Overhead Garage Door Office Sliding Export

After-sales Service: Online Technical Support
Material: Steel
Thickness: 40mm

Product Description

Basic Information
Model NO.
ABXTSM
Opening Style
Rolling
Opening Type
Hand Operated / Electric
Material
Aluminum Alloy / Steel
Door Panel
PU Sandwich Panel (42mm)
Feature
Windproof, Insulated
Application
Workshop, Logistics, Warehousing
Surface Finishing
Finished / Embossed
🌡️ Thermal Insulation

K=0.7W/(m².K) with high-density polyurethane filling.

🛡️ Wind Resistance

700pa rating with patented wind-resistant tracks.

⚙️ Intelligent Control

Precise positioning with electronic limit motors.

Product Description

This insulated sectional door is a commonly used logistics entrance and exit door in industrial buildings, especially in buildings with temperature requirements. It features heat insulation, wind protection, anti-theft, sealing, safety, and intelligent control.

The door panel is composed of multiple layers. It adopts a segmented cold-bridge design and is filled with high-density polyurethane material (100% fluorine-free). Corrosion-resistant hardware accessories and a dynamic balance system are used. The rollers on both sides of the door run up and down along the guide rails as a whole, which improves the efficiency and safety of entering and exiting the site.

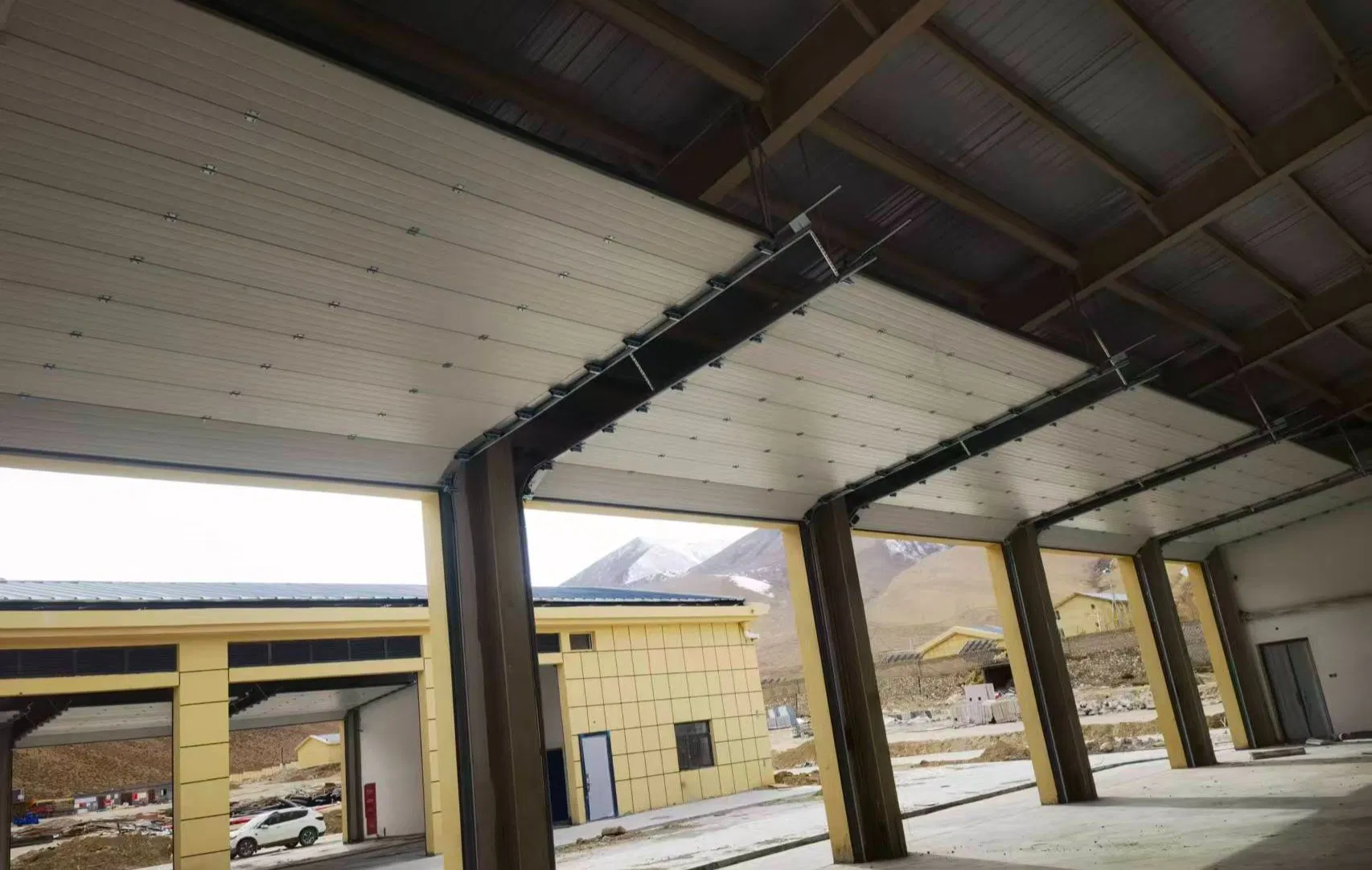

Industrial Sectional Door Overview

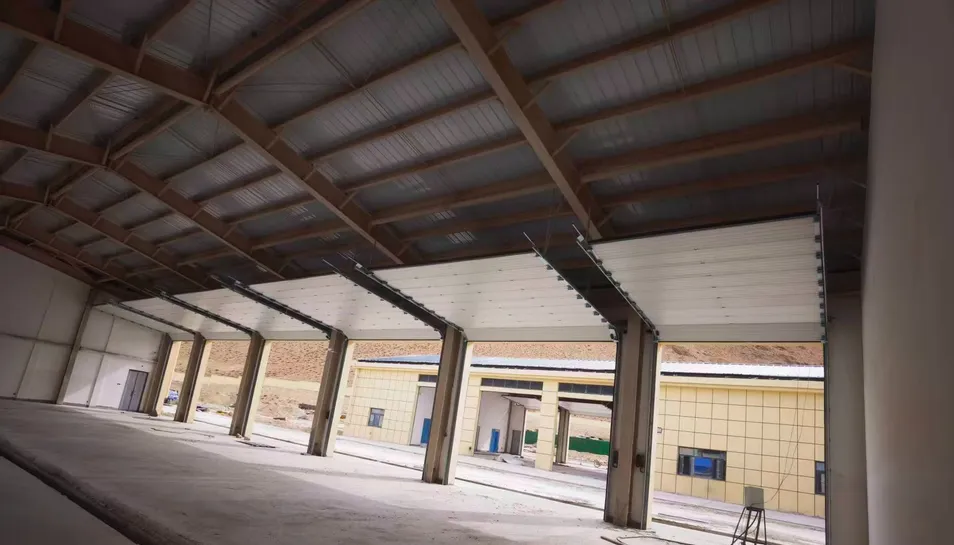

Door Detail 1

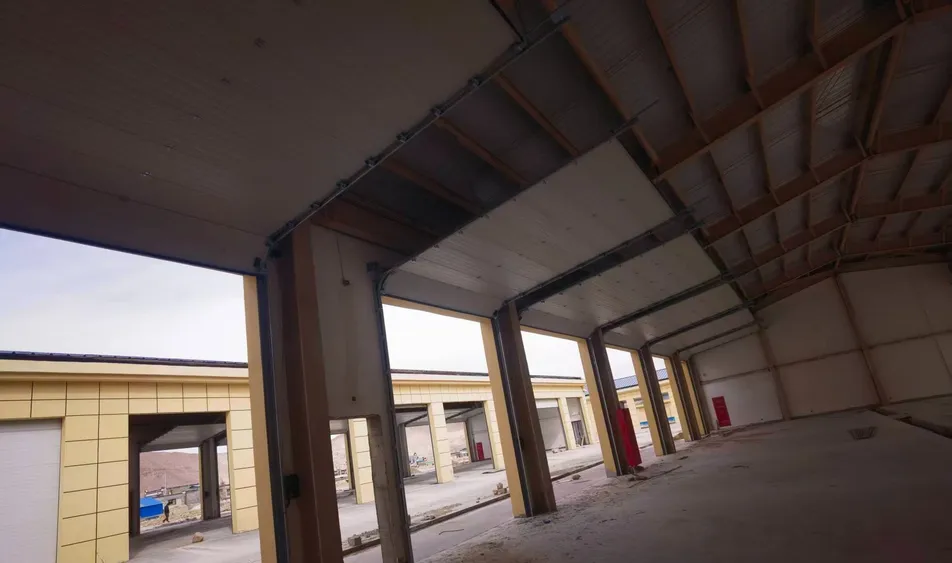

Door Detail 2
Technical Specifications
Industry AttributeIndustrial Door
Polyurethane Density48kg/m³, closed-cell rate >95%
Panel Thickness42mm
Panel Height500mm
Rail SystemPatented wind-resistant track with insulation cotton
AccessoriesStainless steel hinges, aluminum alloy pulley bearings
Lifting ModesVertical Lift / High Lift / Standard Lift
Operating Speed0.25m/s
Water TightnessGrade 1 (GB/T 7106-2008)
Air TightnessGrade 7 (GB/T 7106-2008)
Standard ColorsRAL9002 / RAL9006 / RAL7040 / RAL7045

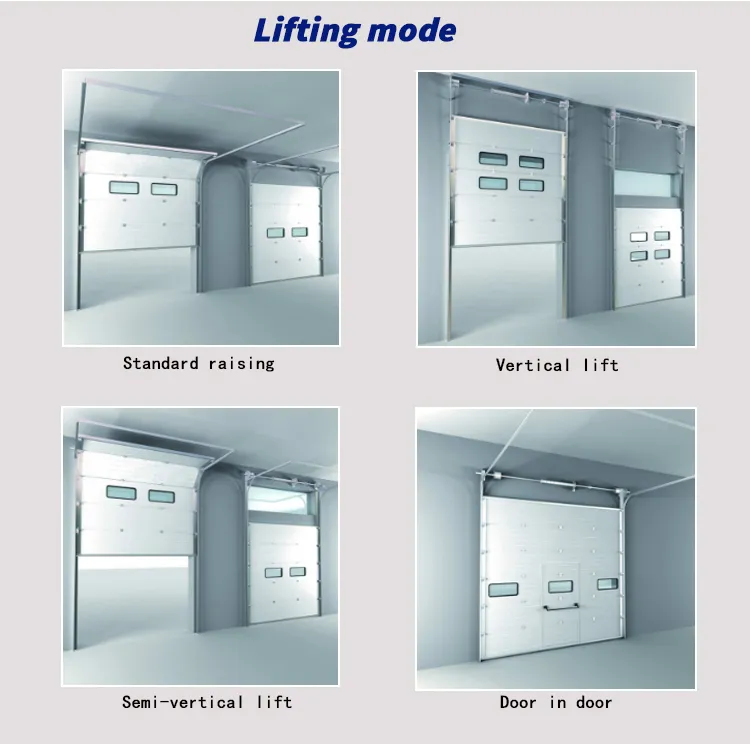

Technical Drawing

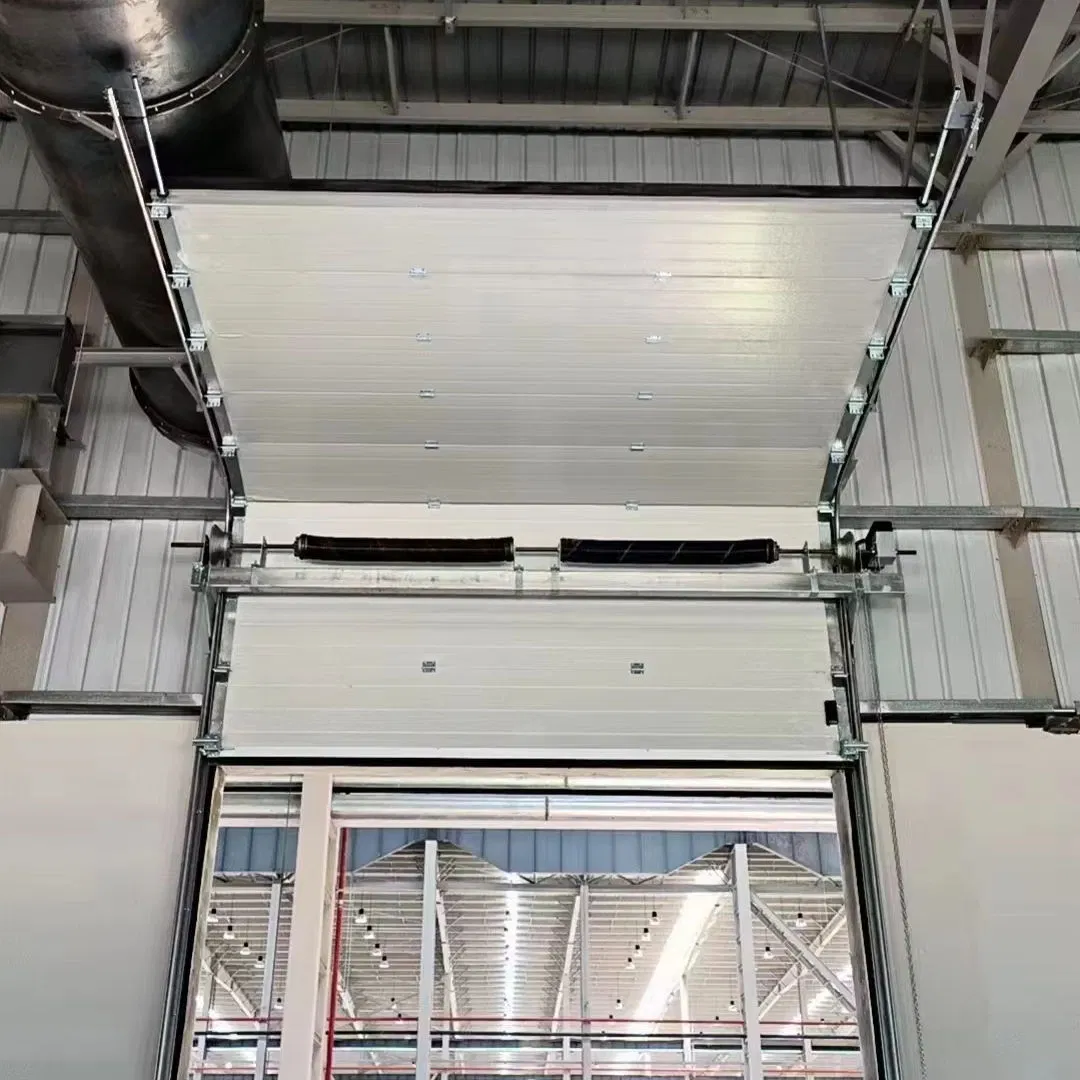

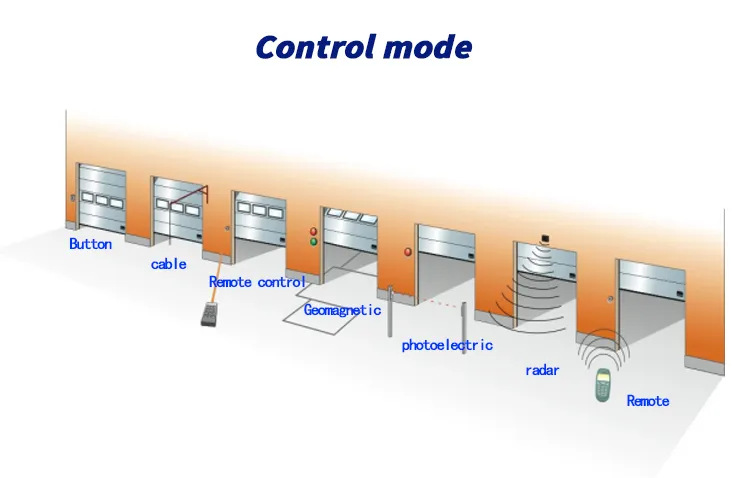

Installation View

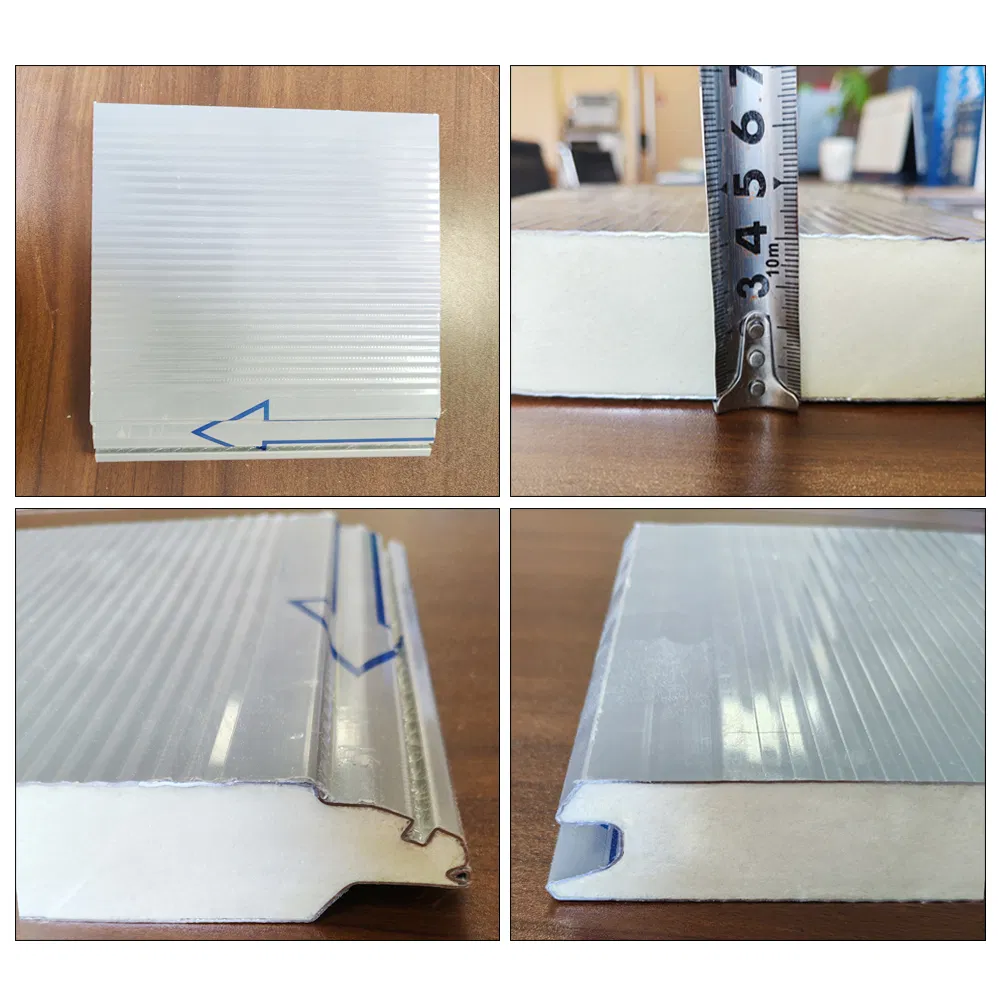

Product Component
Product Video
Video Poster
Packing & Delivery
Package Size
600.00cm * 500.00cm * 500.00cm
Gross Weight
1000.000kg
Package Type
Customized Packaging

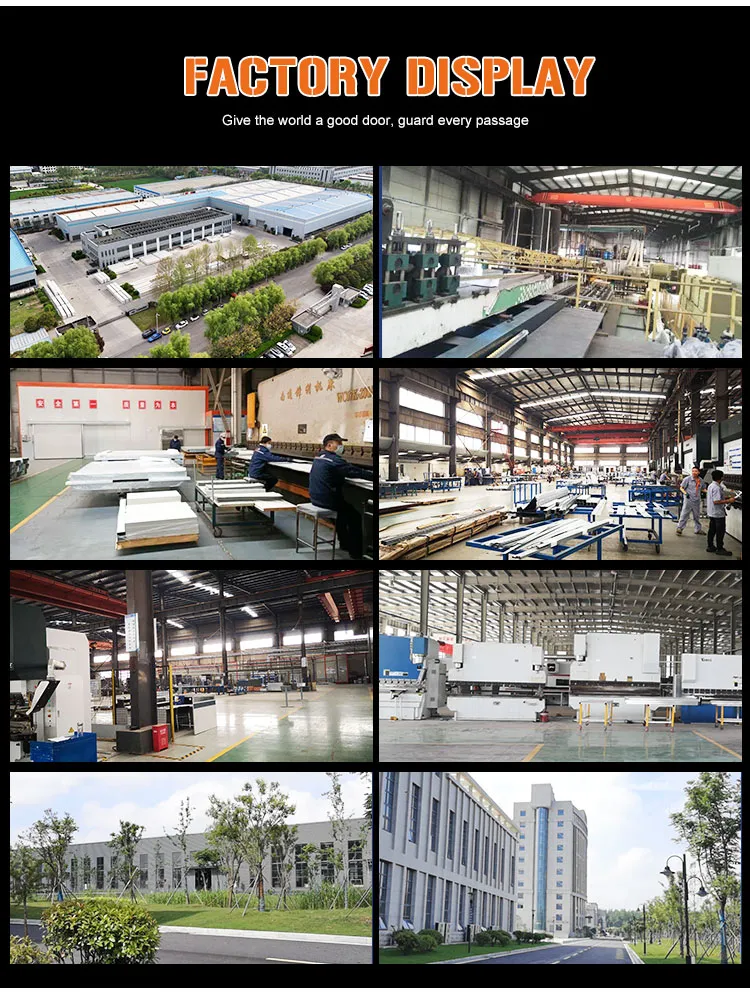

Production Facility
Frequently Asked Questions
What materials are used for the door panels?
The door panels are PU sandwich panels with a total thickness of 42mm, using high-density polyurethane material that is 100% fluorine-free for superior insulation.
How wind-resistant is this sectional door?
The door has a wind resistance rating of 700pa (Grade 1 according to GB/T 7106-2008) and features a patented wind-resistant track design.
Can the door be operated during power outages?
Yes, the door supports both electric and manual opening modes, ensuring accessibility even without power.
What are the available lifting modes?
The door supports multiple installation configurations including Vertical Lift, High Lift, and Standard Lift (Right Angle lift) to suit various architectural requirements.
What kind of maintenance does the spring system require?
The high-strength spring steel undergoes shot blasting and electrophoresis treatment for corrosion resistance, making it durable and virtually maintenance-free.
Is it possible to add windows to the door?
Yes, optional PC windows are available, and you can even choose heated windows to prevent fogging in specific environments.
