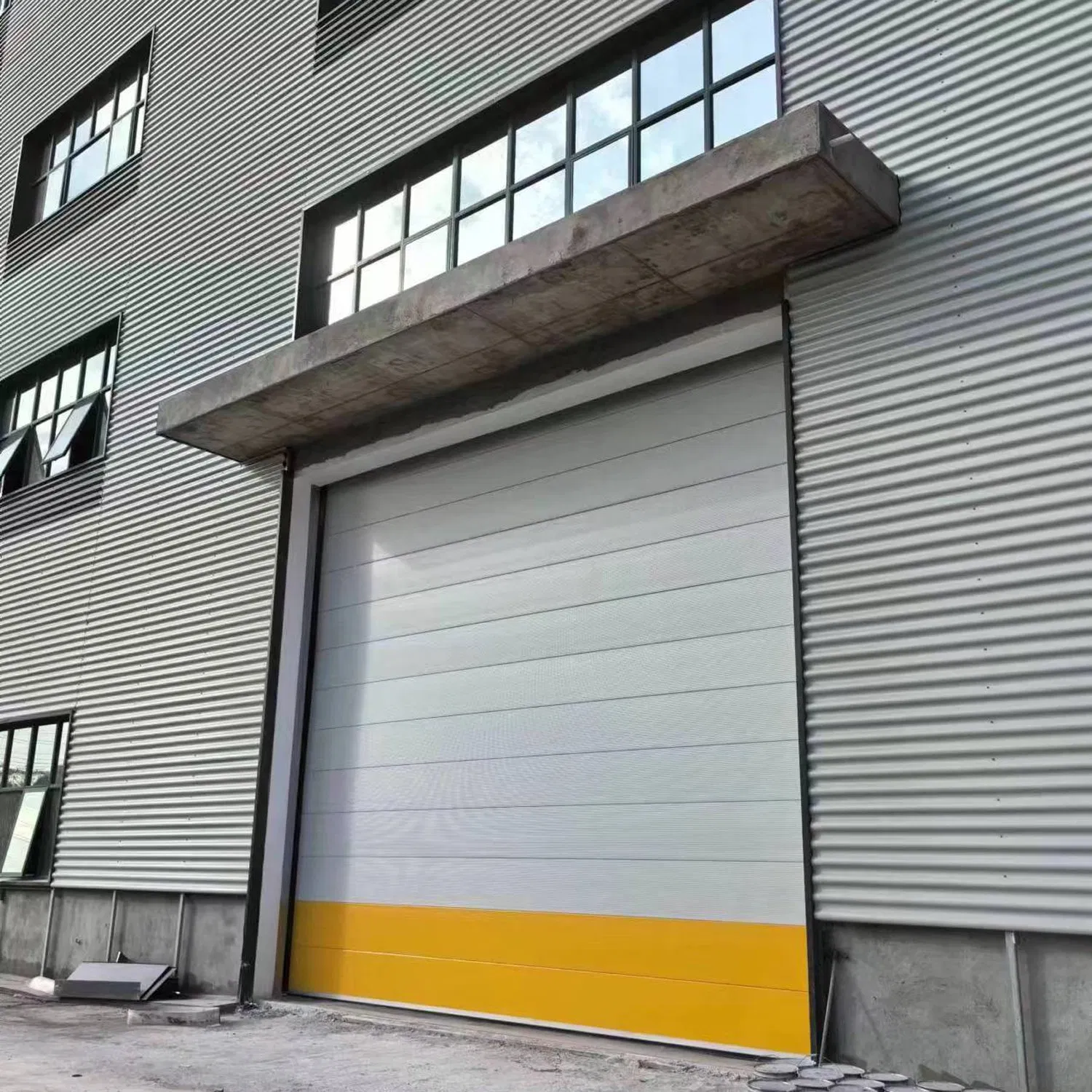

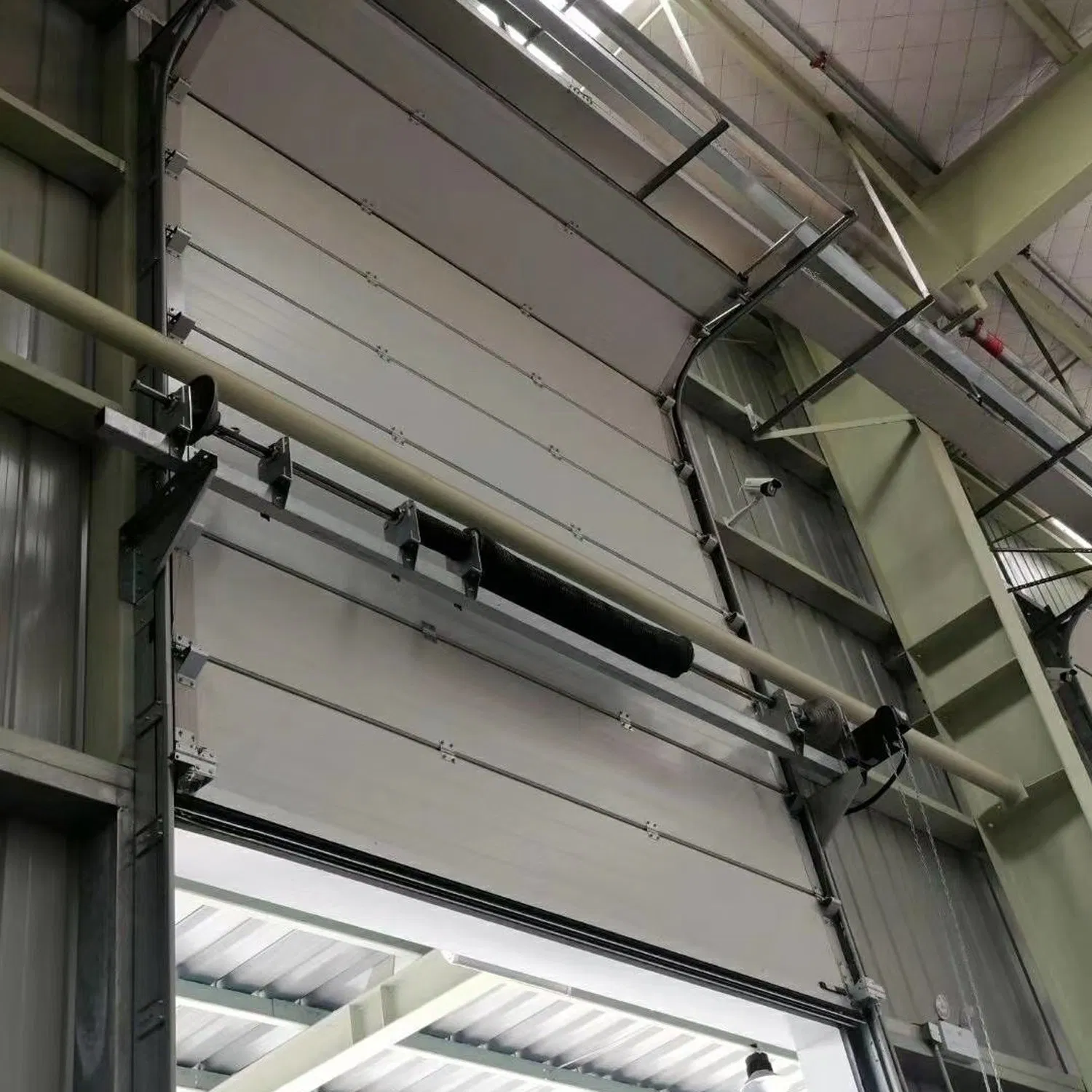

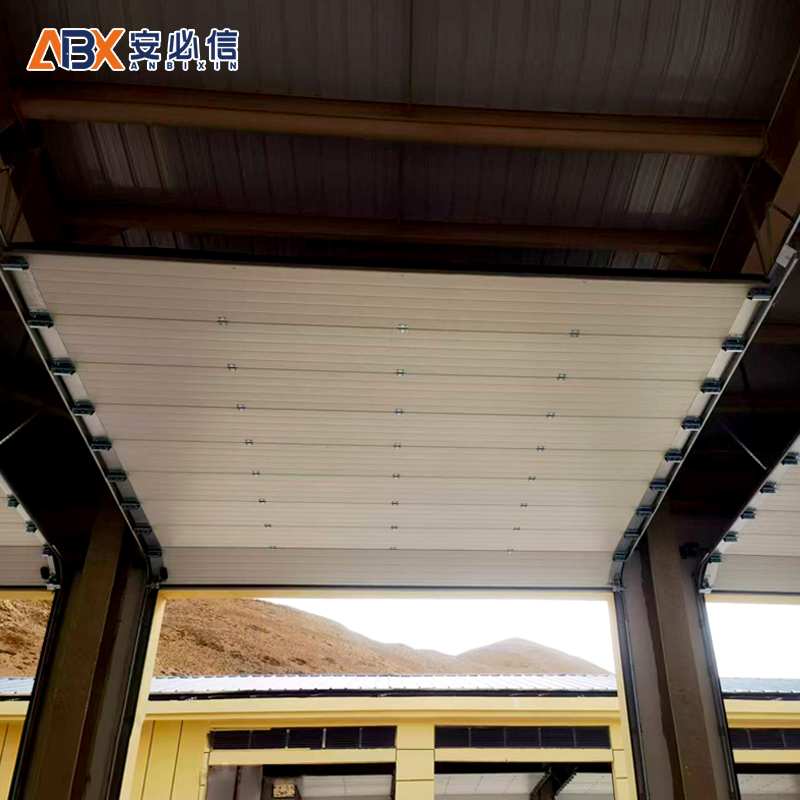

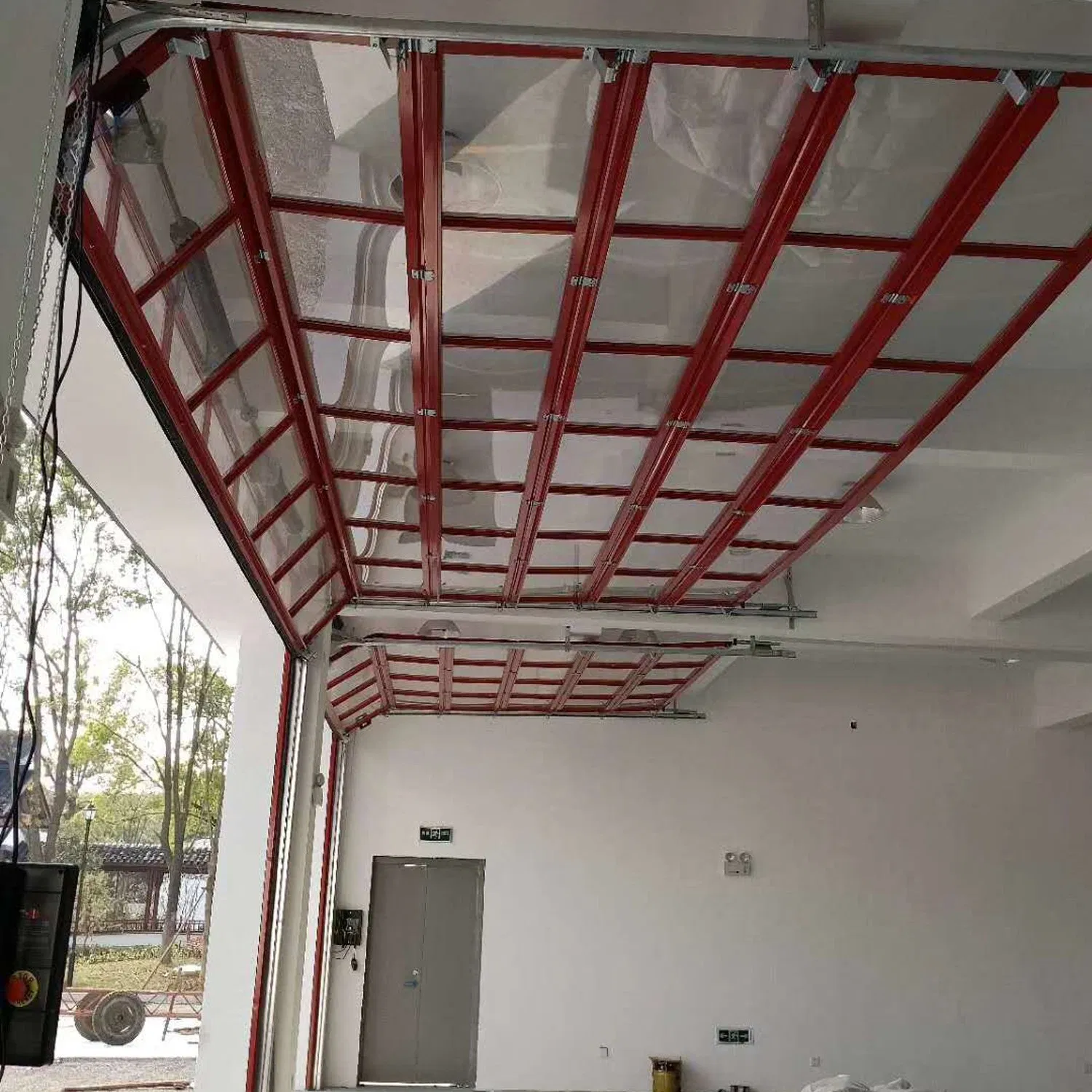

Industrial lifting doors are professional industrial exterior doors designed to meet rigorous requirements for insulation, sealing, high-frequency switching, service life, and safety. They are increasingly adopted by modern industrial and logistics projects worldwide.
Also known as industrial sliding doors.
Segmented vertical movement for space efficiency.
Designed for specific high-clearance architectural needs.
Industrial lifting doors are engineered with a comprehensive system including door bodies, balance systems, drive and control systems, safety devices, tracks, and professional seals.
| Parameter | Specification |
|---|---|
| Speed | 0.2-0.3m / s |
| Door panel | 42mm |

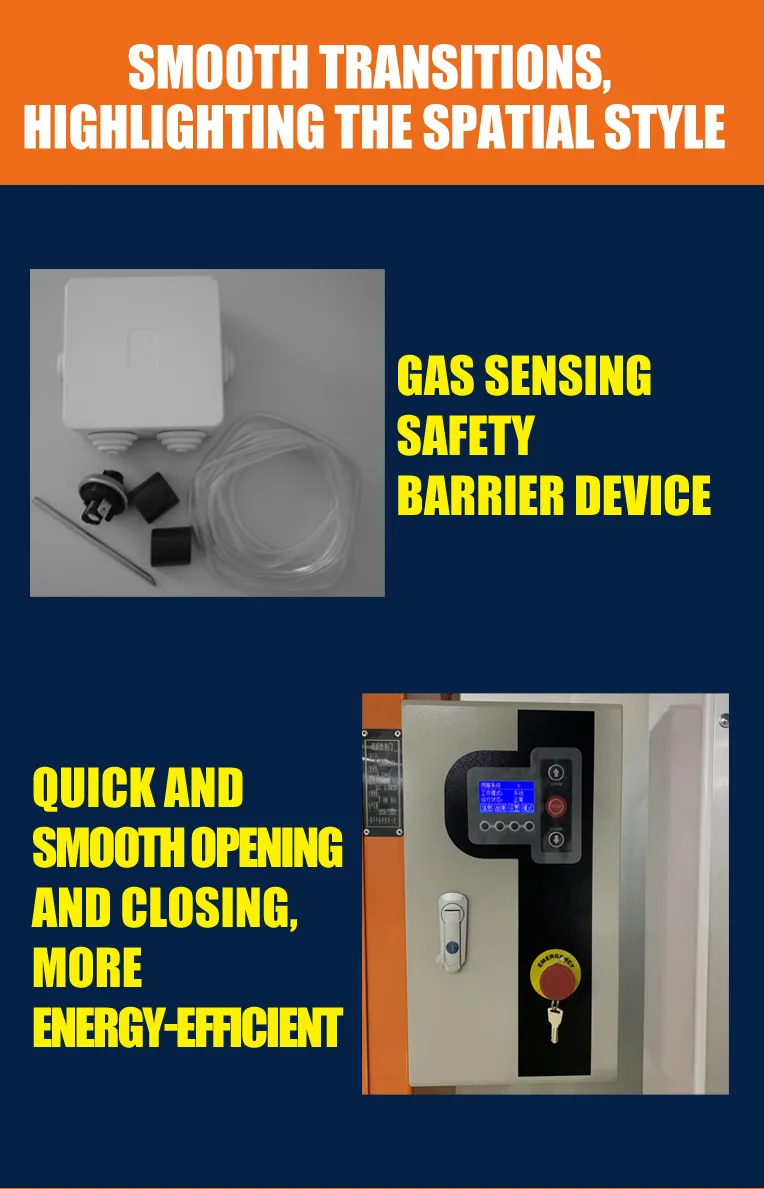

| Safety protection | Anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion spring | ≥30,000 times |

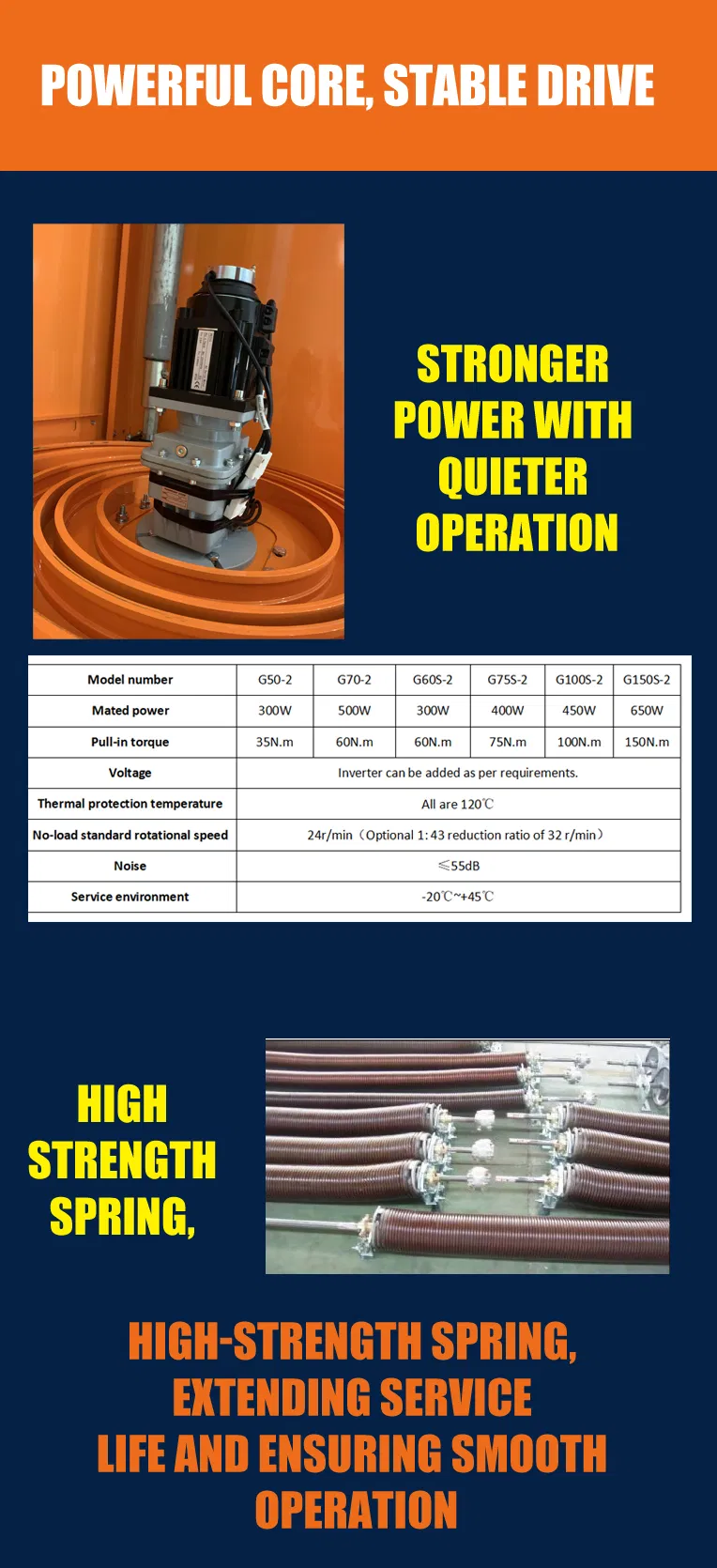

| Motor | Intelligent control system with human-machine interface |
| Watertight | Level 3 (water pressure 30Pa) |
| Foam material | High-density polyurethane foaming material (48kg + 2kg / m³) |
| Manual operation | Manual electric interchangeable |
| Wind loading rating | 4*4 Newton 700 / m2 |
| Sound insulation | 24dB |
| Airtight | Level 2 2.0 m3 / m2 / h (under 50Pa pressure) |
| Fire rating | Class B fire retardant |
