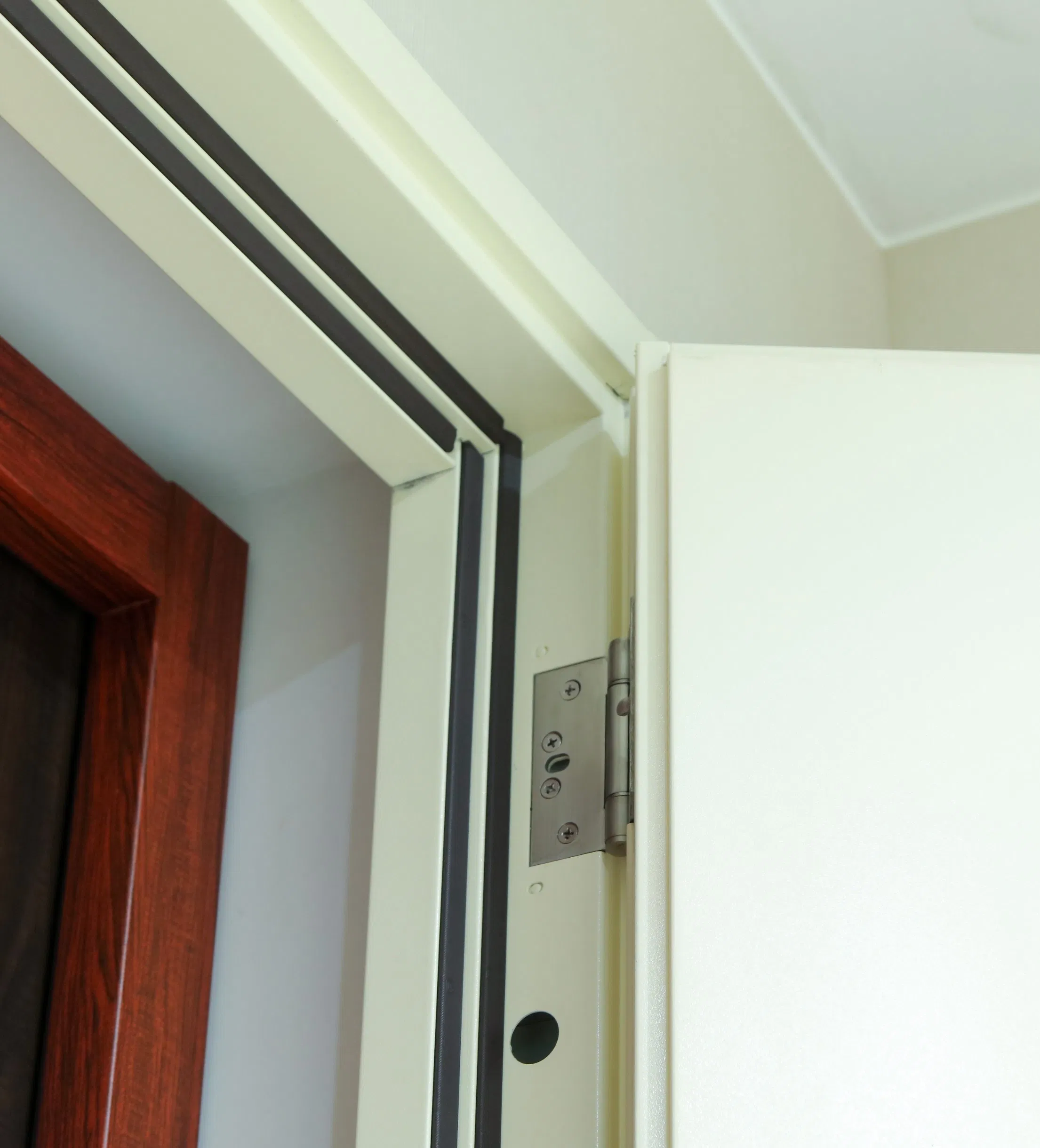

Recording Studio Sound Insulation Interior Wood Grain Acoustic Indoor Soundproof Doors for Theatre

Customization: Available
After-sales Service: Online Technical Support
Warranty: 2 Years

Product Description

📊
Overview & Basic Info
Material
Steel
Style
Classic
Open Style
Swing
Sound Insulation
30 dB
Screen Netting
Fiberglass
Veneer Wood
Powder Coated
Position
Commercial
Security Rating
C
Surface Finishing
Finished
Function
Security, UL 2 Hours Fire Rated
Fire Rated Time
120 Minutes
Special Door Type
Fire Doors
Certificated
UL Listed
Production Capacity
30000 / Month
📝
Product Description

UL (Underwriters Laboratories) Listed fire rated steel doors are doors that have been tested and certified by UL to meet specific standards for fire resistance and safety. These doors are designed to prevent the spread of fire and smoke for a specified amount of time, usually ranging from 20 minutes to 3 hours, depending on the door's construction and the intended use.

Main Features:

  • Steel construction: Durable and fire-resistant material providing protection against heat and smoke.
  • Fire-resistant materials: Core made of gypsum or mineral wool to provide insulation and reduce heat transfer.
  • Intumescent seals: Materials that expand when exposed to heat, forming a barrier against smoke.
  • Self-closing and positive latching: Automatically close when sensing heat and stay securely latched under pressure.
  • Label and labeling: Marked with a label indicating the fire rating and relevant safety info.

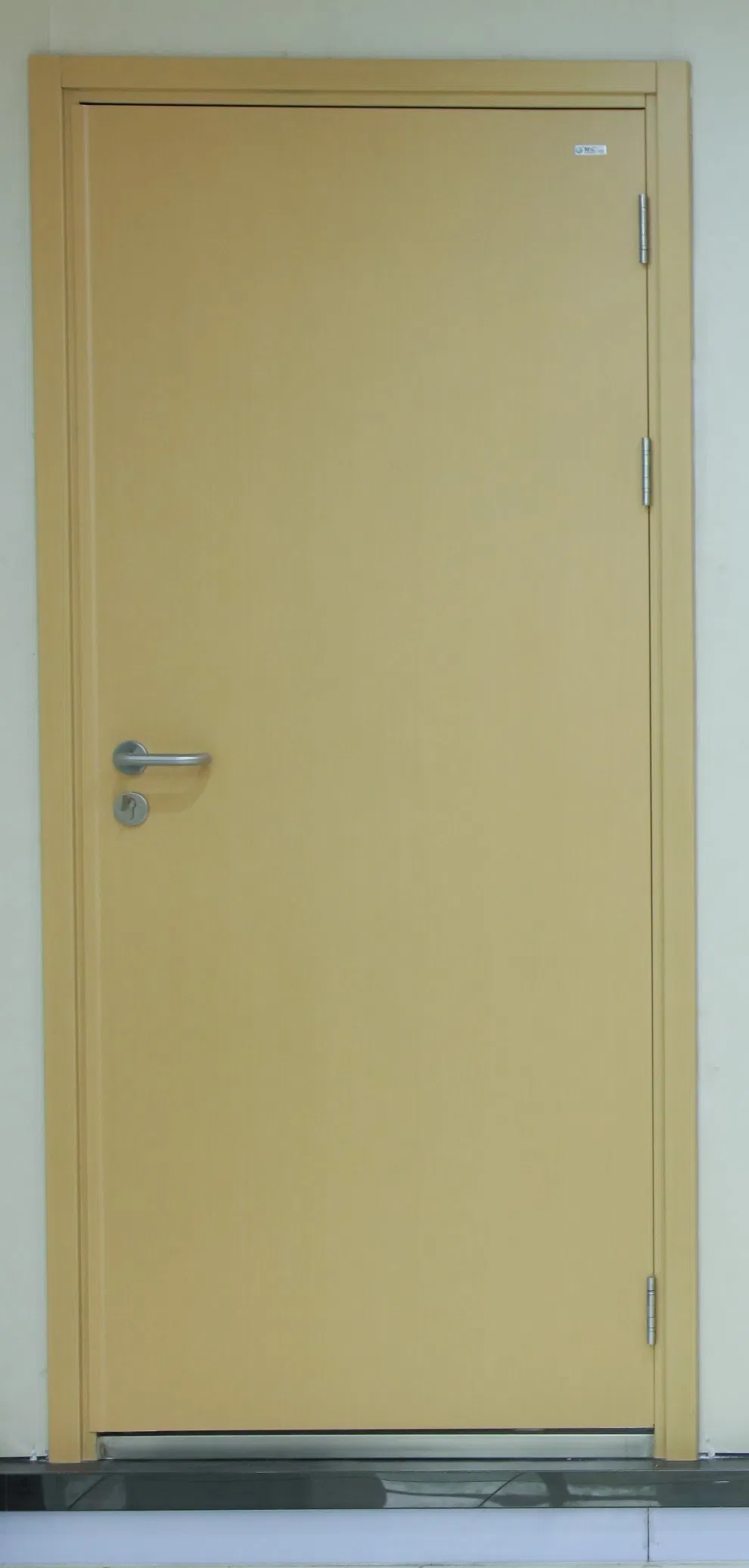

UL Listed Fire Rated Door
🖼️
Detailed Photos

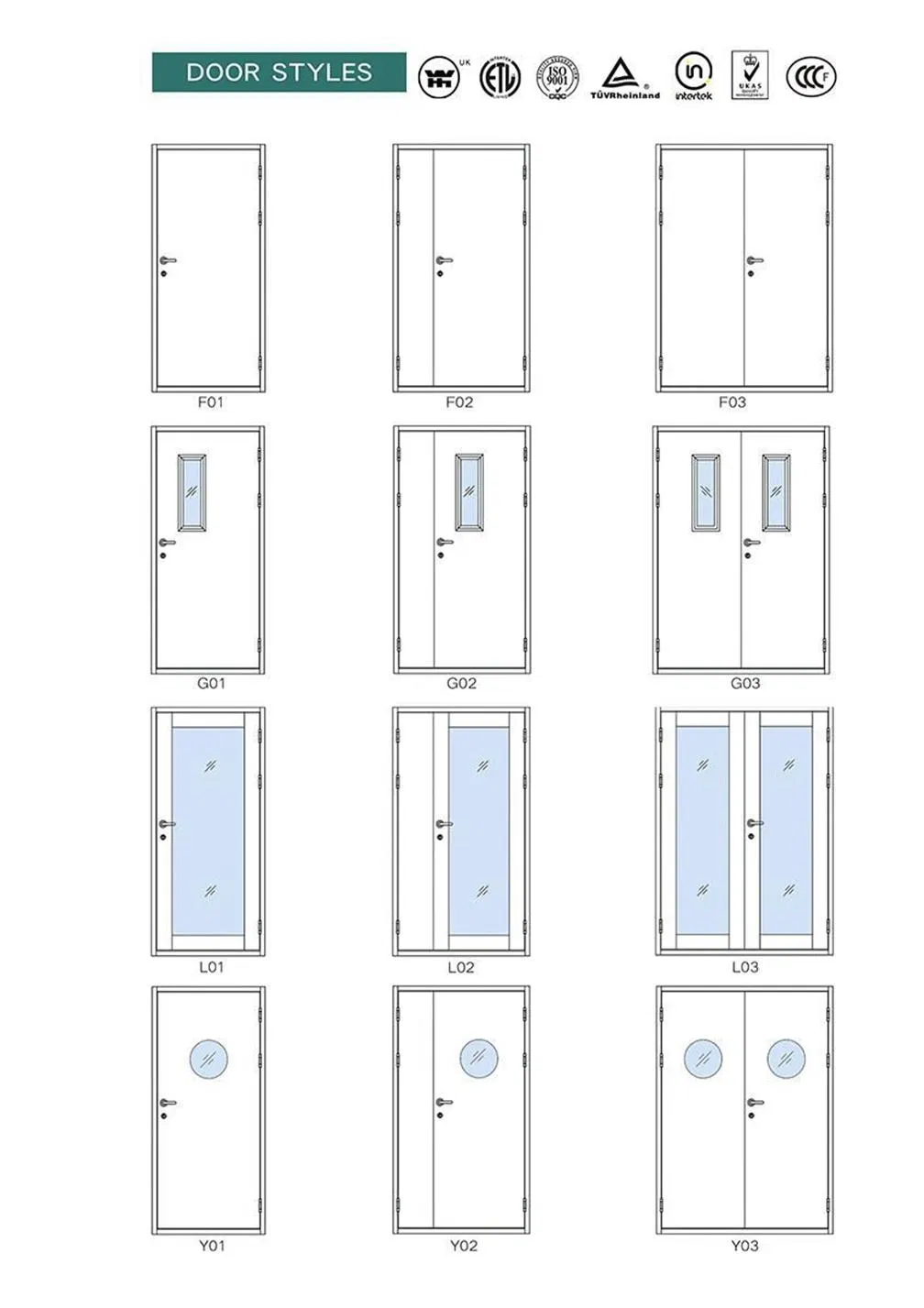

Detailed Door Photo 1

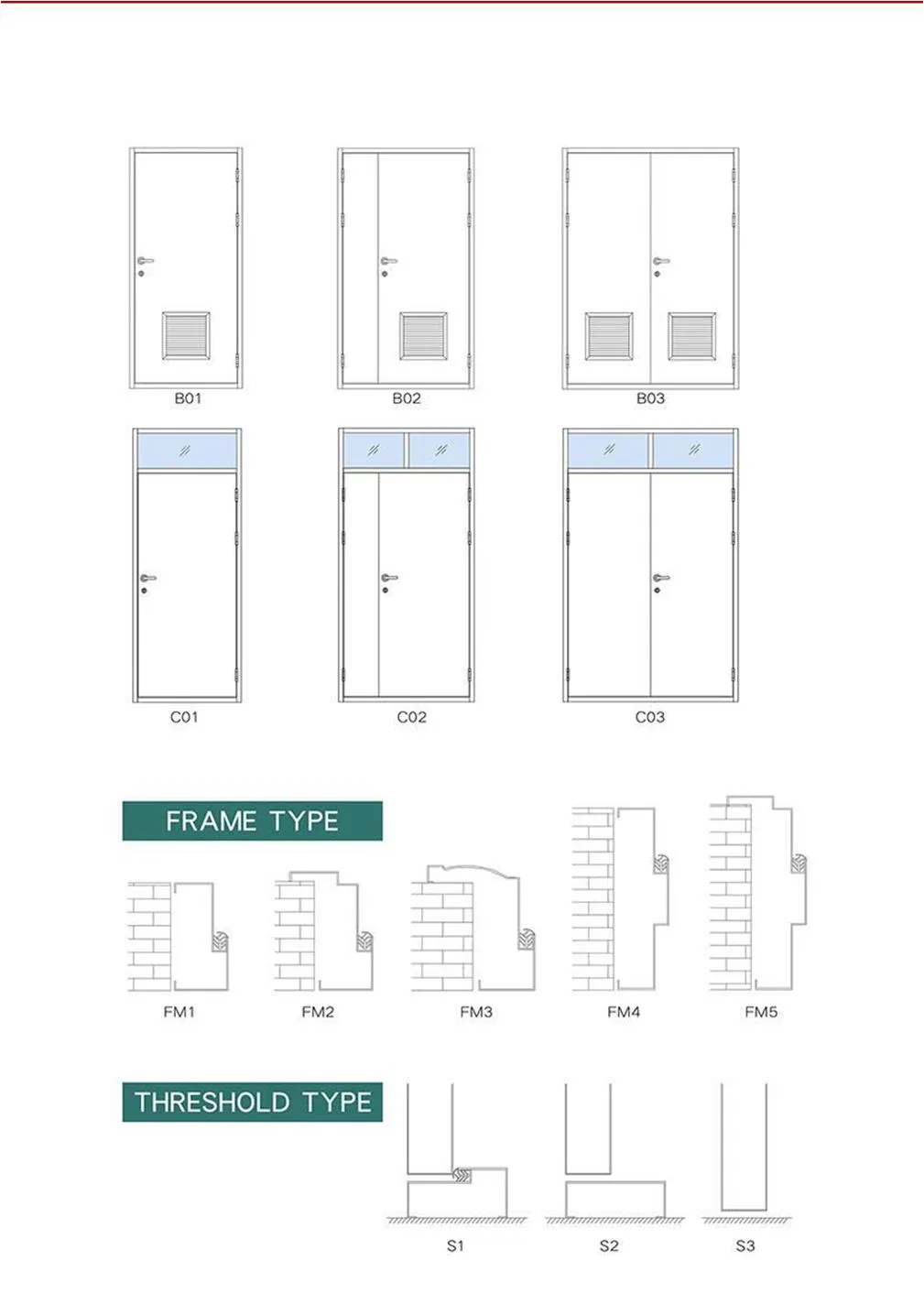

Detailed Door Photo 2

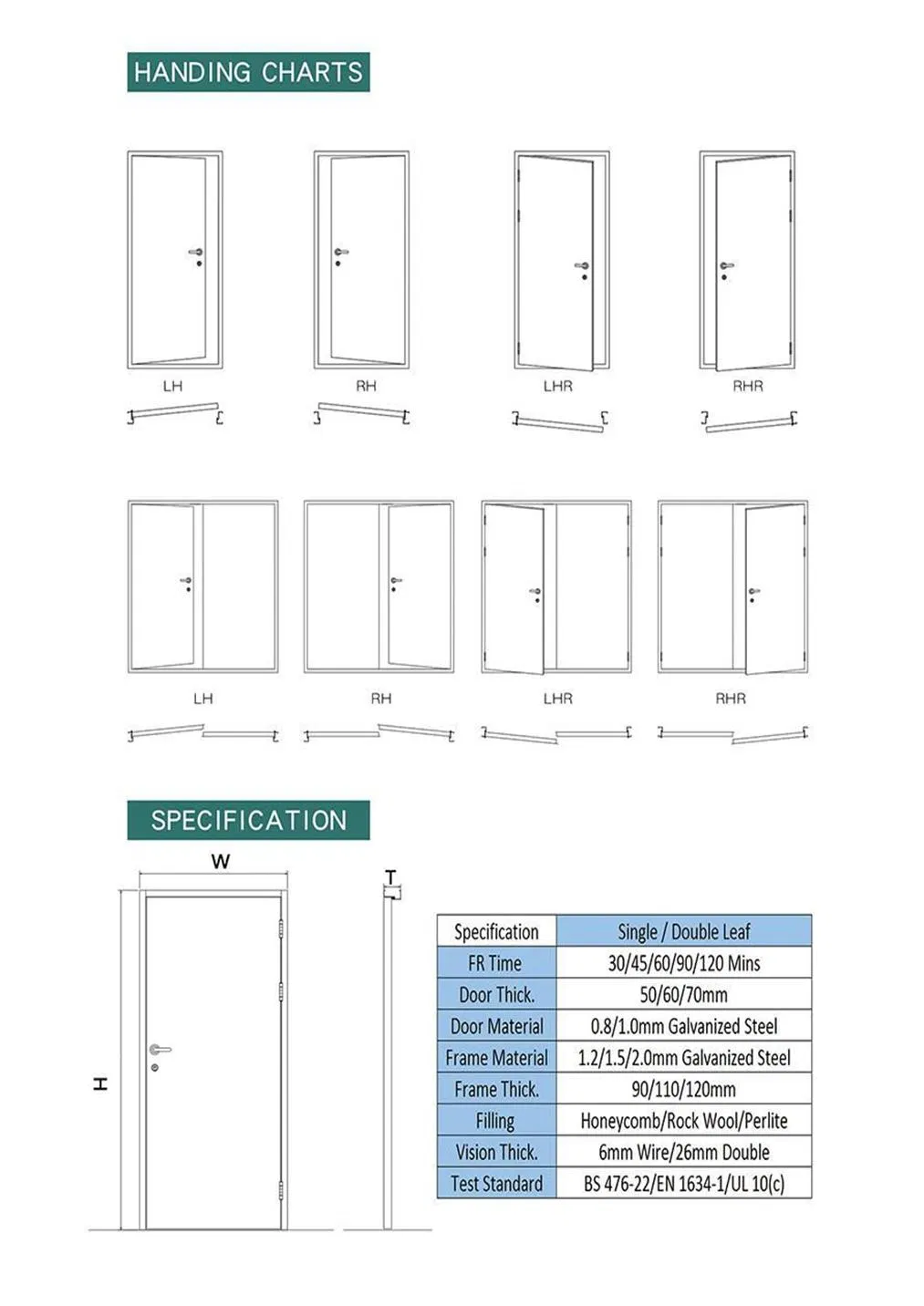

Detailed Door Photo 3

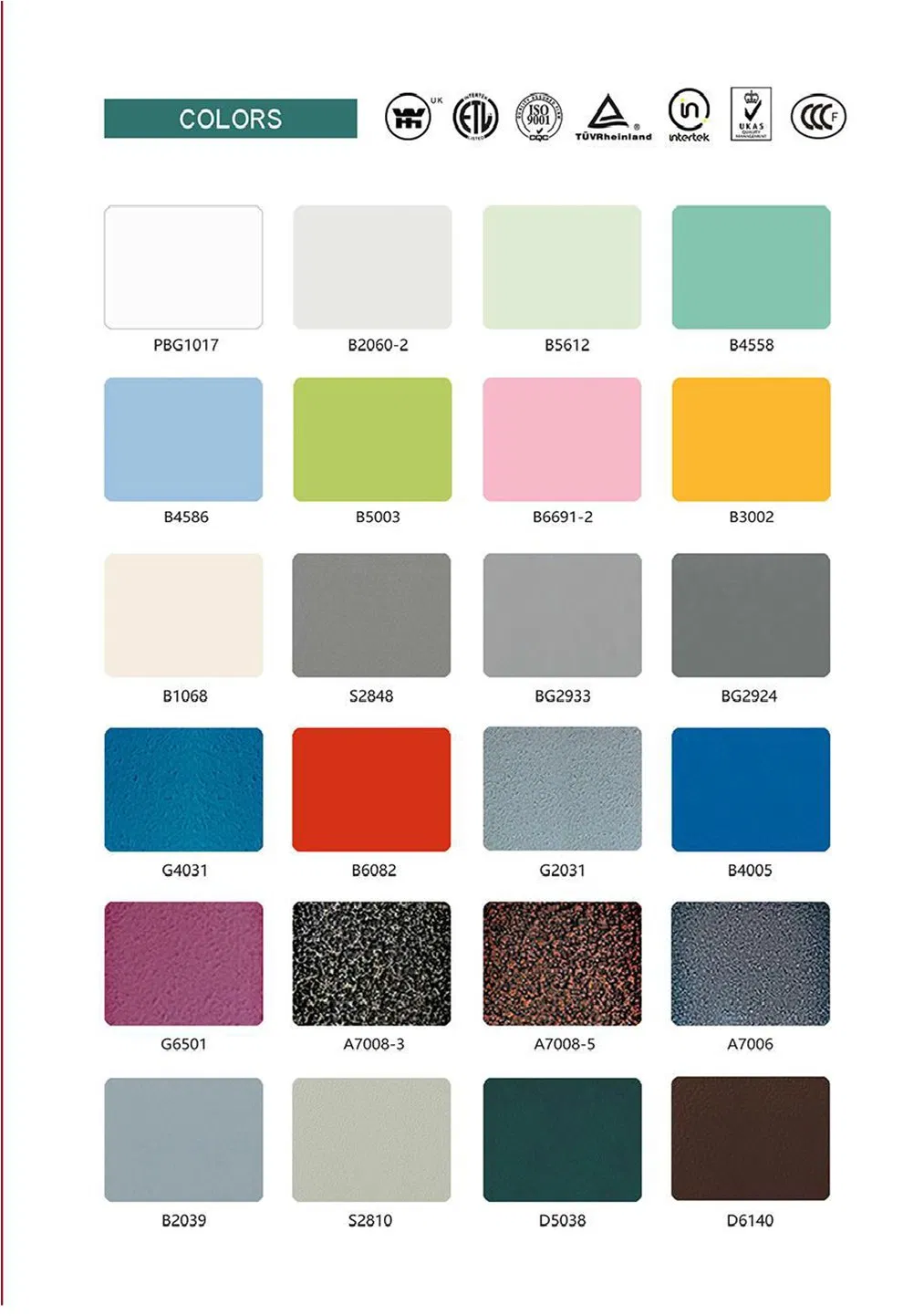

Detailed Door Photo 4

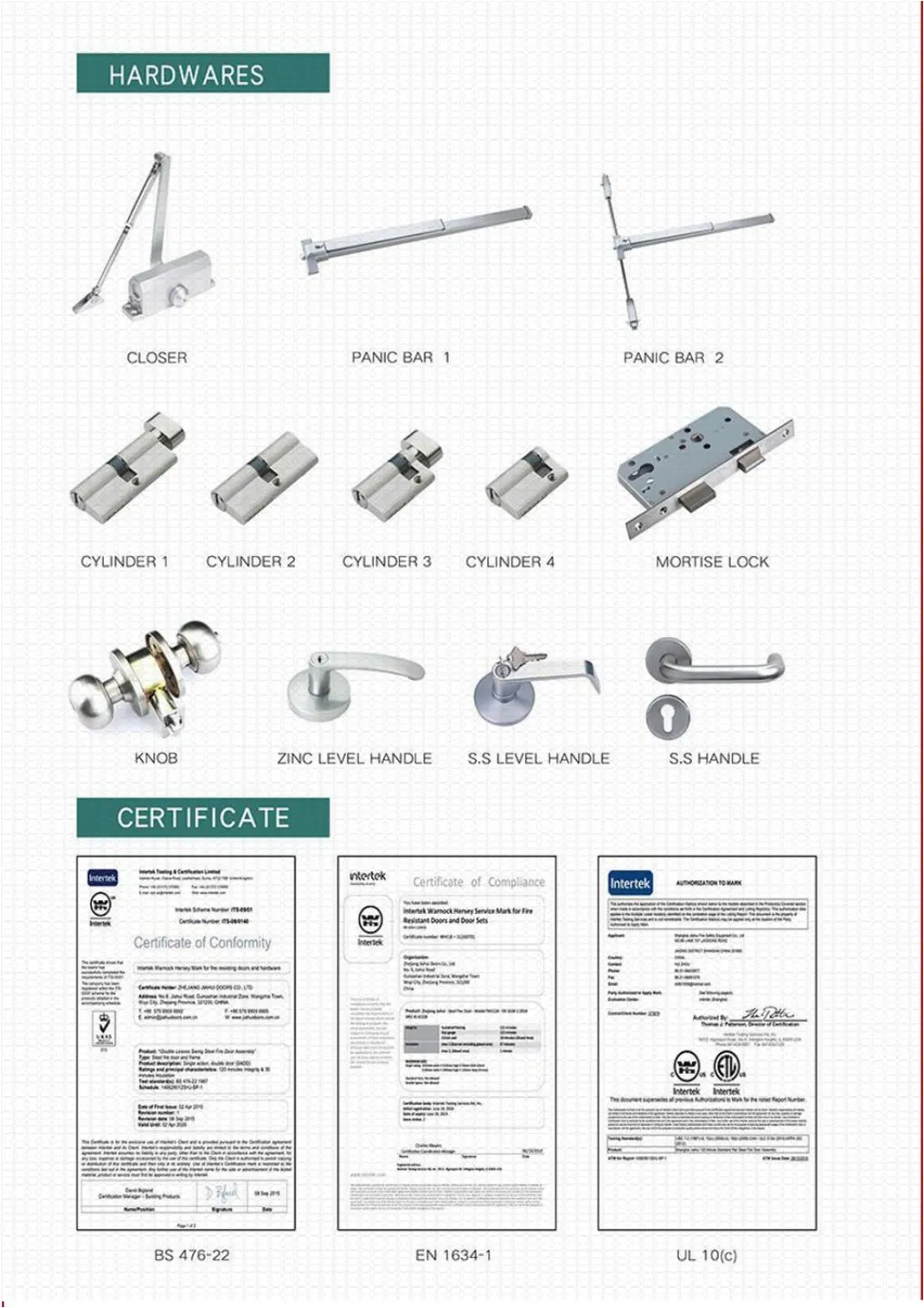

Detailed Door Photo 5

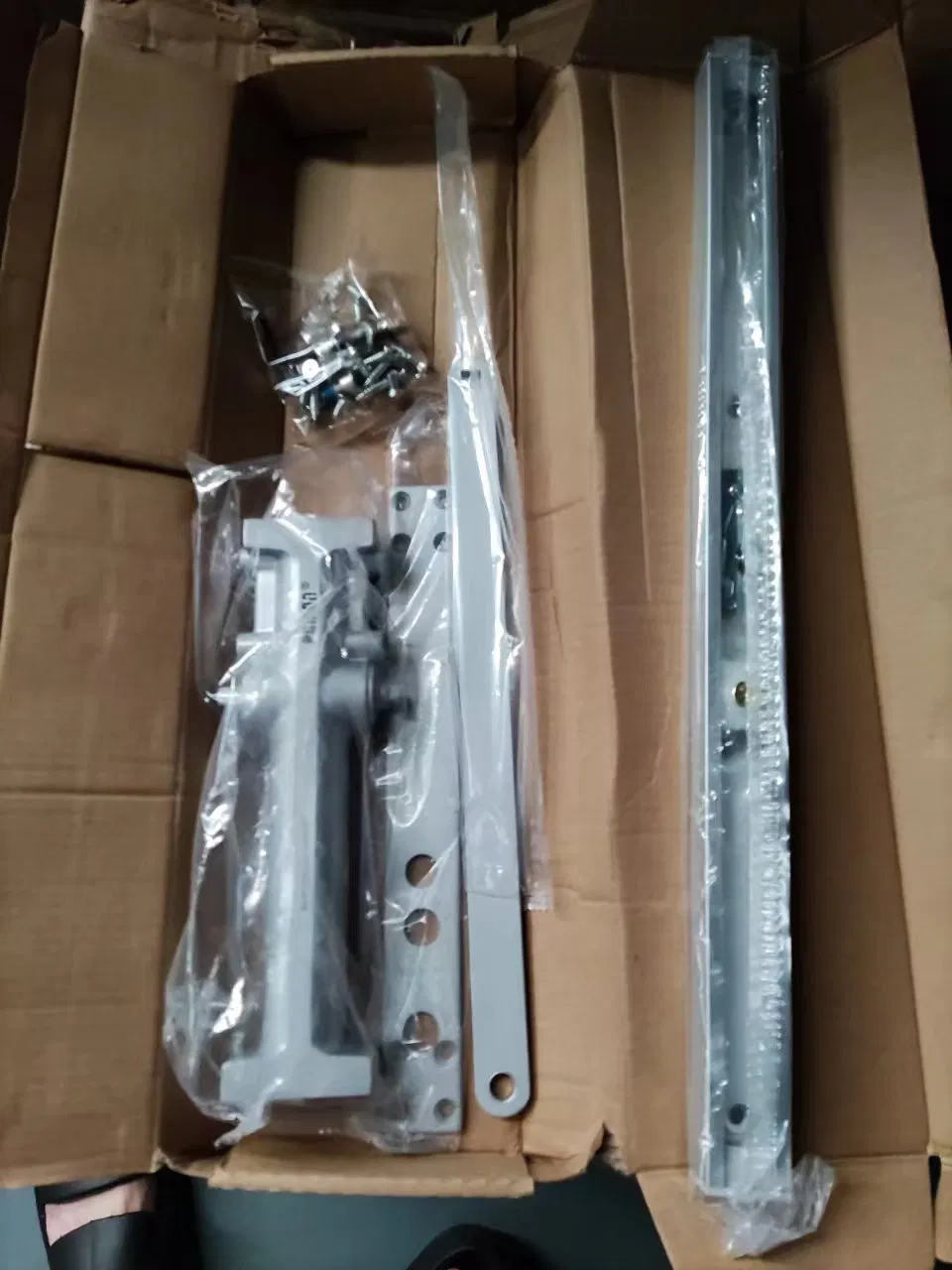

Detailed Door Photo 6

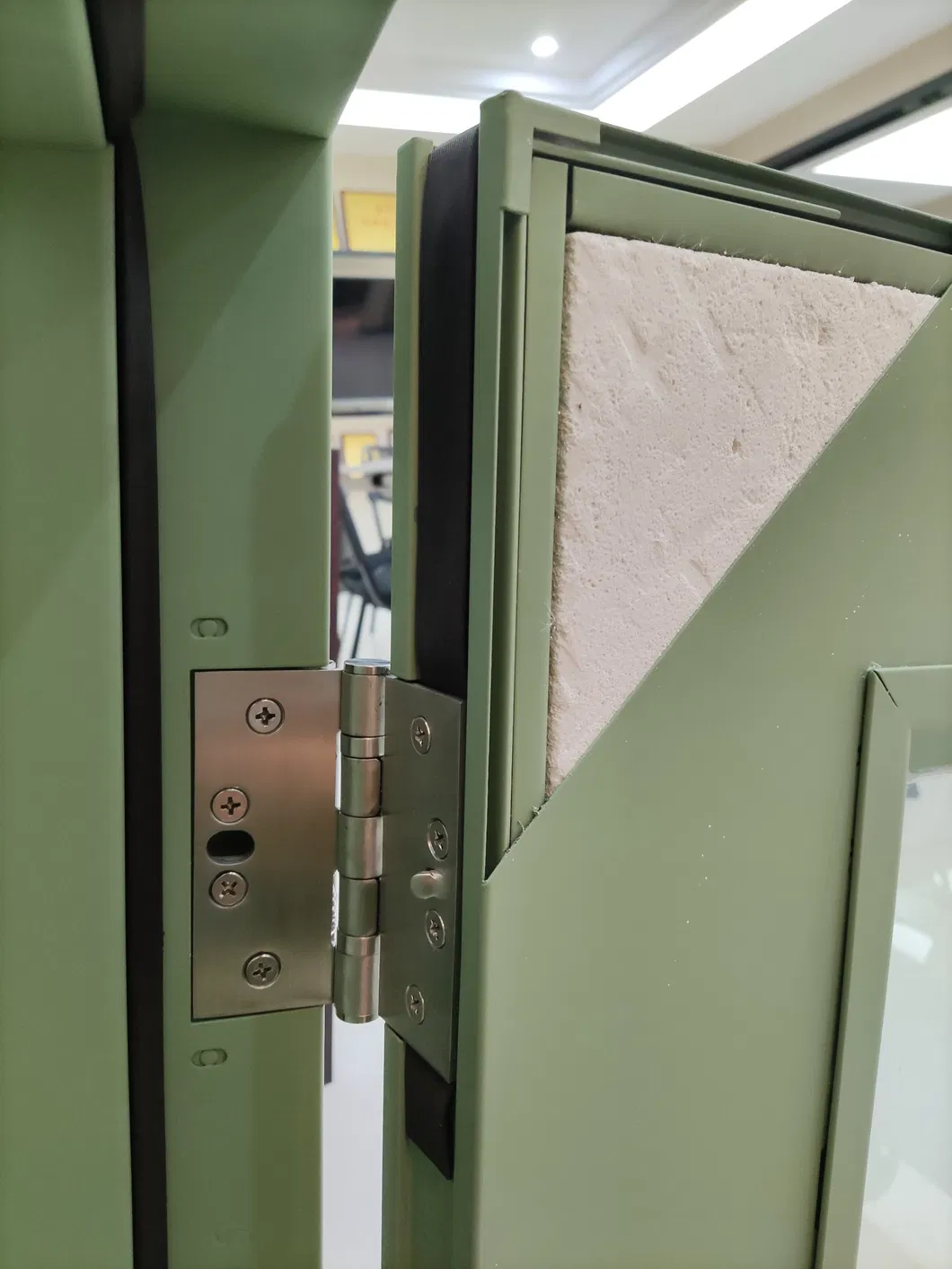

Detailed Door Photo 7

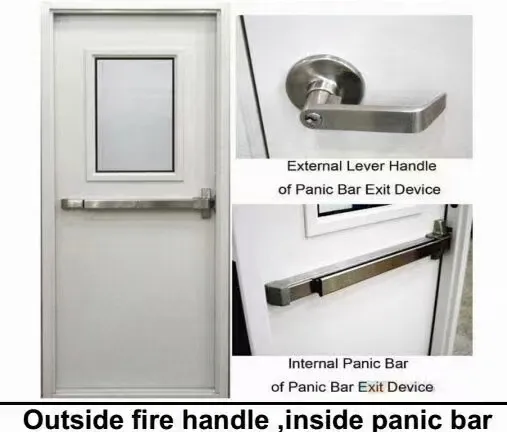

Detailed Door Photo 8

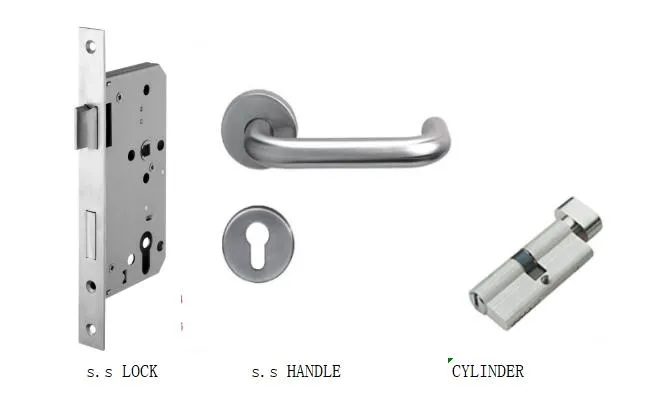

Detailed Door Photo 9

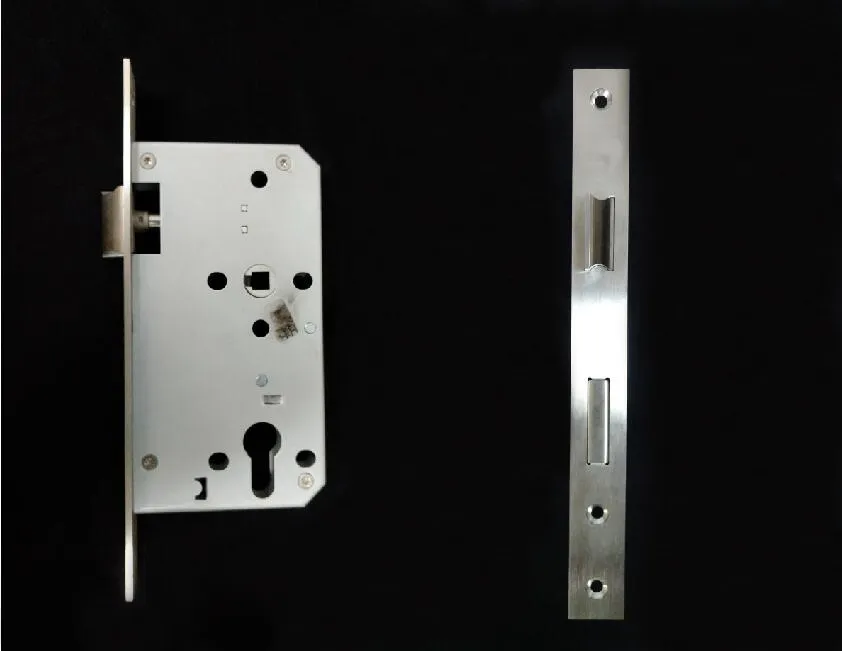

Detailed Door Photo 10

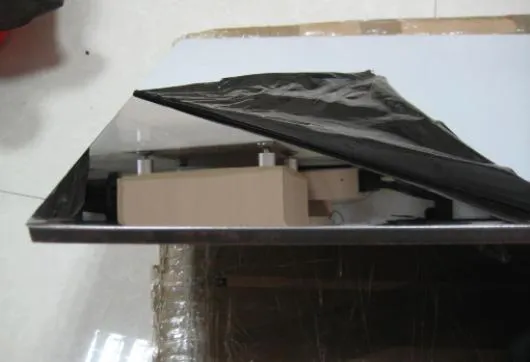

Detailed Door Photo 11

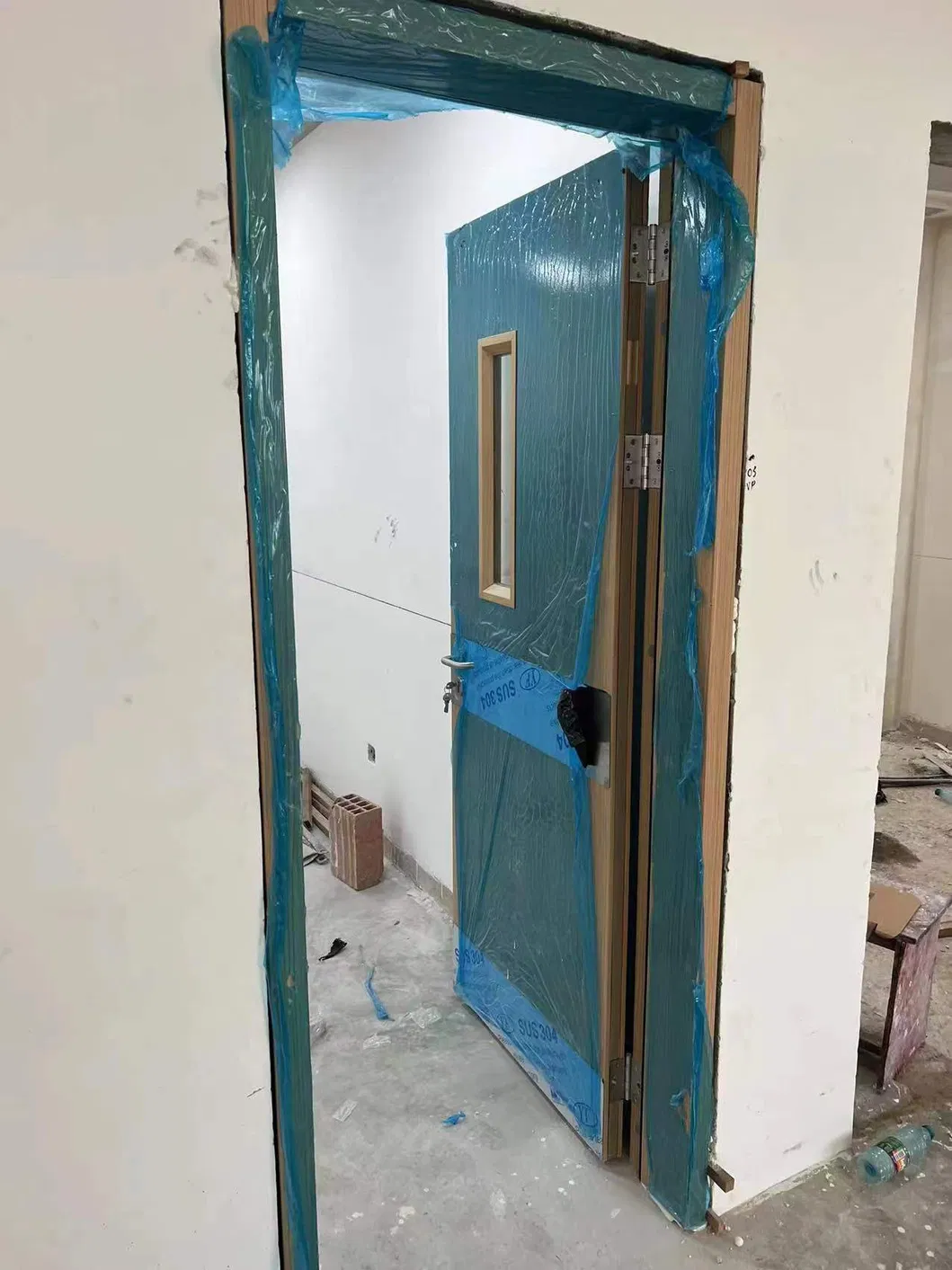

Detailed Door Photo 12

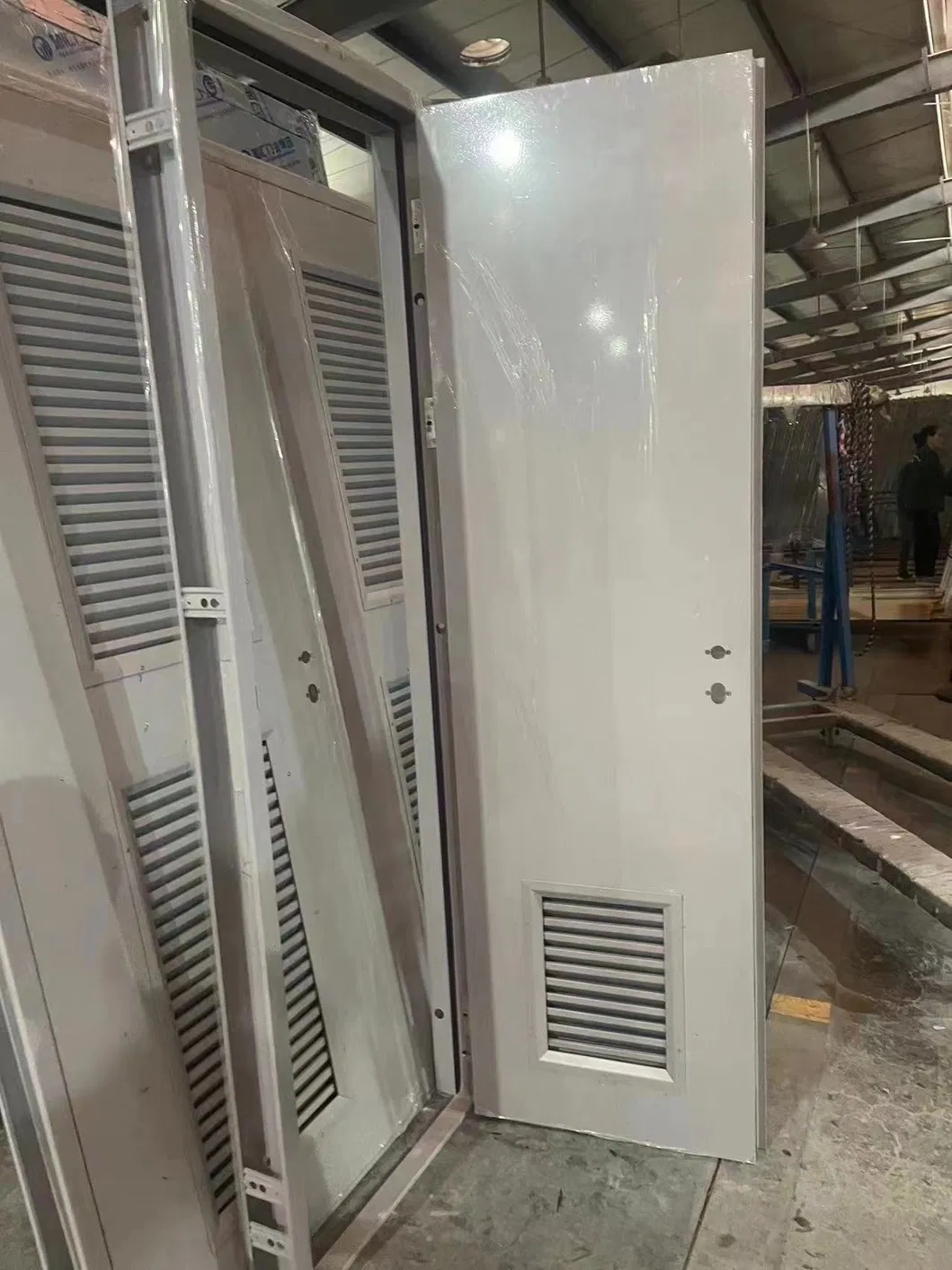

Detailed Door Photo 13

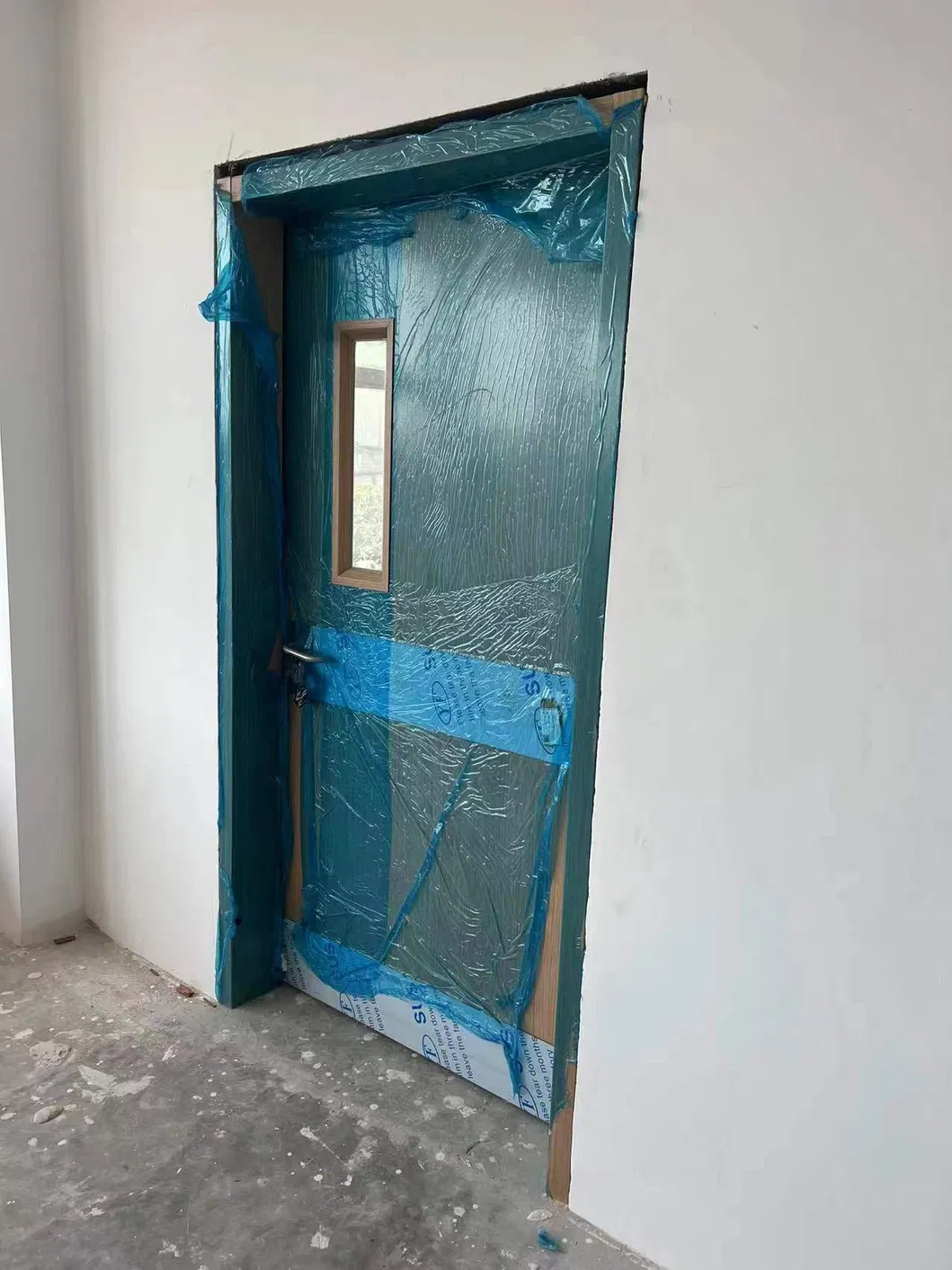

Detailed Door Photo 14
📏
Product Parameters
Door MaterialGalvanized Steel
SizeCustomized per drawing
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or 4 1/4" inches, or customized
Door leaf sheet22 Ga.-18 Ga.(1.0/1.2 mm) galvanized steel
Door frame sheet16 Ga.-14 Ga.(1.5mm-2.0mm) galvanized steel
AccessoriesLock, handle, hinges, door closer, panic bar and others
Vision PanelWith or without as requested
Surface treatmentPowder coated or heat transfer printing with wood grain
Inner fillingPerlite or Insulated rockwool
CertificatesUBC 7-2; UL 10C; UL 10B; CAN/ULC S104; NFPA 252
📦
Packaging & Shipping

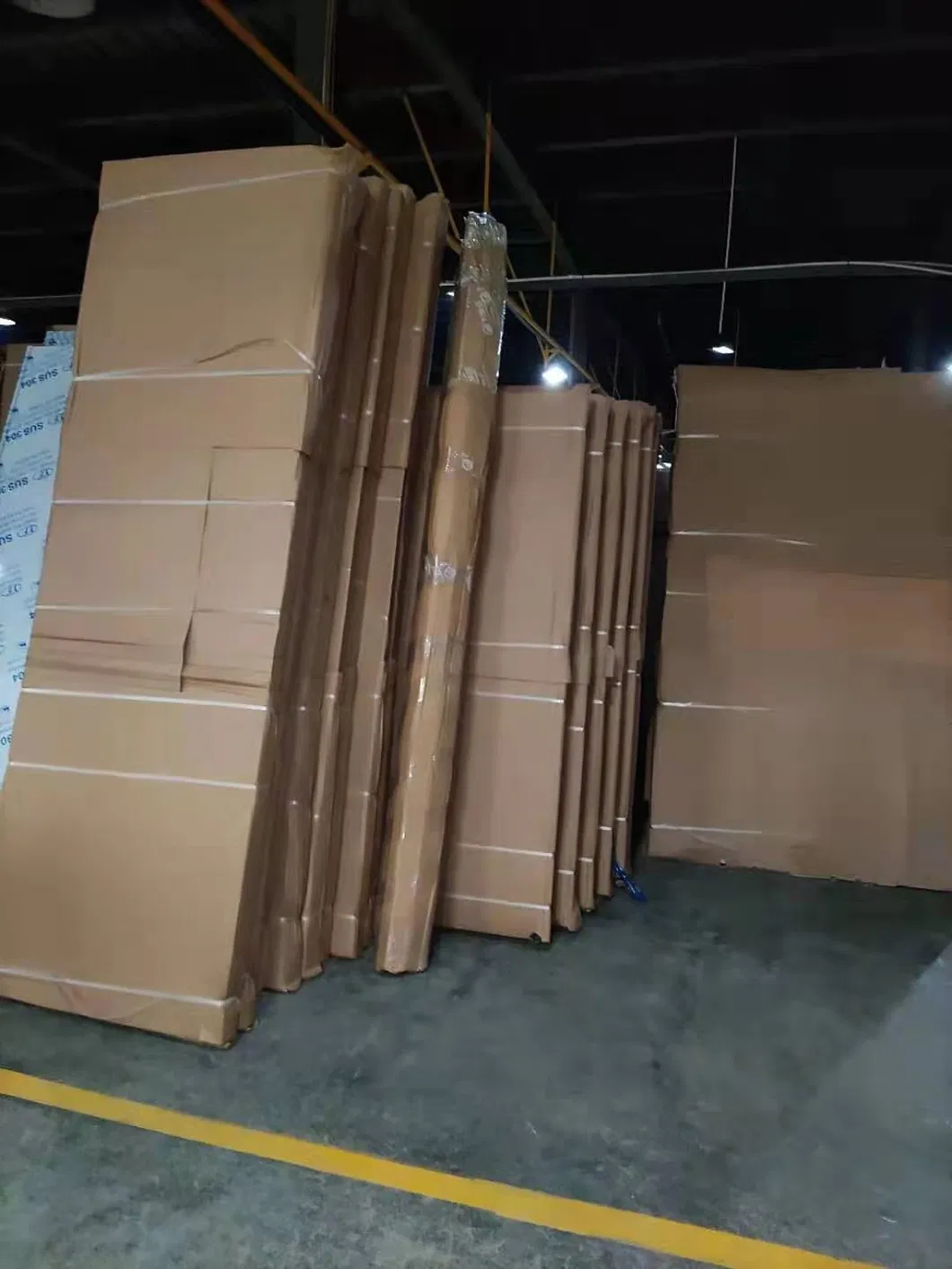

Packaging Photo 1
Packaging Photo 2
Shipping Photo 1
Shipping Photo 2
🏢
About Us
Factory Overview

We are a leading supplier of various doors, including steel doors, wooden doors, hospital doors, and wrought iron doors. Our experienced staff has over 10 years of experience in exporting doors to customers around the world. We take pride in using the highest quality materials and advanced manufacturing techniques.

Before production begins, we provide our customers with CAD drawings to ensure every detail is exactly to specifications. Our fire-rated steel doors are UL listed, meaning they have been tested and approved to meet strict safety standards.

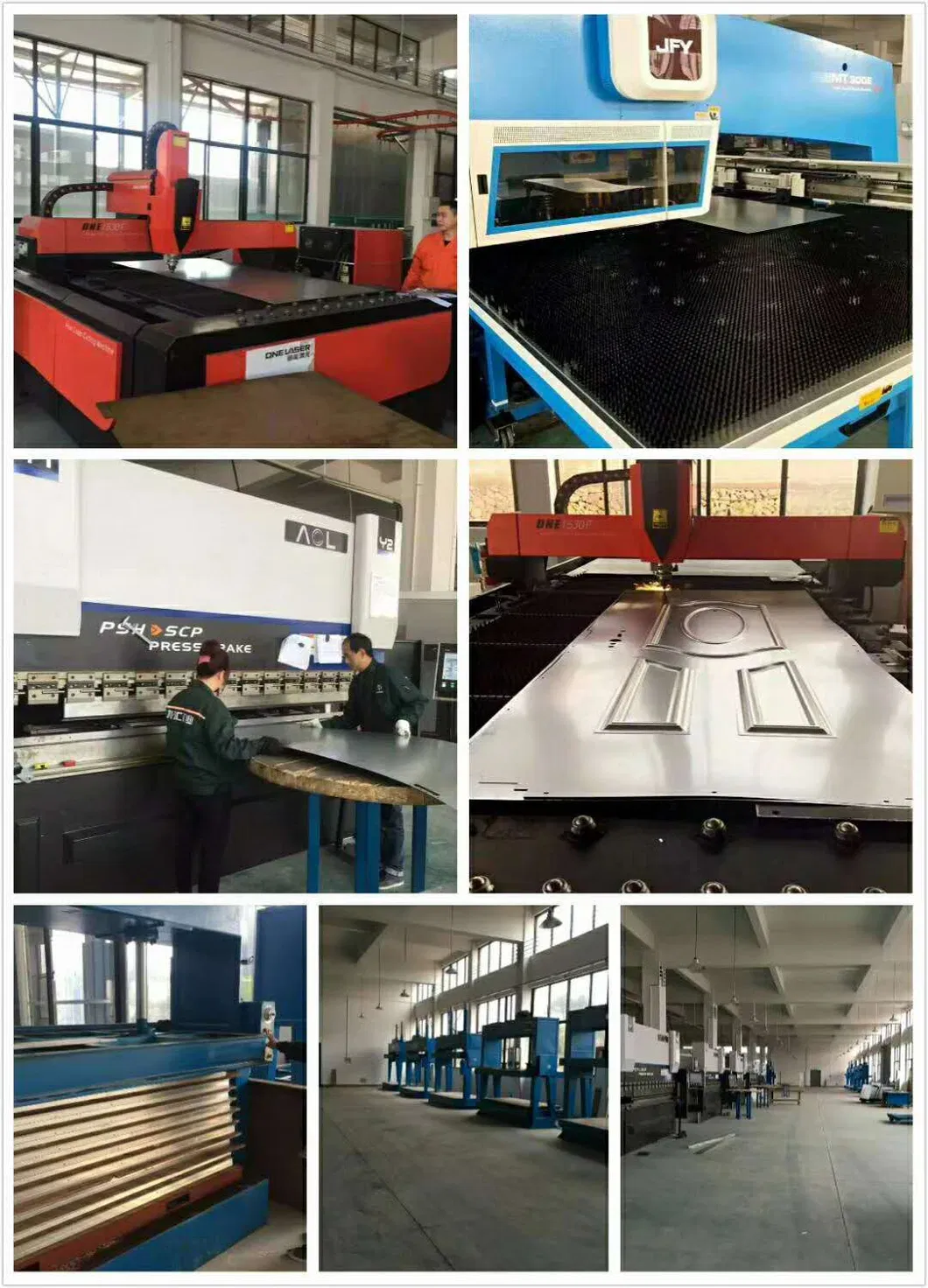

Manufacturing Process
Frequently Asked Questions
What is the fire rating of these steel doors?
Our fire-rated steel doors are UL Listed and can provide fire resistance ranging from 20 minutes up to 120 minutes (2 hours).
Are the doors customizable?
Yes, we provide fully customized sizes and designs based on your project's CAD drawings before manufacturing starts.
What materials are used for insulation?
The inner filling typically consists of fire-resistant perlite or insulated rockwool to ensure maximum safety.
Do the doors come with hardware?
We provide complete hardware solutions including locks, handles, hinges, door closers, and panic bars as requested.
What surface finishes are available?
You can choose from powder coated finishes or heat transfer printing which offers rich wood grain aesthetics.
Are these doors suitable for commercial use?
Yes, they are specifically designed for commercial positions requiring high security and fire safety ratings.
