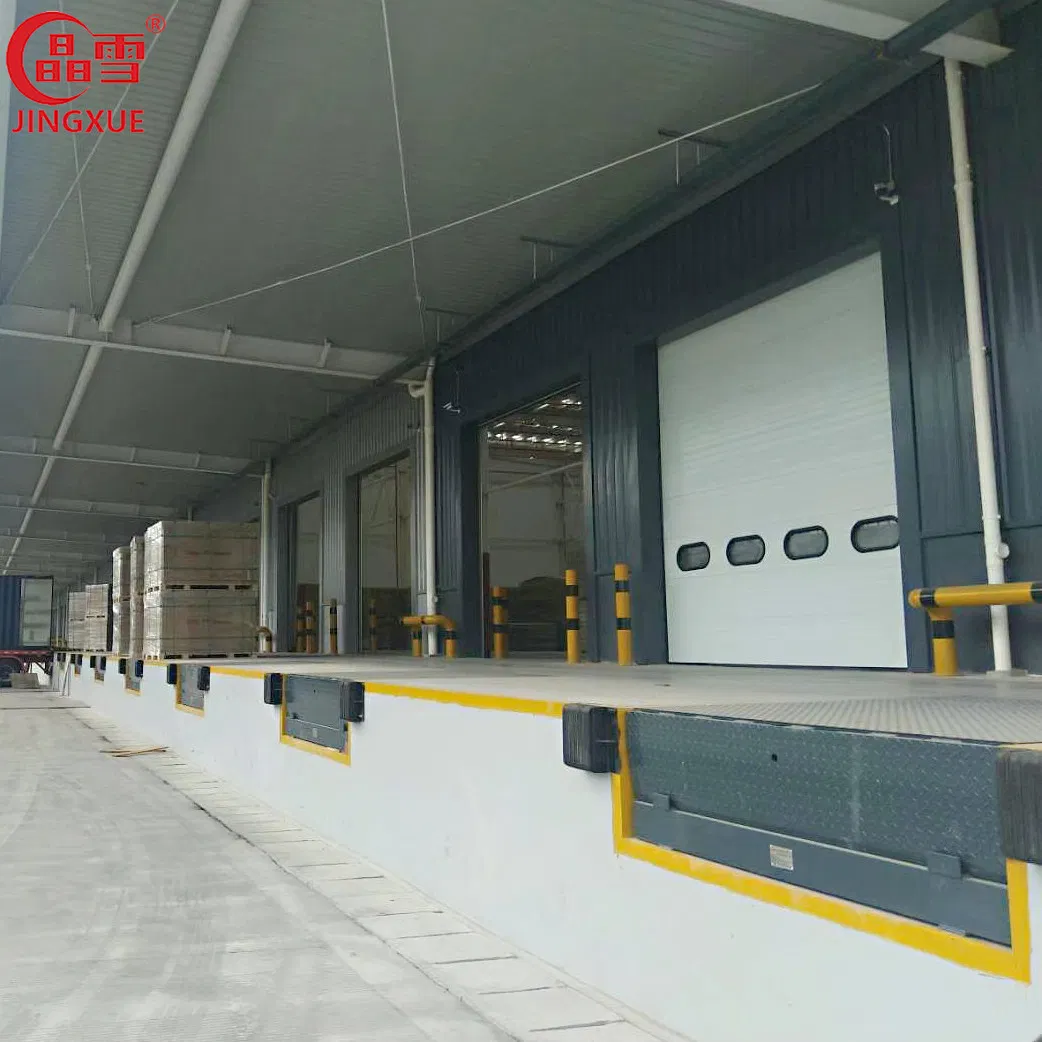

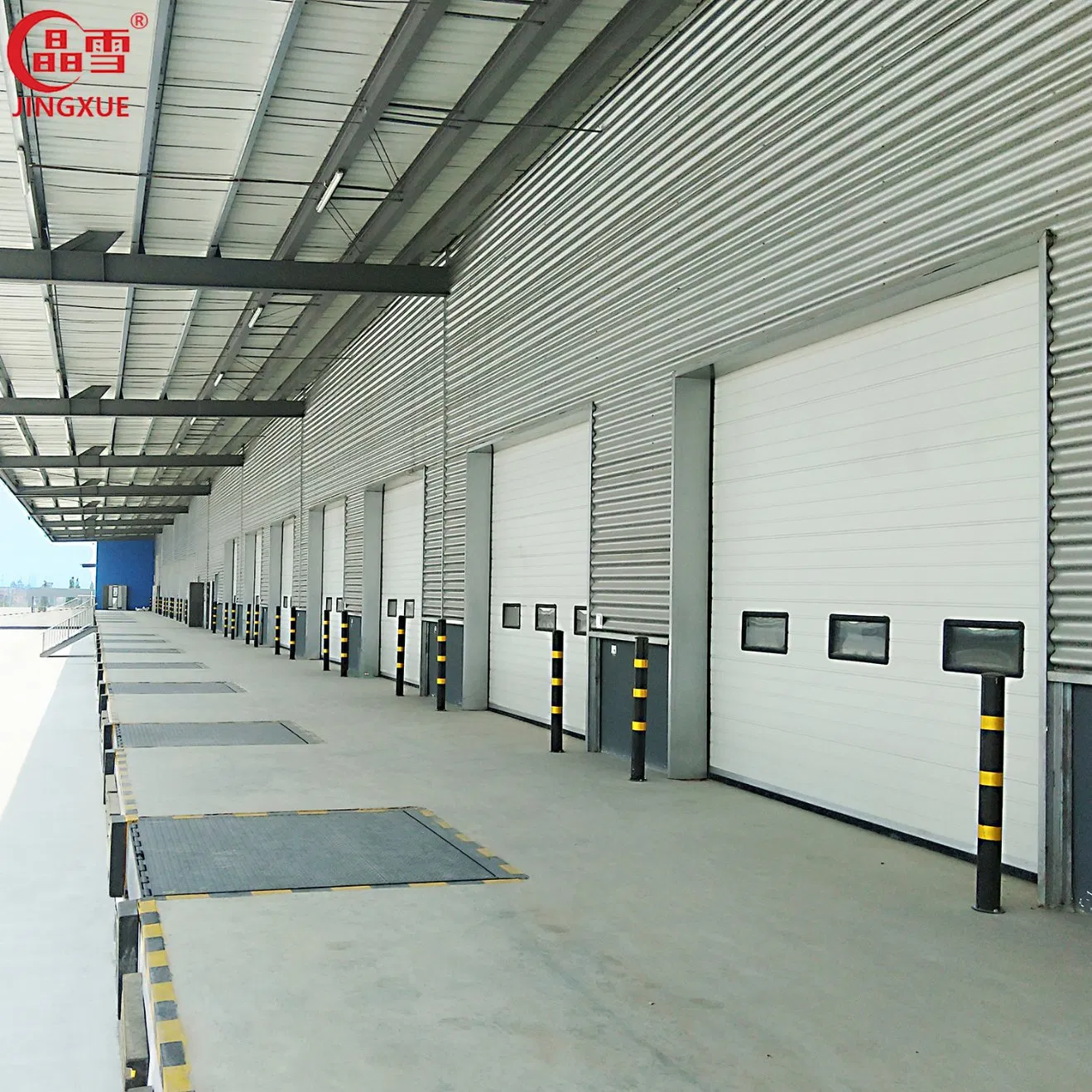

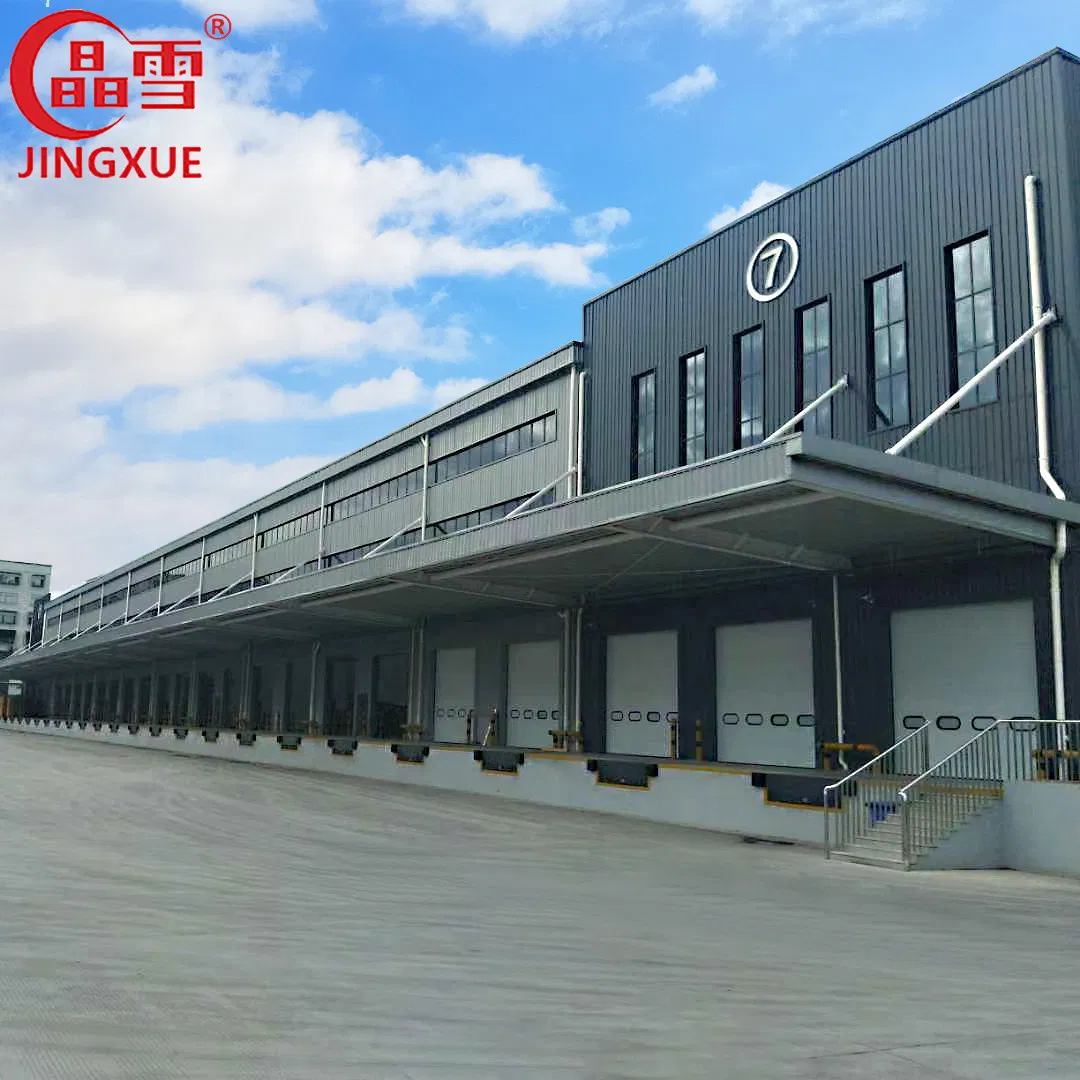

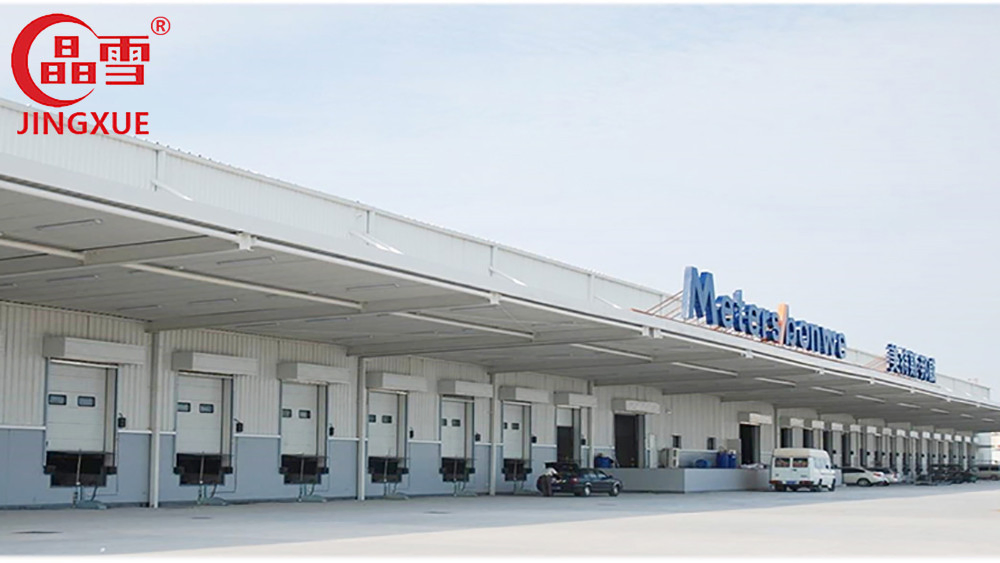

As a leading provider of energy-saving thermal insulation materials and industrial door systems, we offer a comprehensive range of solutions for industrial building maintenance and cold storage environments. Our systems include high-performance sandwich panels, industrial doors, and logistics loading equipment designed to optimize intelligent warehousing.
Equipped with internationally advanced fully automatic continuous production lines, we maintain an annual capacity of 2 million square meters of insulation panels and over 20,000 sets of industrial and cold storage doors. Our products are widely used in logistics, manufacturing, food, and pharmaceutical industries across Europe, North America, and Southeast Asia.

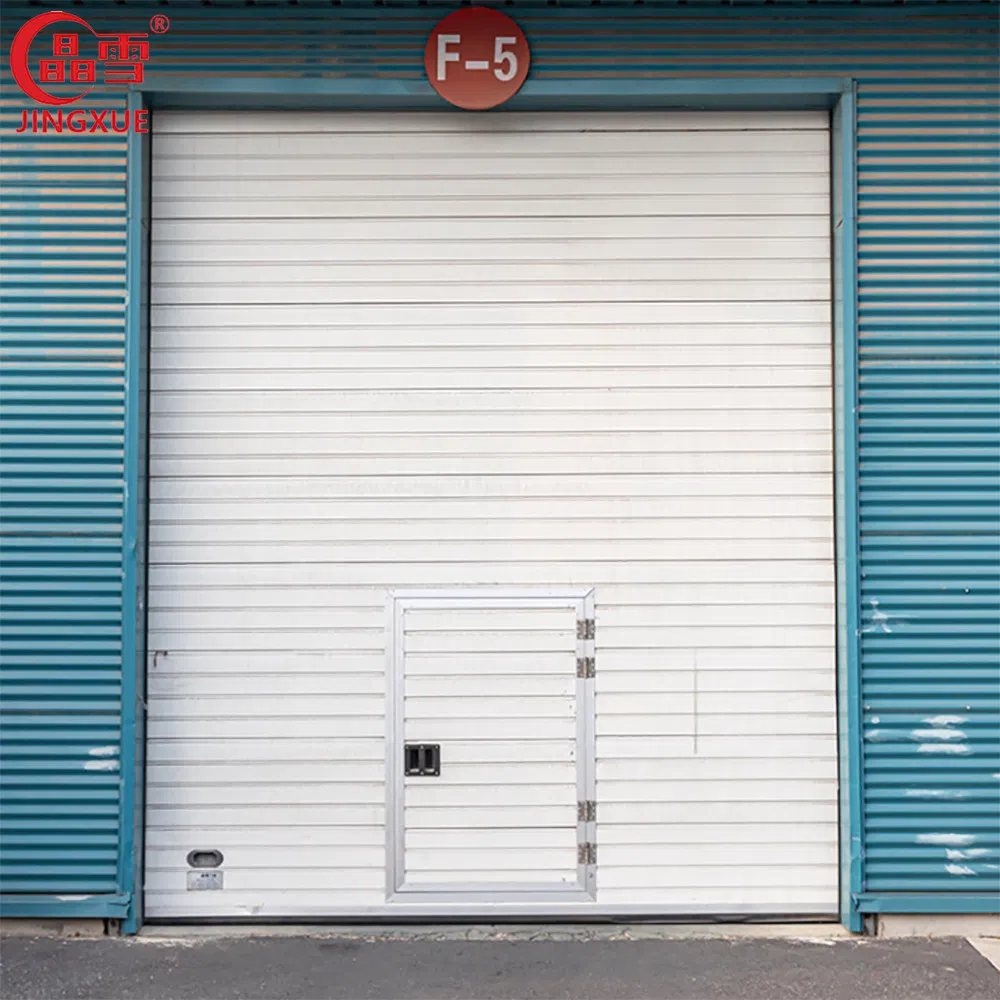

The door panel is manufactured using advanced continuous foaming technology, ensuring a fluorine-free polyurethane core with high-density adhesion (≥45kg/m³). This results in exceptional thermal insulation (K≤0.5W/m2ºC) suitable for temperatures ranging from -20ºC to 90ºC.
| Feature | Standard Specification |
|---|---|
| Door Panel Thickness | 42mm Pinch-resistant design |
| Steel Thickness | 0.5mm Zinc galvanized Bao-steel |
| Insulation Density | 45kg/m³ Polyurethane |
| Wind Load | ≥700N/m² |
| Track System | 2mm hot-dipped galvanized steel, 380mm radius |
| Vision Windows | W650*H340mm (Customizable quantity) |
| Lifting Method | Vertical, Standard, or High Lifting |
| Hardware | SUS304 hinges, Nylon 66 rollers, Aviation-grade rope |
Packing: Sectional doors are secured in seaworthy wooden cases. Door panels, motors, and control boxes are packed separately to prevent damage during transit.
Shipping: We support EXW, FOB, C&F, CIF, and DDP terms. Standard lead time is typically 2-4 weeks depending on order volume and customization requirements.
