| Model NO. | Industrial Lifting Door |
| Opening Style | Rolling / Lifting |
| Opening Type | Button Control / Pull-Cord Switch Control |
| Power / Torque | 350W / 60n |
| Door Panel Material | Double-layer galvanized steel with Polyurethane foam |
| Foam Density | 48kg/M3 +/-2kg/M3 |
| Lifting Speed | 0.25-0.3m/s |
| Service Life | 10 Years |

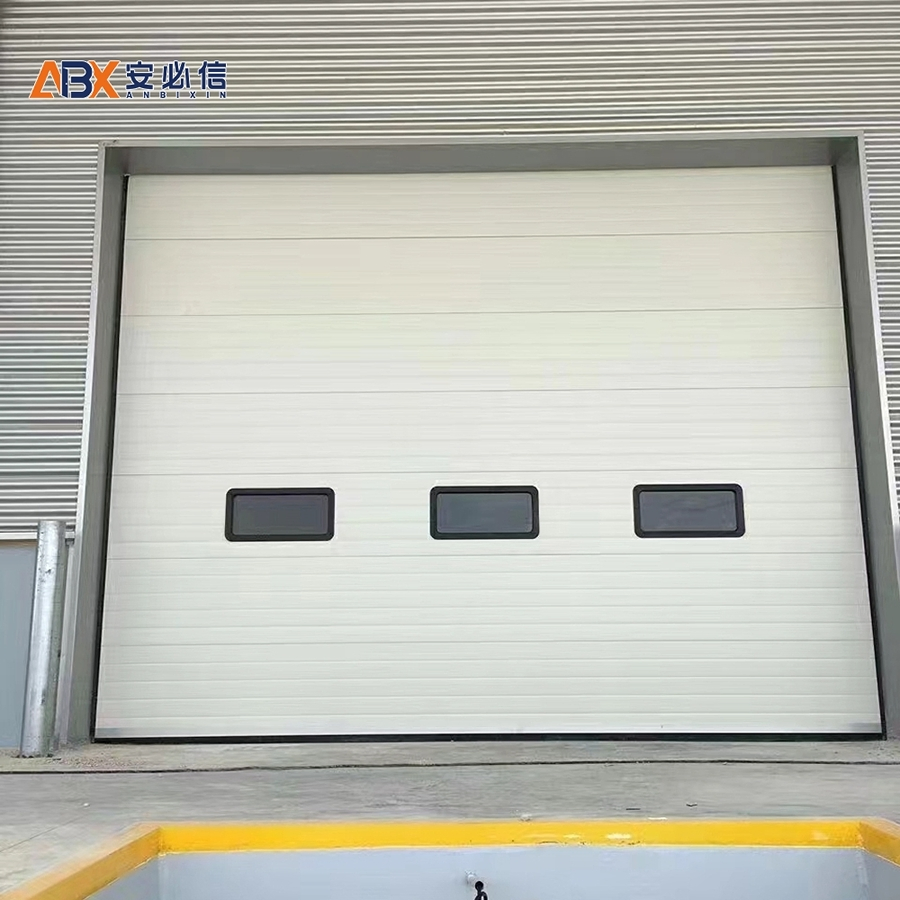

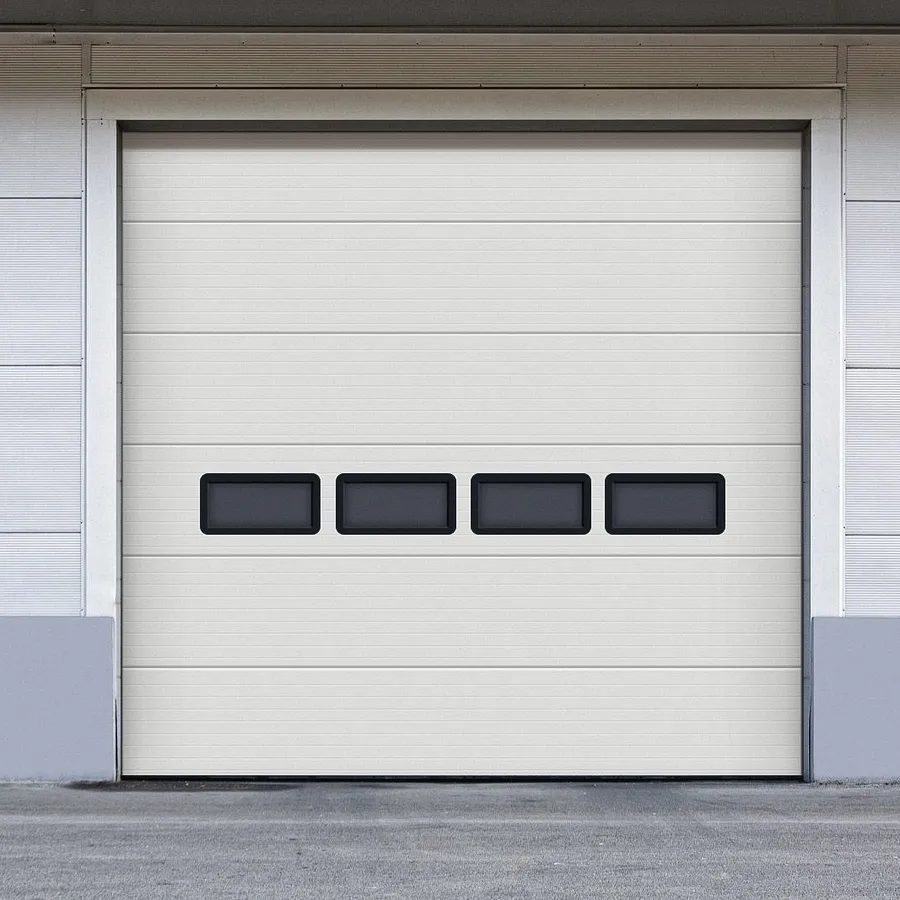

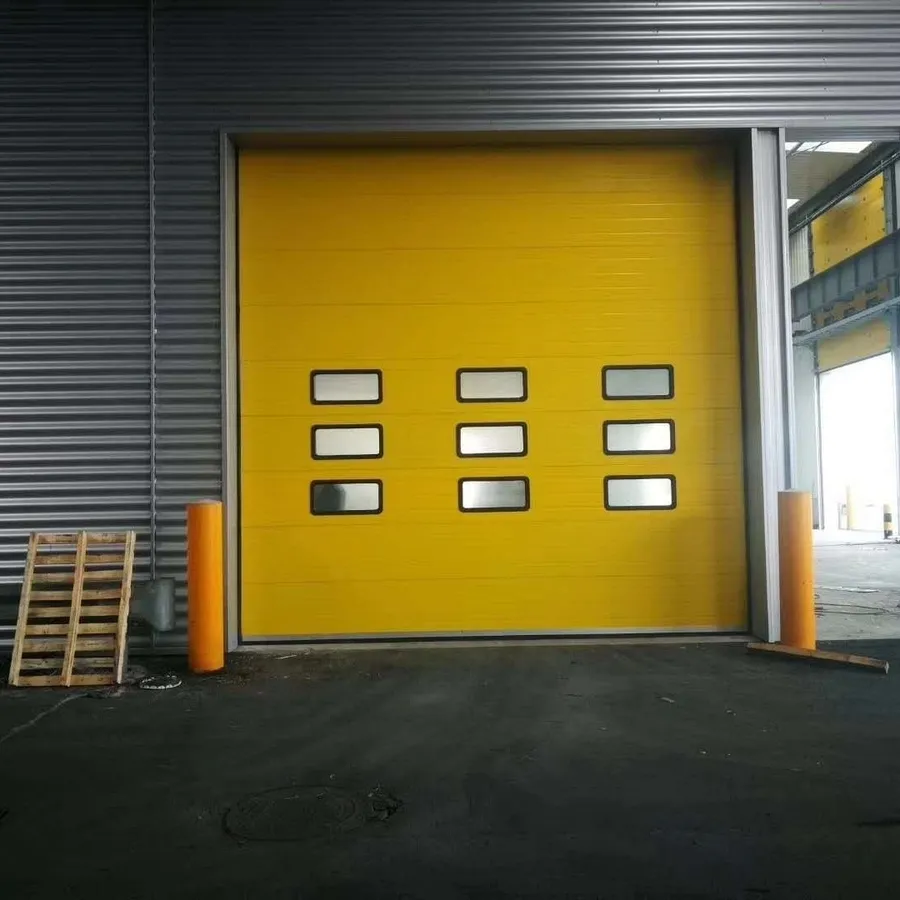

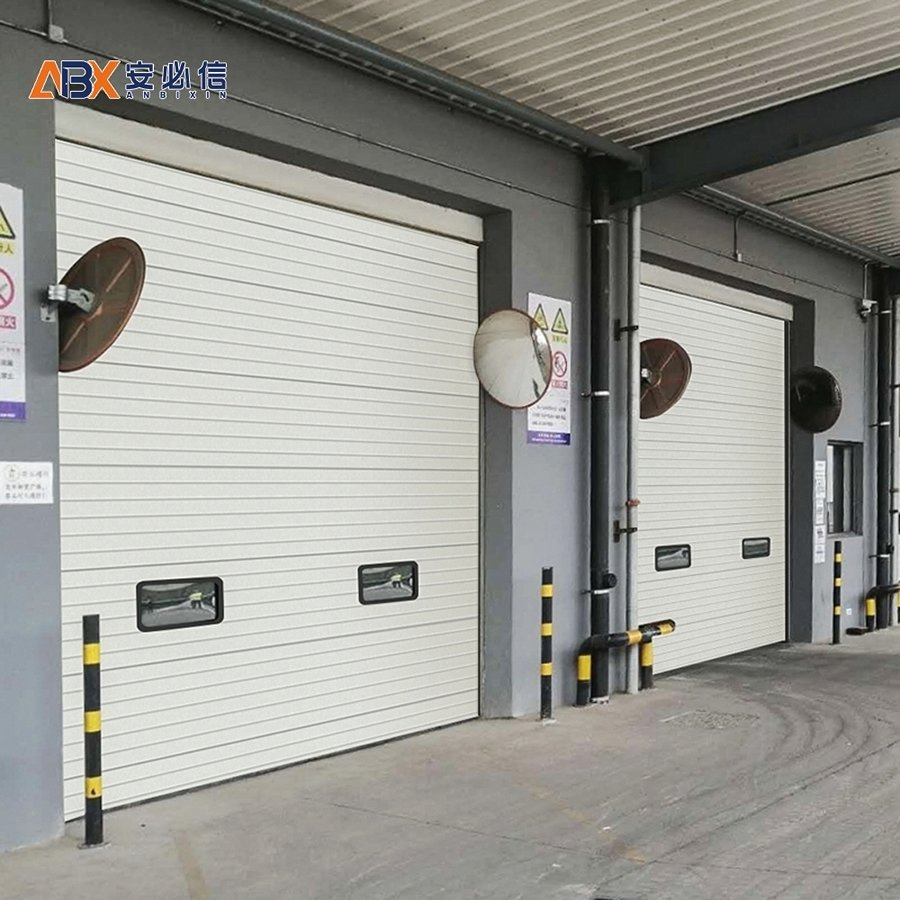

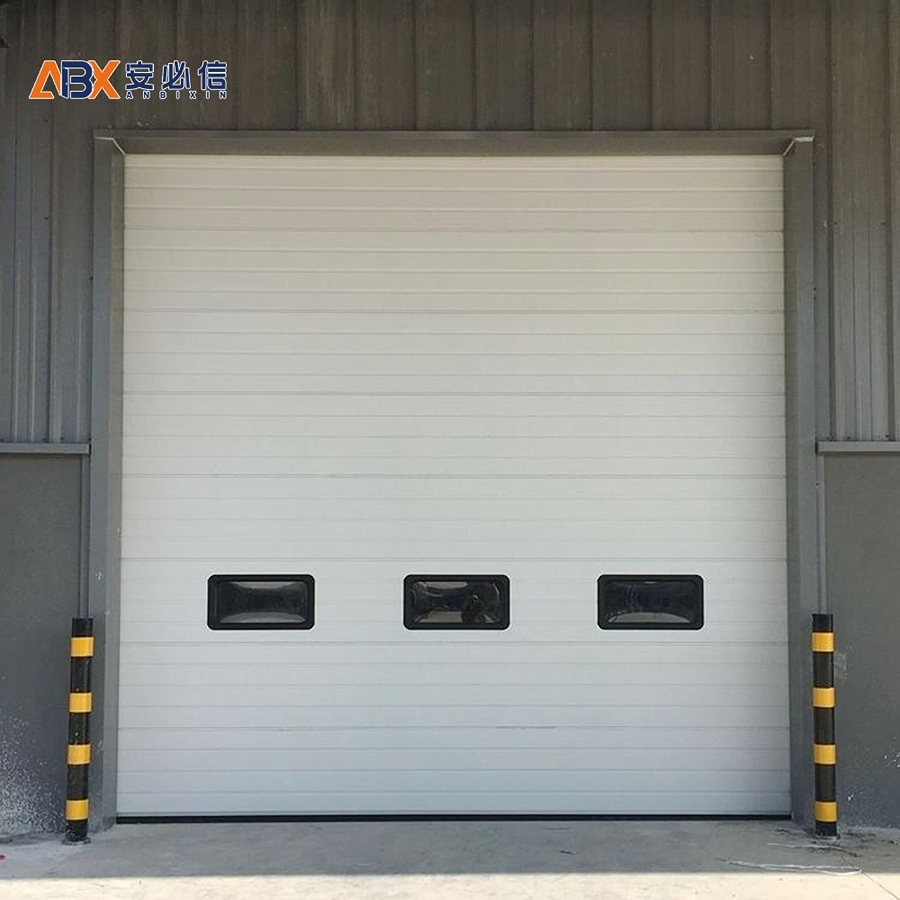

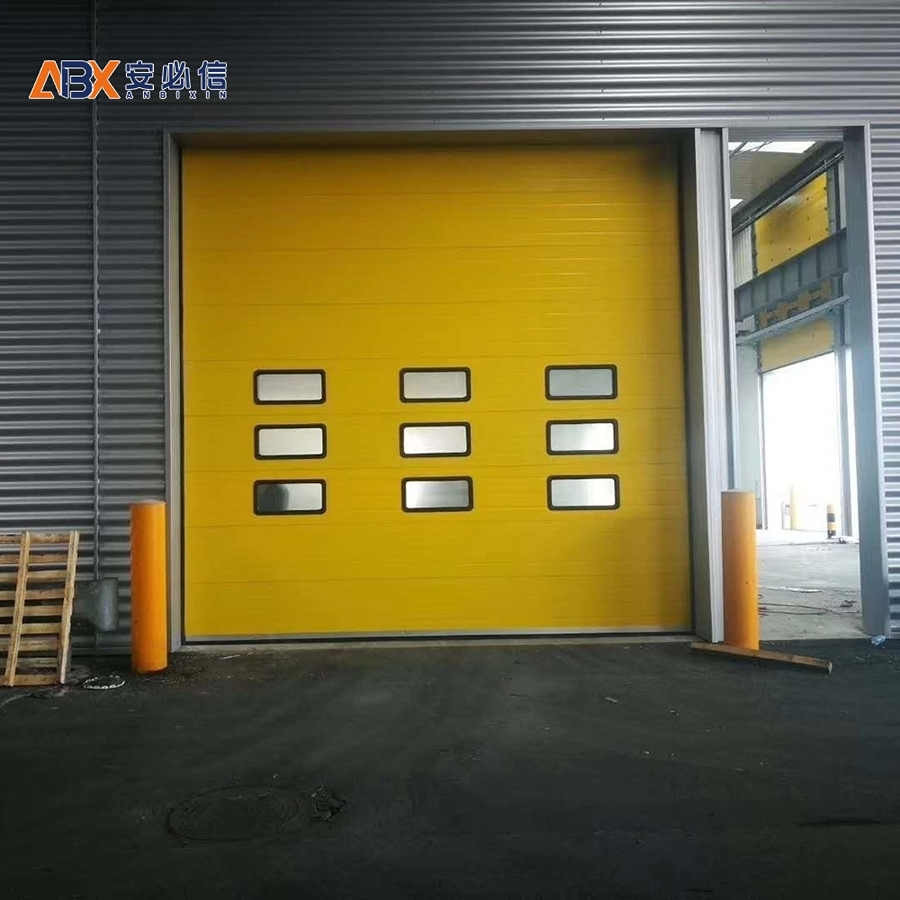

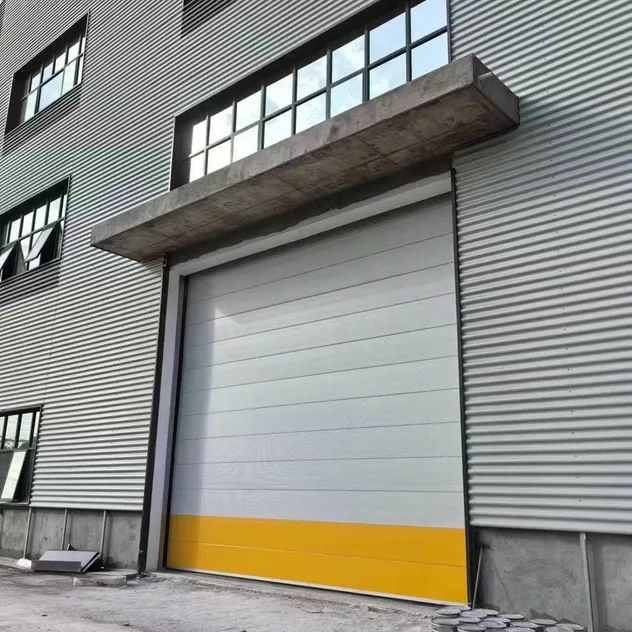

INDUSTRIAL LIFTING DOOR
Industrial lifting door is a professional industrial exterior door designed to meet requirements for insulation, sealing, high-frequency switching, and safe use. It is widely adopted by industrial and logistics projects.
The lifting methods include:

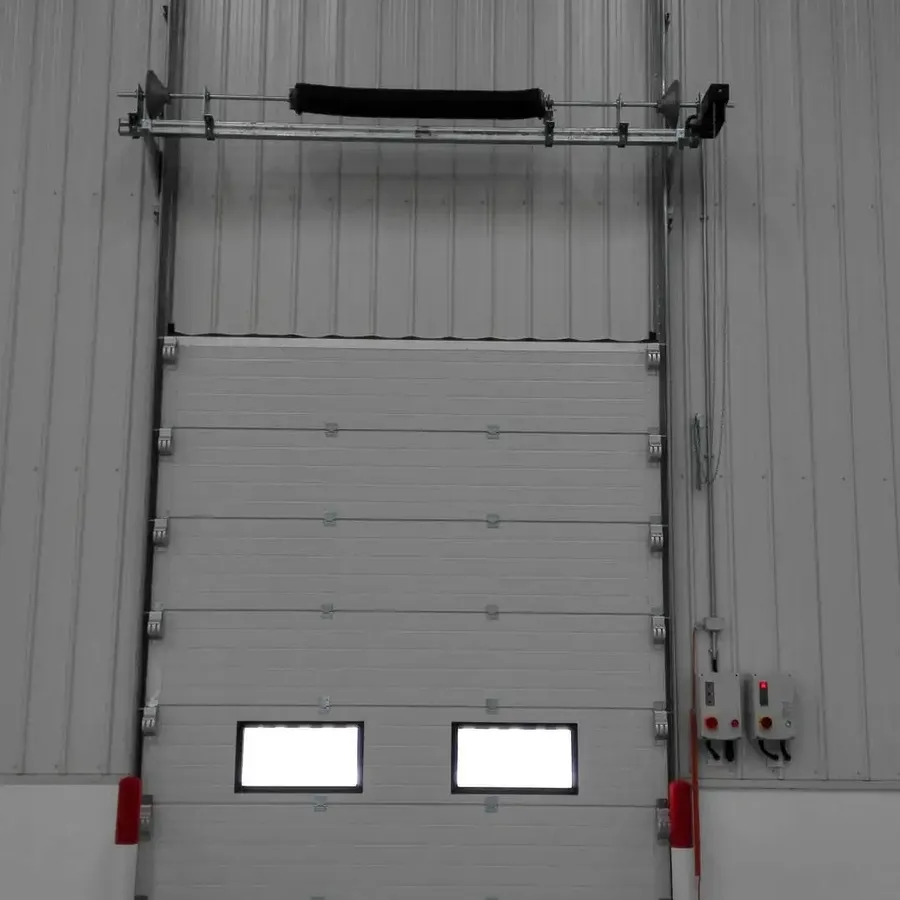

Components include door bodies, balance systems, drive and control systems, safety devices, and sealing tracks.

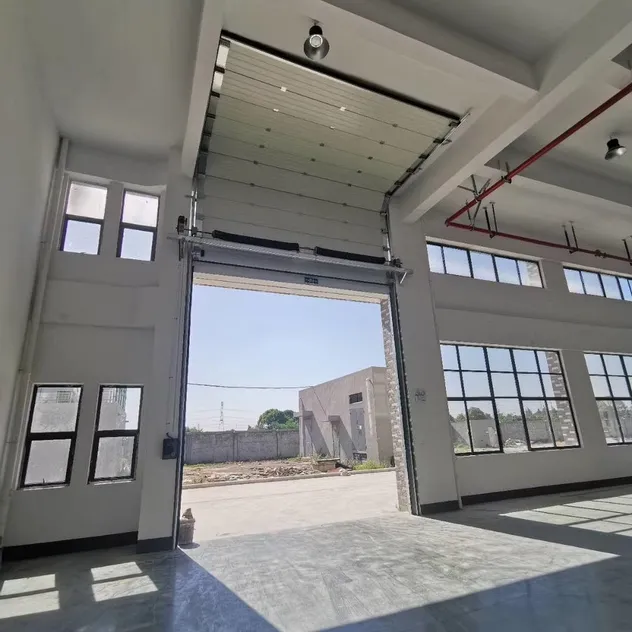

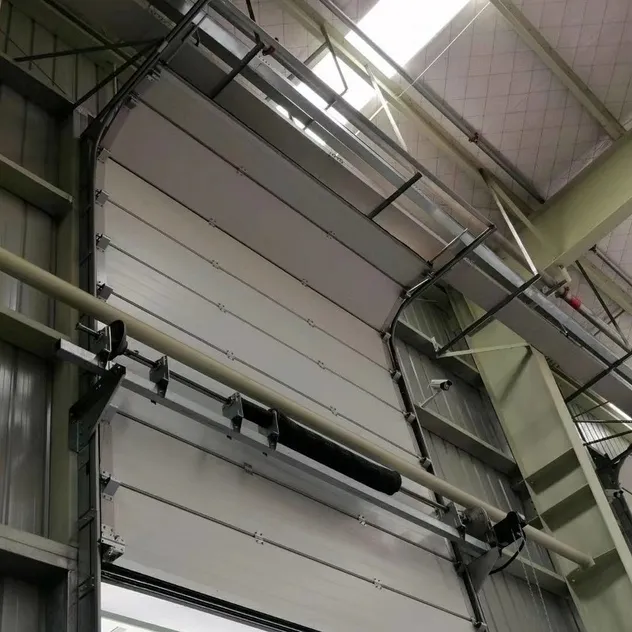

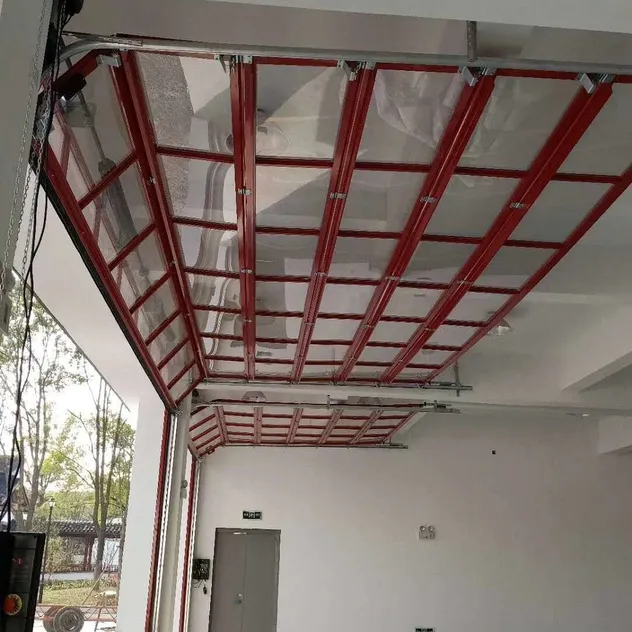

● Applicability: Opens vertically upwards, hanging flat on the inner side of the wall without occupying indoor space.

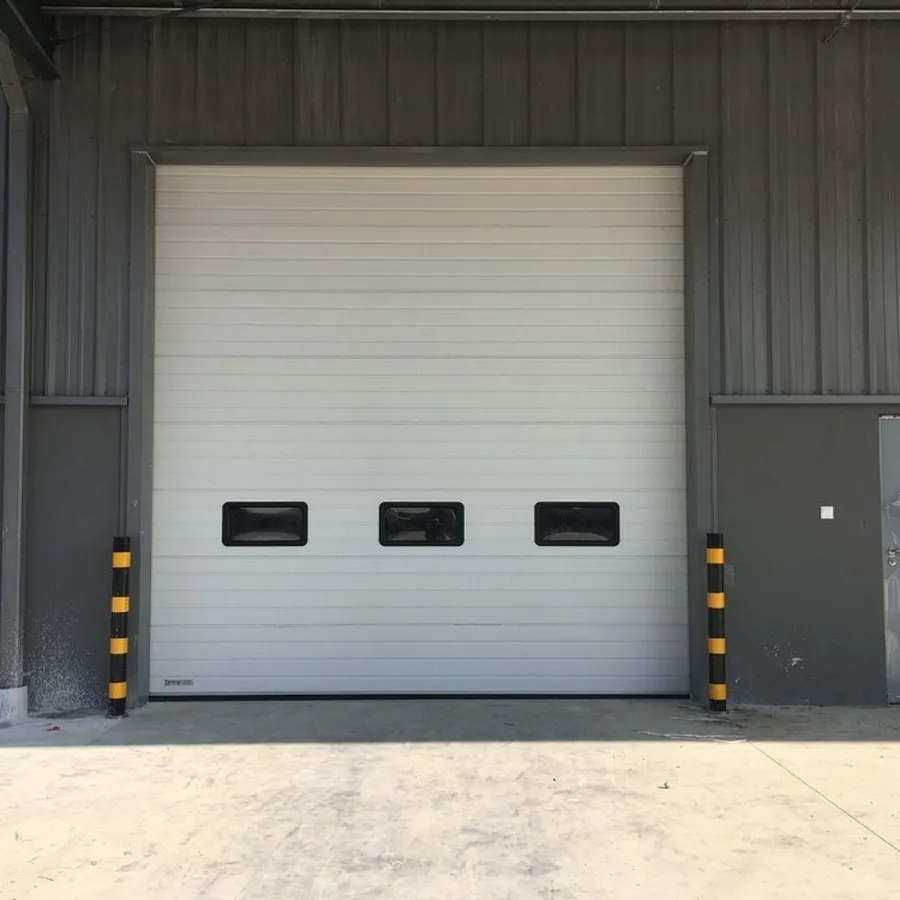

● Appearance: Double-layer galvanized steel with embossed design, durable and elegant.
● Thermal Insulation: High-density polyurethane layer sandwiched inside for excellent energy saving.

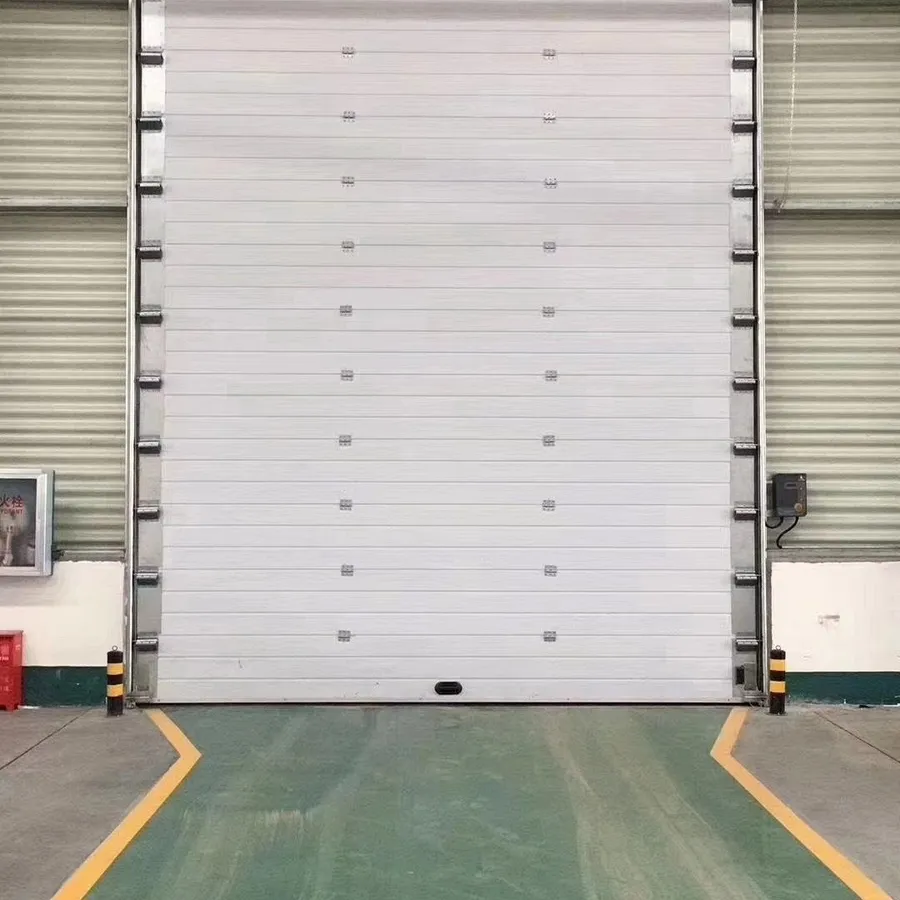

● Noise Isolation: Equipped with adjustable ball bearings and wear-resistant rubber wheels for silent operation.
● Wind Resistance: Designed with external reinforcement ribs; resists level 10 wind force.
● Safety Device: Includes anti-fall devices, airbags, and spring breakage safety mechanisms.
| Parameter Item | Specification Details |
|---|---|
| Door Panel Thickness | 40mm (Standard Wind Pressure 450N/m2) |
| U Value Index | 0.84W/m2ºC (Panel) / 0.4 W/m2ºC (Between panels) |
| Torsion Spring | 82b material with heat treatment; Anti-breaking device included |
| Track Material | 2mm Thick Galvanized Steel Plate (Baosteel) |
| Airtightness | 2.5m3/m2/H (Under 50 Pa Pressure) |
| Operating Noise | ≤60DB |
| Optional Window | 2-10 Windows (3mm Plexiglass) |
PUSH-BUTTON Outside/Inside wall mounted control.
PULL-CORD Operate the door without leaving the vehicle.
REMOTE Flexible wireless control (one-to-many/many-to-one).
GEOMAGNETIC Detects vehicles/pallets to automate traffic flow.
RADAR/PHOTOELECTRIC Automatic sensing for moving objects.
MOBILE Remote control via communication devices.
