| Model NO. | SGD-120 | Material | Steel |
| Thickness | 40mm | Opening Style | Rolling |
| Opening Type | Power Driven | Door Panel Pattern | Square |
| Color | White | Surface Finishing | Finished |
| Certificate | CE | Style | Modern; Industrial |
| Open Style | Automatic Control | Advantage | High Security, Heat Preservation |

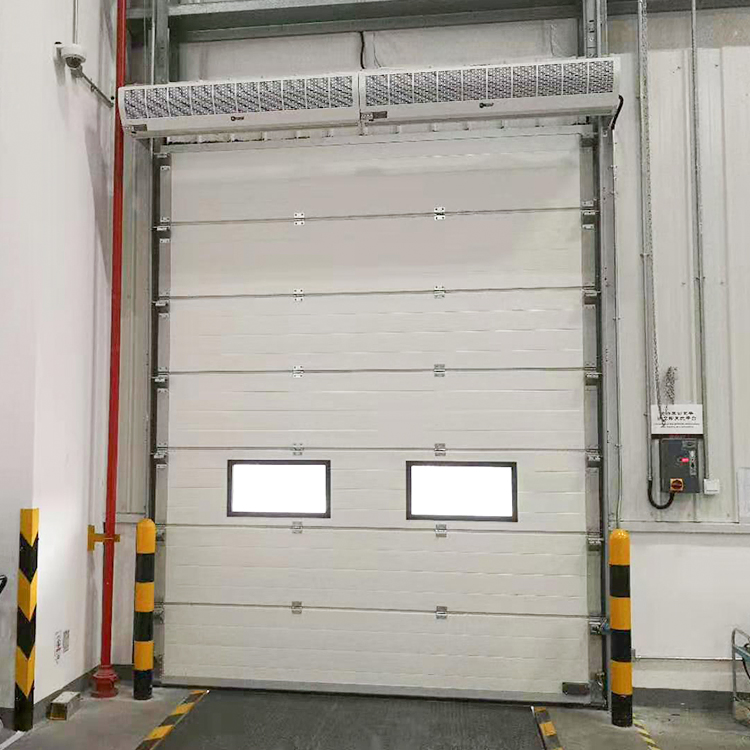

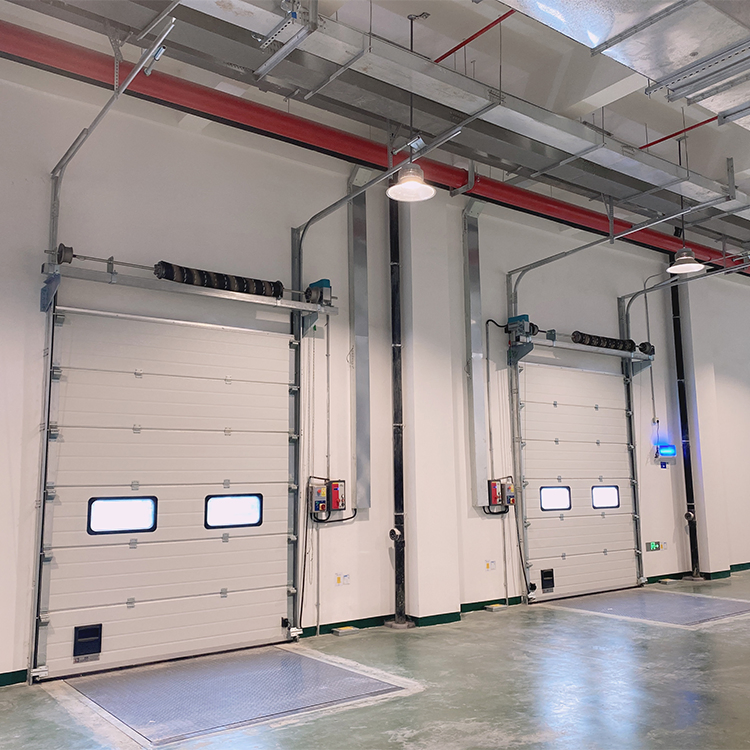

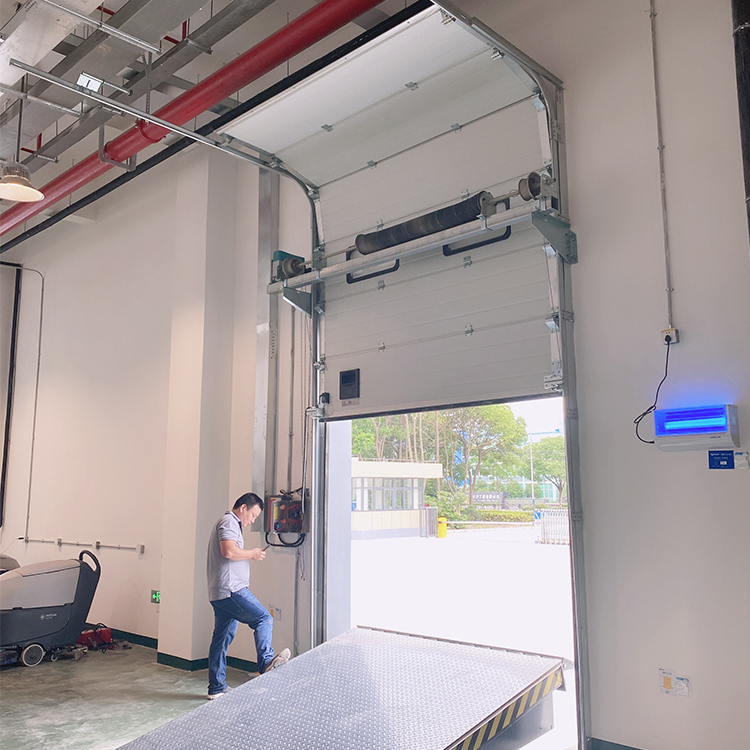

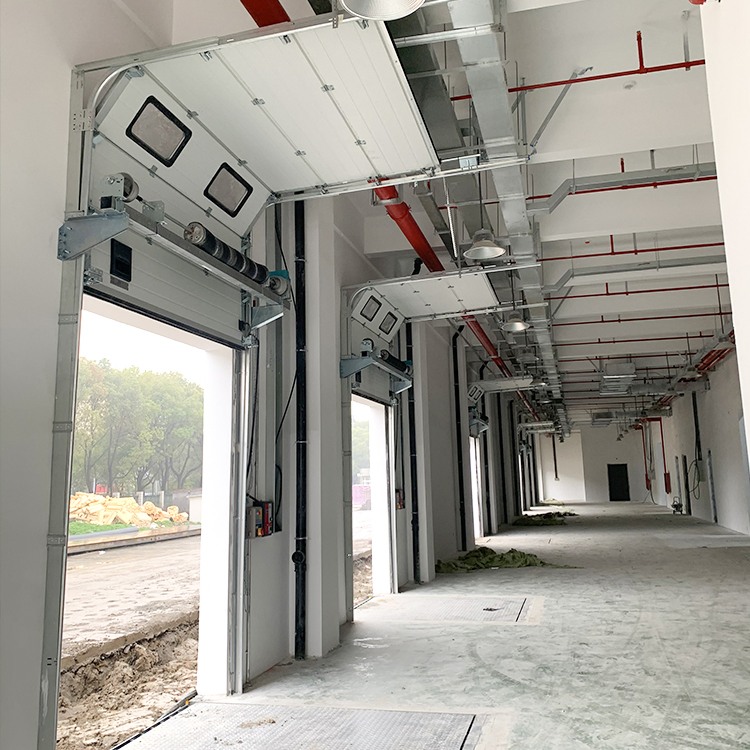

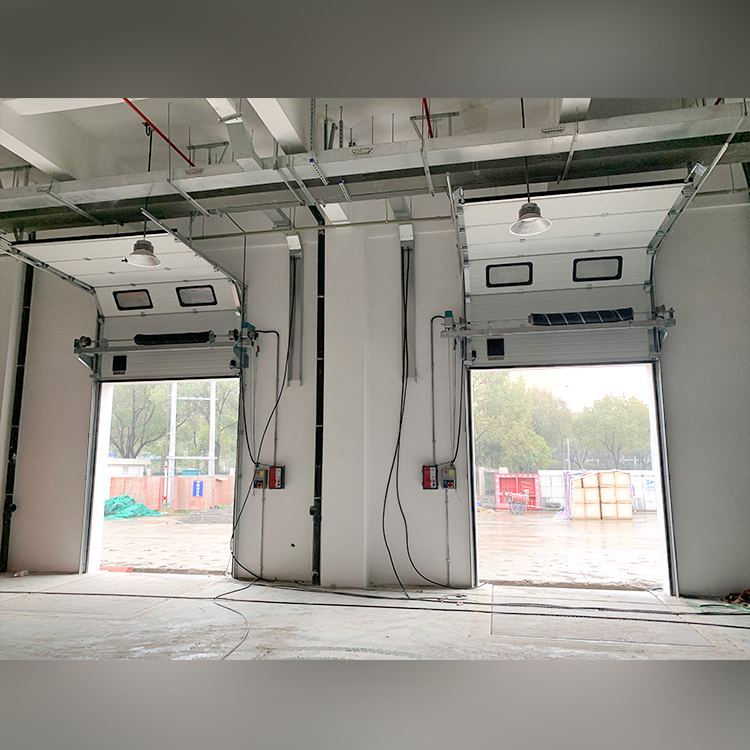

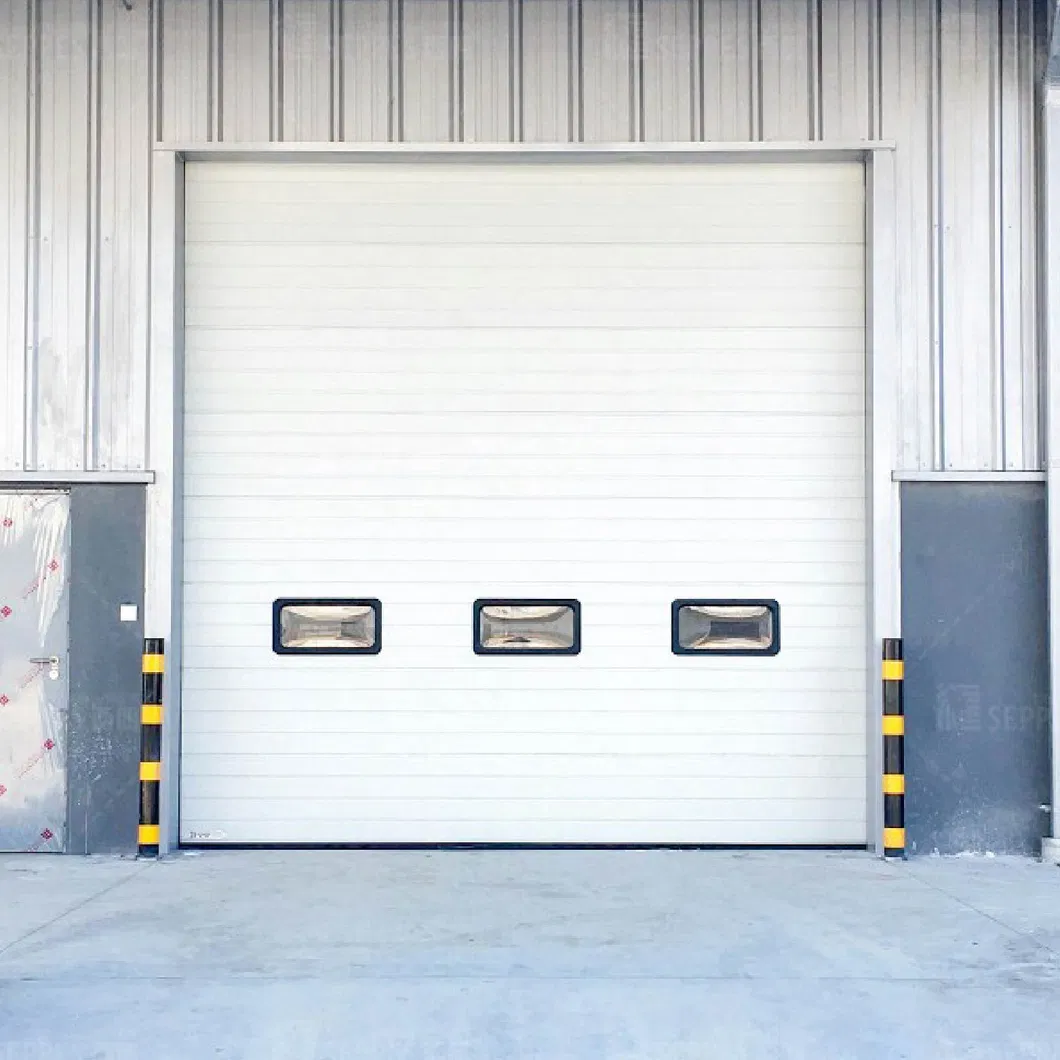

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.

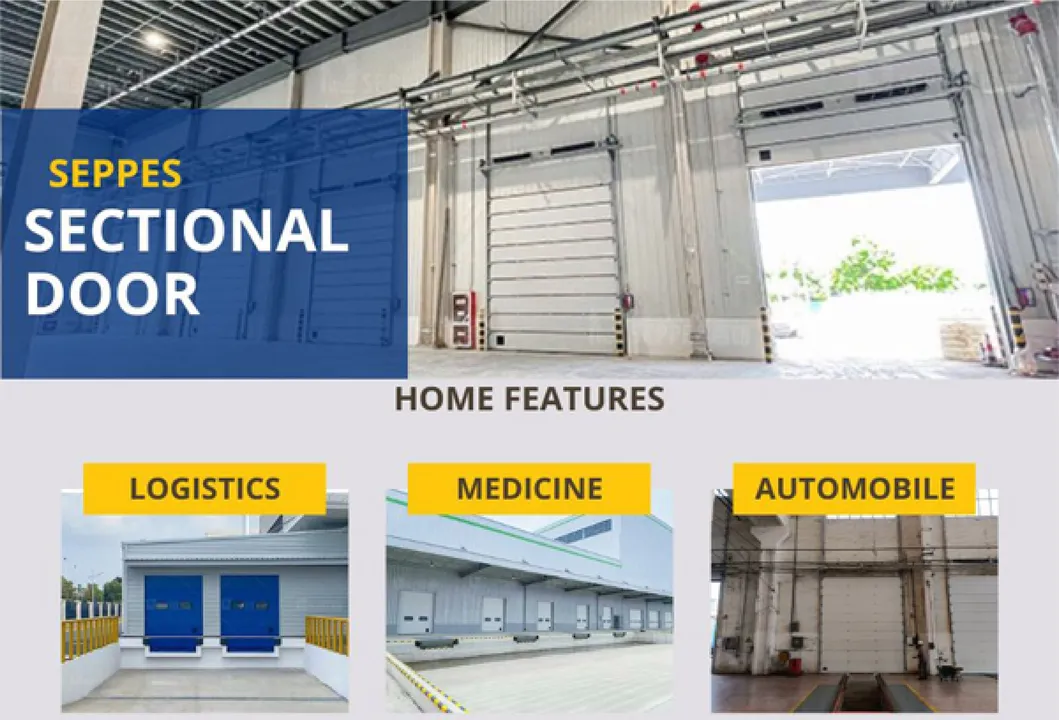

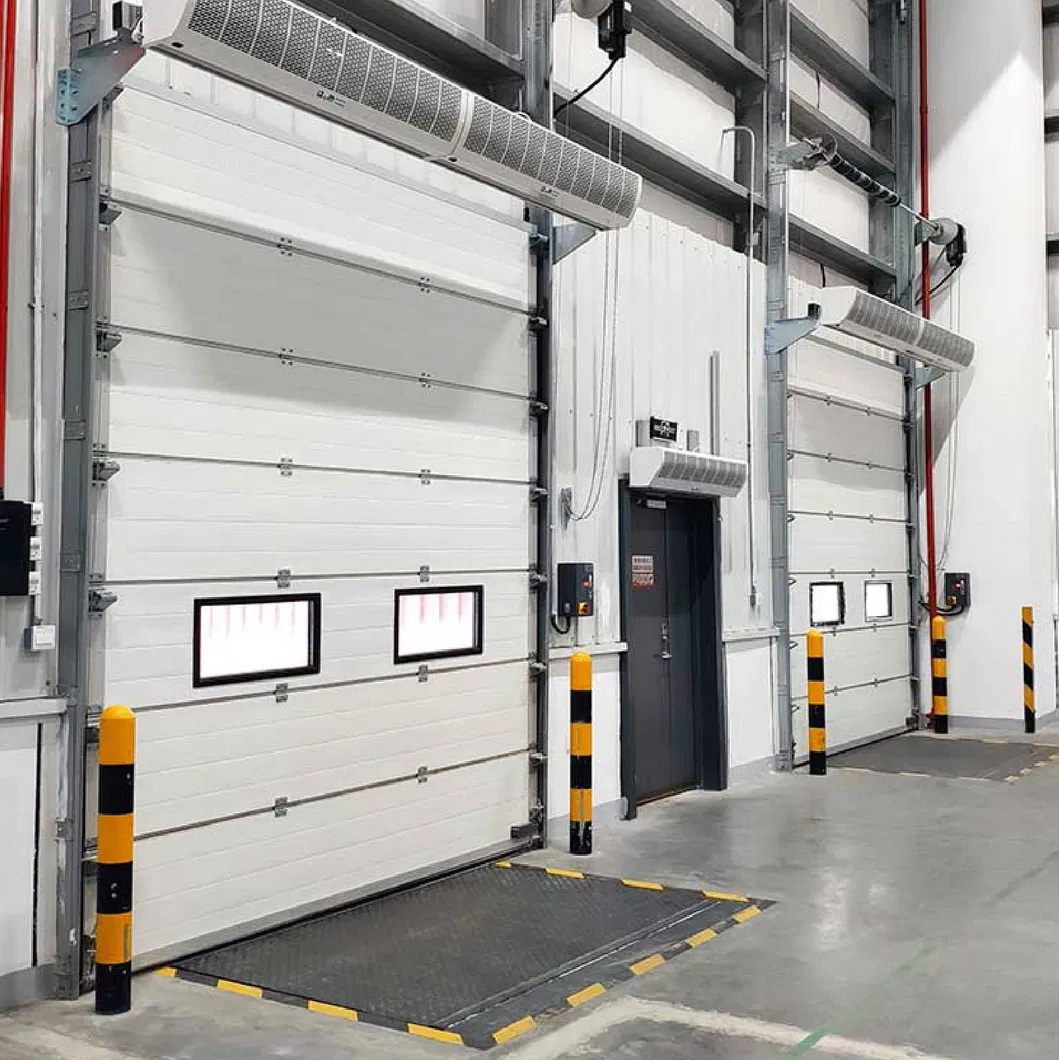

Factory gate + Equipment room + Warehouse
| Speed | 0.2-0.3m / s |
| Thickness of panel | 40 mm |

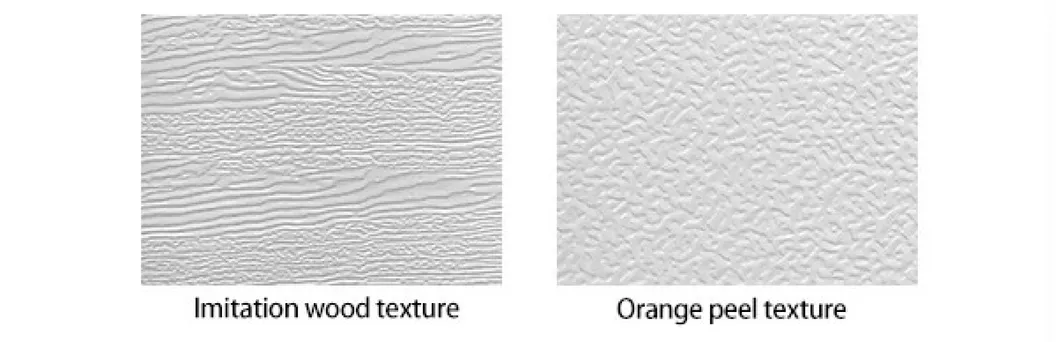

| Color Options | yellow, red, blue, white, grey |
| Motor | German FROG PUPIL |
| Safety Protection | Anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion Spring | ≥30,000 times |
| Foam Material | High-density Japan Tosoh polyurethane foaming material (48kg ± 2kg / m³) |
| Sound Insulation | 24dB |
| Wind Loading | 4*4 Newton 700 / m2 |

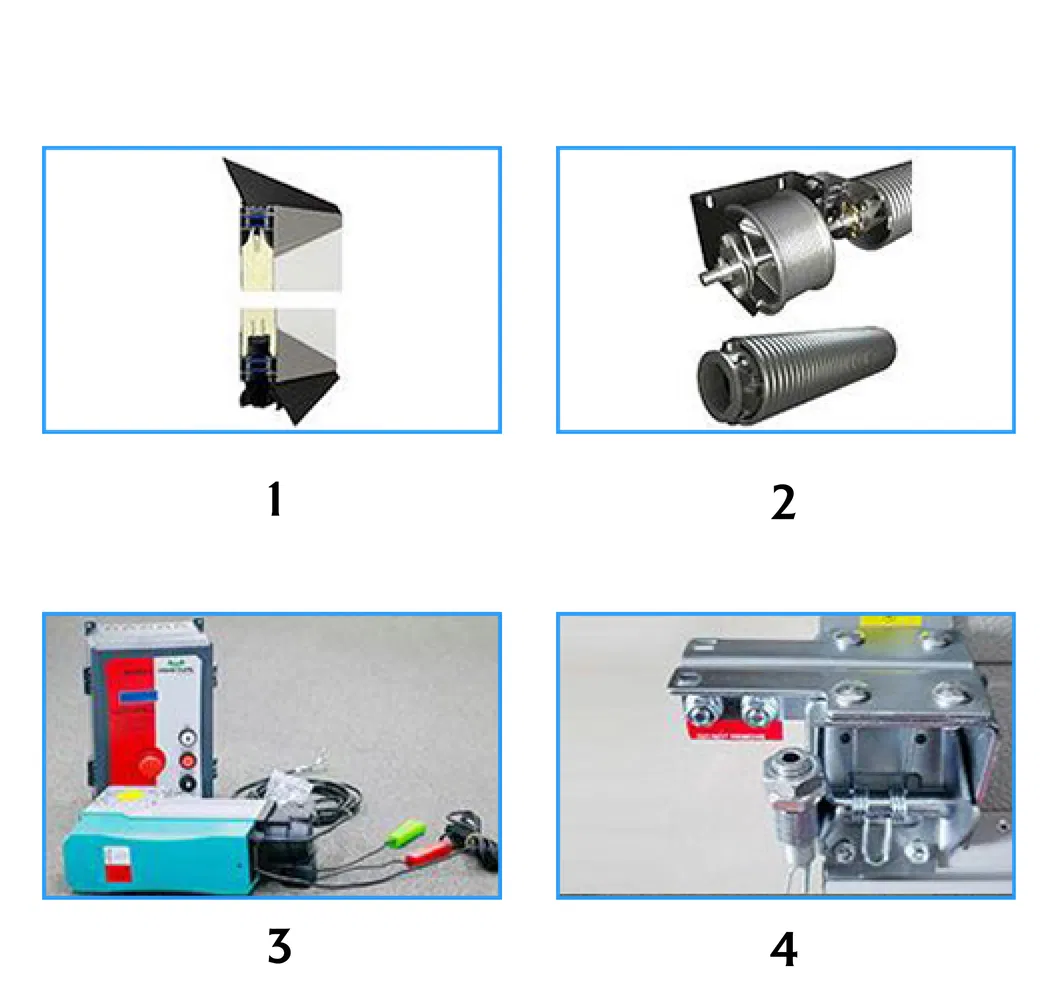

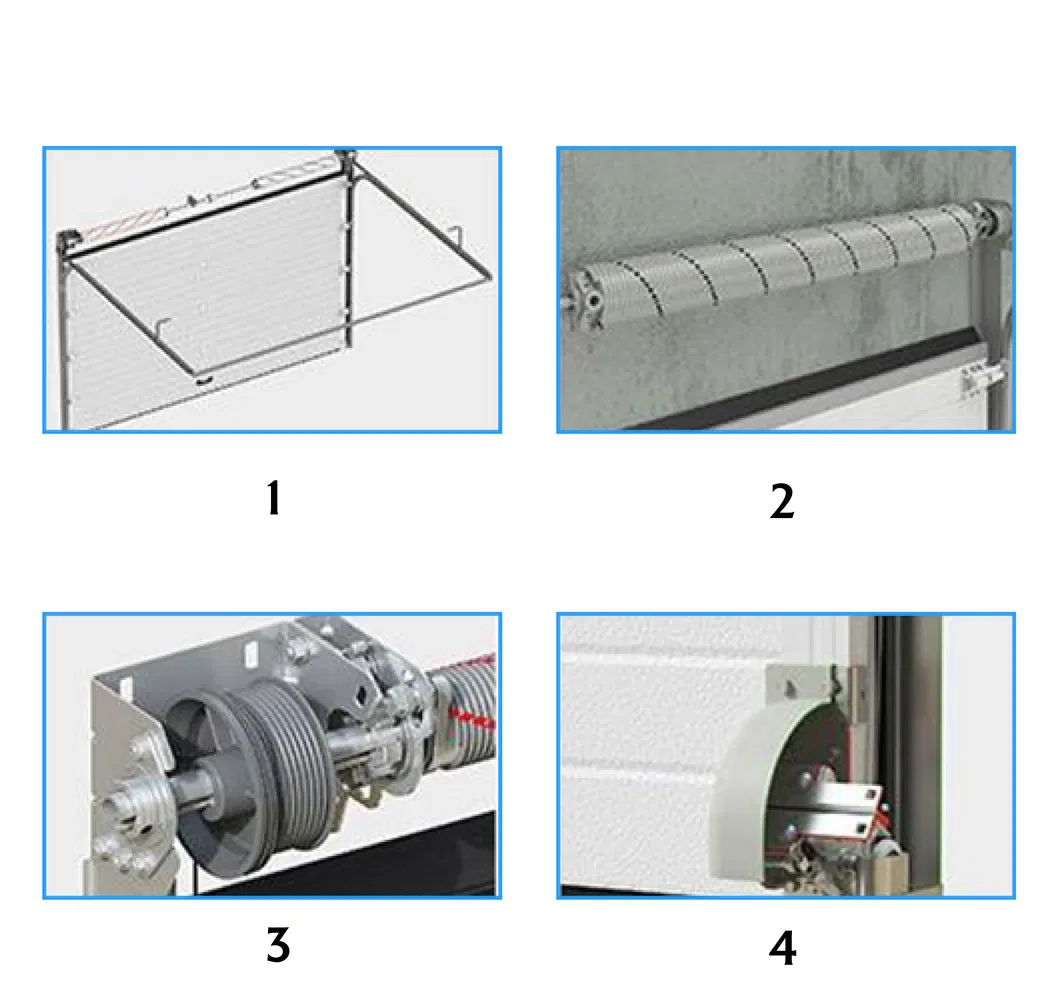

Equipped with EPDM sealing tapes and bottom seals. Interface sealing rubber cuts off heat transfer and reduces energy loss.
High-quality spring steel with anti-corrosion treatment. Designed for 30,000 to 100,000 cycles for smooth operation.
Frequency conversion intelligent control, slow start and stop. Supports interlock linkage and remote communication.
Anti-break protection locks the door body within 20cm if the torsion spring breaks accidentally.

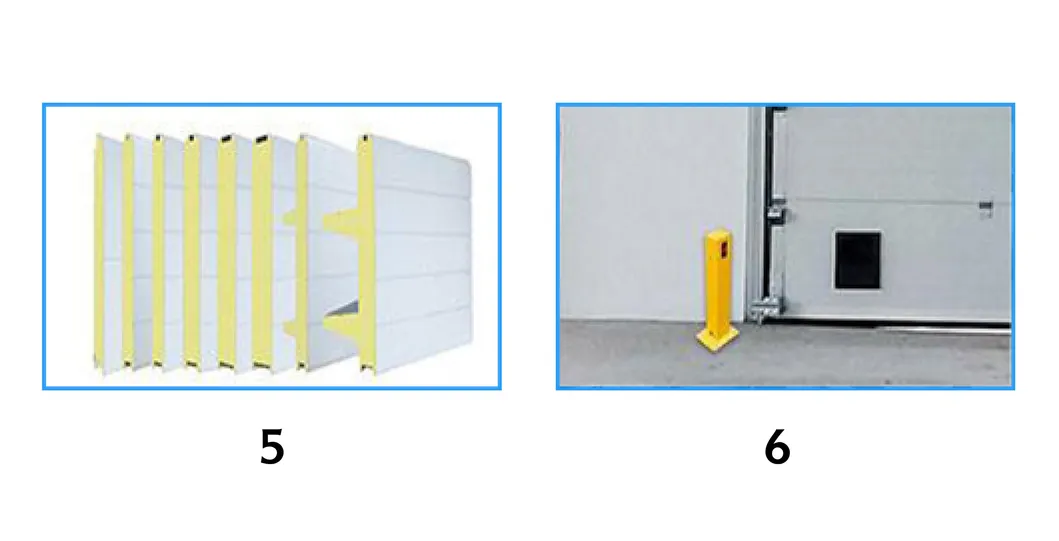

Various thicknesses (40-120mm) filled with polyurethane foam. High impact resistance and thermal insulation.

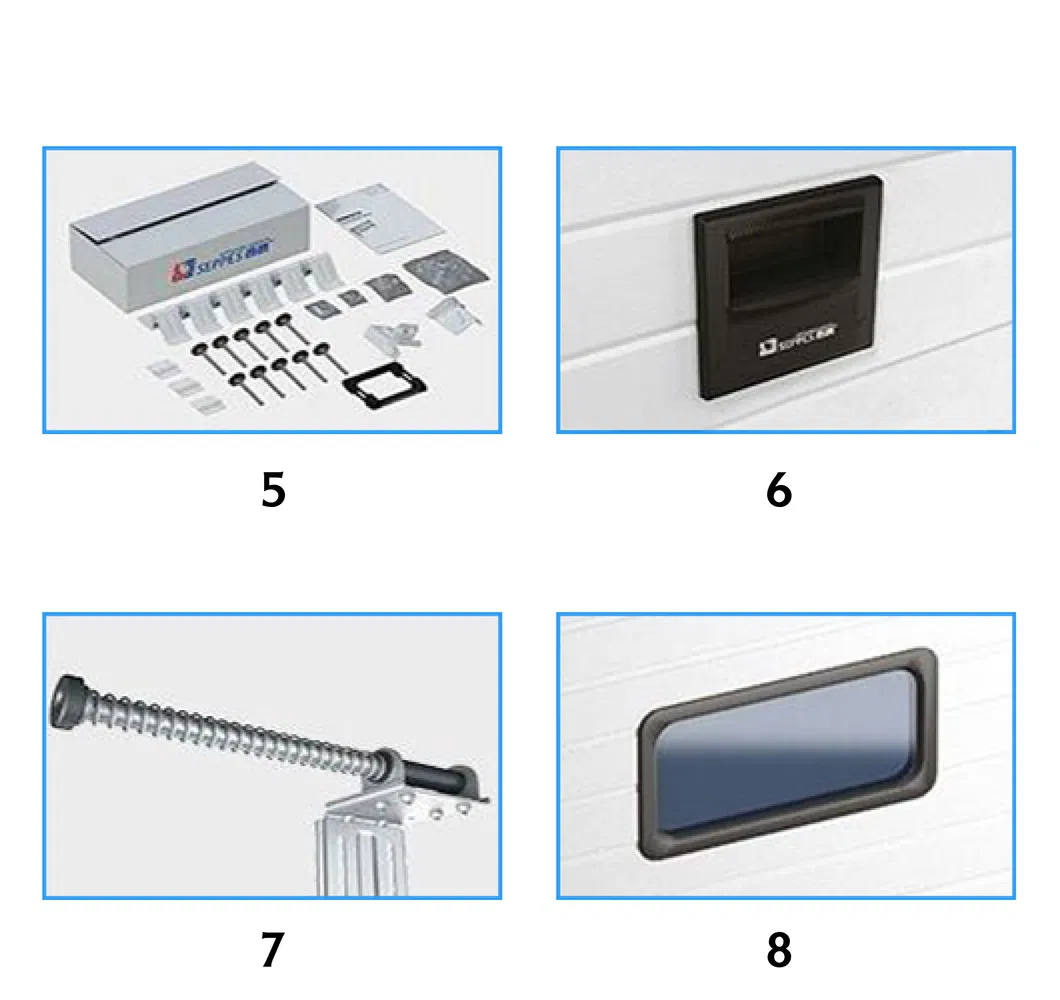

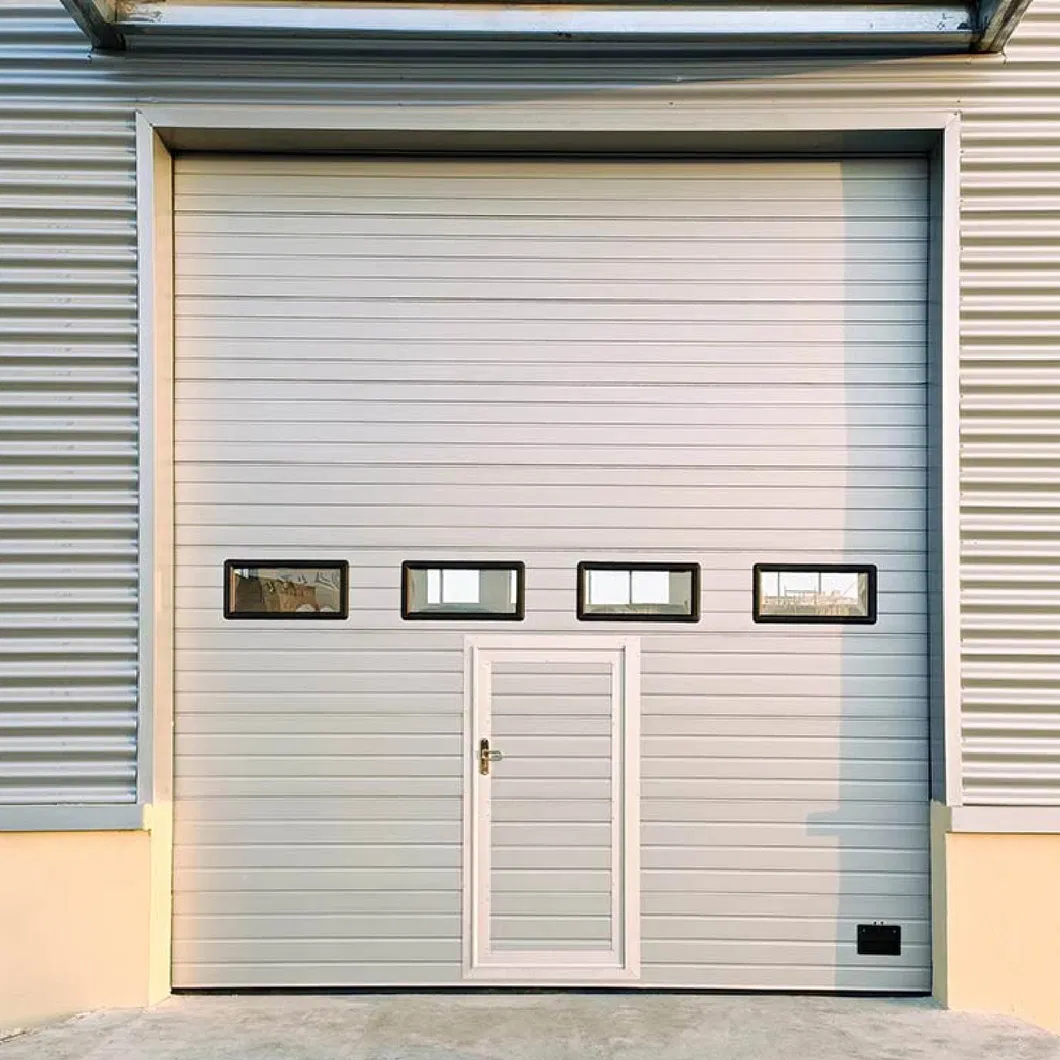

Optional windows, door-in-door, non-threshold small doors, and various induction opening devices.

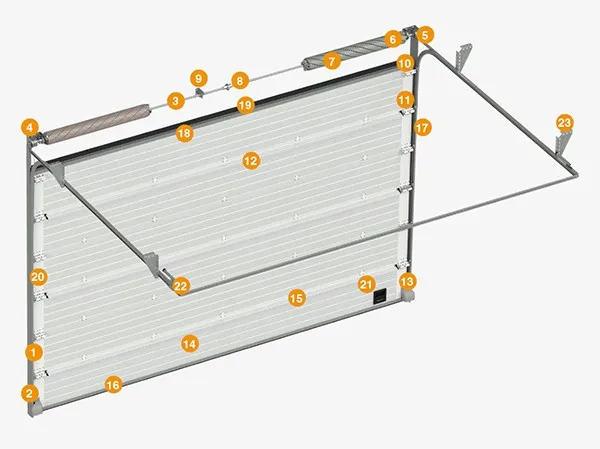

1. Vertical guide rail | 2. Vertical side frame | 3. Door shaft | 4. Torsion spring protection | 5. Sheave | 6. Spring sleeve | 7. Balance mechanism | 8. Coupling | 9. Inner bracket | 10. Top roller bracket | 11. Roller bracket | 12. Back muscles | 13. Wire rope protection | 14. Sandwich panel | 15. Inner hinge | 16. Bottom seal | 17. Side seal | 18. Aluminum profile | 23. Mounting bracket

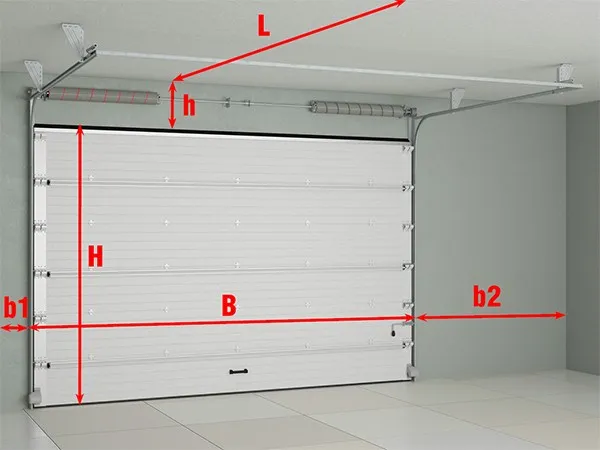

Measurement Guide (Indoor):
Note: For H and B, take the maximum value; for h, b1, b2 and L, take the smallest value.
